6450834 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

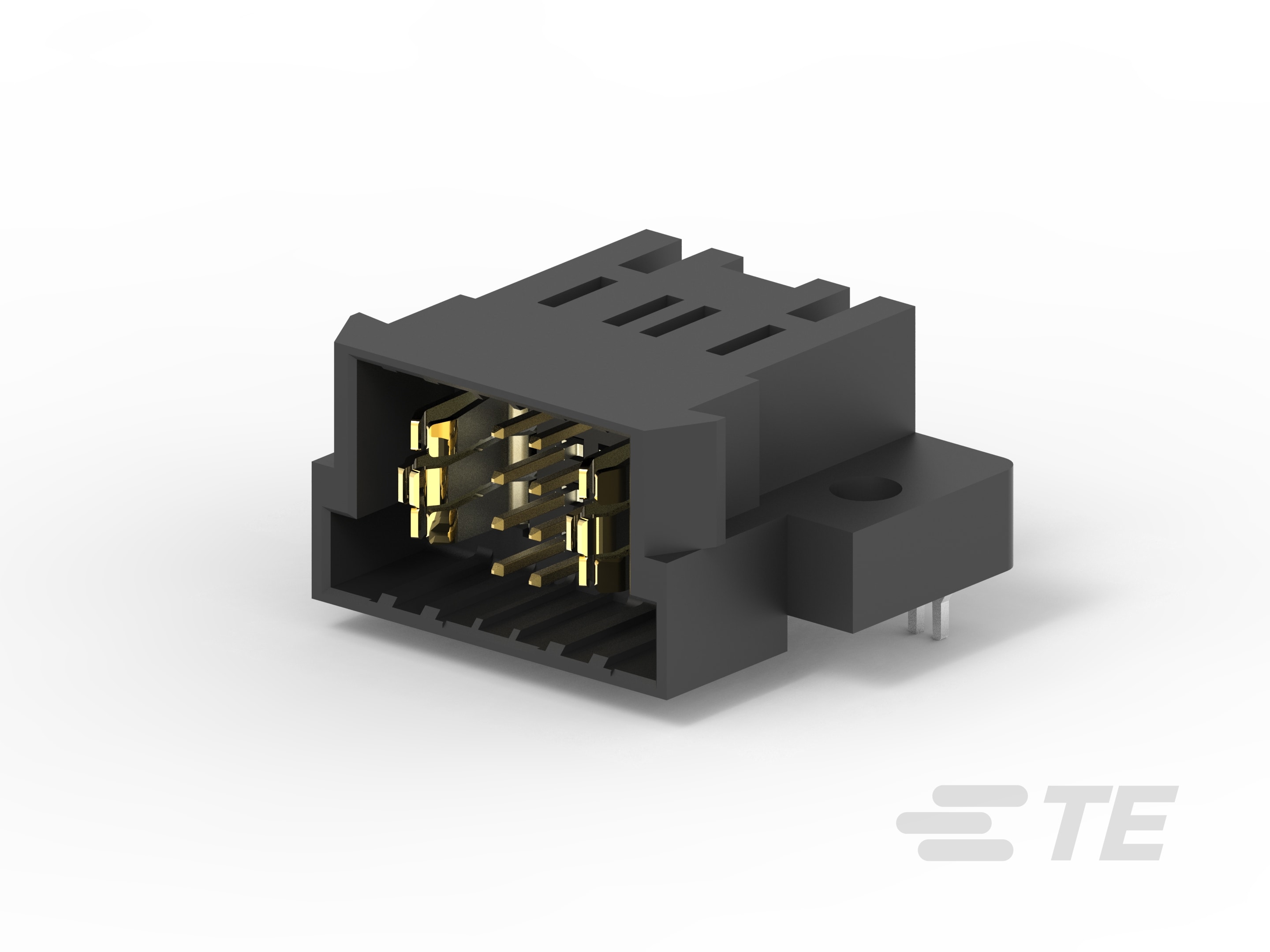

MBXL R/A HDR STR 1P/8S/1P
| Part | Number of Rows | Number of Positions Loaded | Pitch | Features | Connector Style | Termination | Number of Positions | Connector Type | Contact Finish | Power Contacts (Typical) | Signal Contacts (Typical) | Color | Mounting Type | Contact Finish Thickness | Operating Temperature (Max) | Operating Temperature (Min) | Voltage Rating | Material Flammability Rating | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 4 | All | 0.1 in | Board Lock | Multi-Beam | Solder | 10 | Blades Header Male Pins | Gold | 2 | 8 | Black | Through Hole | 30 µin | 125 °C | -40 °C | 60 V | UL94 V-0 | 50 A |
