52963 Series

Catalog

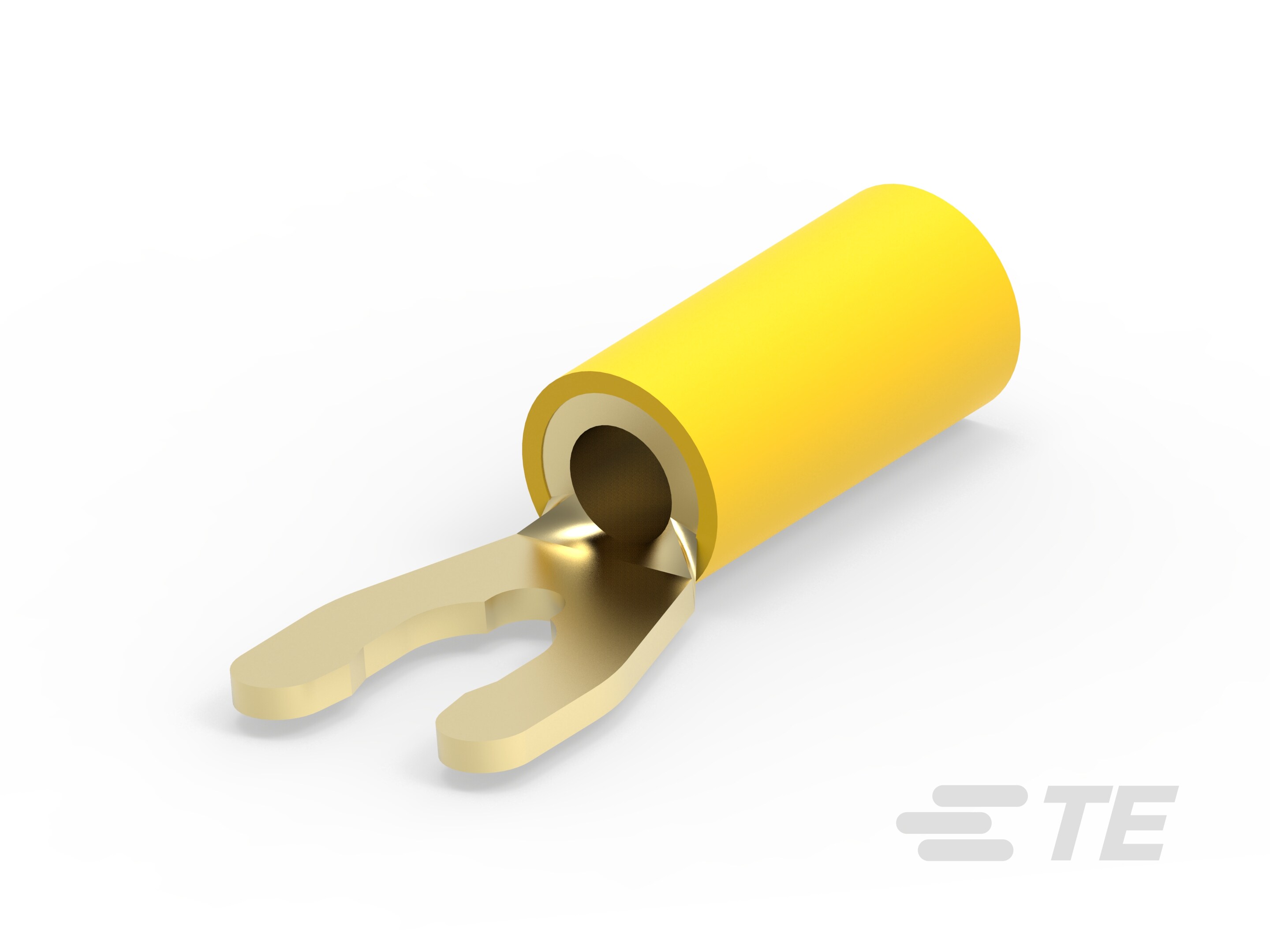

TERMINAL,PG SPR SPD 12-10 10 ROHS COMPLIANT: YES

Part	Width - Outer Edges	Termination	Color	Features	Terminal Type	Contact Material	Contact Finish	Mounting Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Stud/Tab Size	Length - Overall	Insulation	Length - Termination	Insulation Diameter (Max)	Insulation Diameter (Min)	Material - Insulation	Tongue Inside Opening	Length - Ring Center to Termination
TE Connectivity AMP Connectors 52963-4	0.406 in	Crimp	Yellow	Serrated Termination	Snap Spring	Brass	Tin	Free Hanging (In-Line)	12 AWG	10 AWG	10 Stud	1.159 in	Insulated	0.66 in	0.3 in	0.25 in	Poly-Vinyl Chloride PVC	0.19 in	0.276 in
TE Connectivity AMP Connectors 52963-2	0.406 in	Crimp	Yellow	Serrated Termination	Snap Spring	Brass	Tin	Free Hanging (In-Line)	12 AWG	10 AWG	10 Stud	1.1 in	Insulated	0.601 in	0.25 in	0.15 in	Poly-Vinyl Chloride PVC	0.19 in	0.276 in
TE Connectivity AMP Connectors 52963-5	0.406 in	Crimp	Yellow	Serrated Termination	Snap Spring	Brass	Tin	Free Hanging (In-Line)	12 AWG	10 AWG	10 Stud	1.159 in	Insulated	0.66 in	0.3 in	0.25 in	Poly-Vinyl Chloride PVC	0.19 in	0.276 in
TE Connectivity AMP Connectors 52963-1	0.406 in	Crimp	Yellow	Serrated Termination	Snap Spring	Brass	Tin	Free Hanging (In-Line)	12 AWG	10 AWG	10 Stud	1.1 in	Insulated	0.601 in	0.2 in	0.105 in	Poly-Vinyl Chloride PVC	0.19 in	0.276 in
