MA7RAP Series

Catalog

12 POSITION 90 ROTATABLE RECEPTA

Part	Type	Shell Size - Insert	Contact Shape	Insert Material	Fastening Type	Material Flammability Rating	Contact Size	Mounting Type	Housing Color	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Orientation	Shielding	Features	Shell Finish	Mounting Feature	Contact Type	Note	Shell Material	Number of Positions	Ingress Protection Description	Ingress Protection IP Rating	Primary Material	Current Rating	Color	Voltage Rating	Voltage Rating (Type)	Contact Finish - Mating	Termination
McGill Microwave Systems MA7RAP1202	For Female Sockets or Male Pins	M23-12	Circular	Nylon 6/6 PA66 Polyamide	Push-Twist	UL94 V-0	1 mm	Panel Mount Right Angle	Silver	-20 °C	130 °C	Receptacle Housing	P	Shielded	Backshell Rotatable	Nickel	Flange	Crimp	Contacts Not Included	Zinc Die Cast	12	Dust Tight Waterproof	IP67
McGill Microwave Systems MA7RAP1702-KIT		M23-17			Threaded			Panel Mount Right Angle		-20 °C	130 °C	Male Pins Receptacle	P		Backshell Rotatable	Nickel	Flange			Zinc Die Cast	17	Dust Tight Waterproof	IP67	Metal	9 A	Silver	125 V	DC	Gold	Crimp

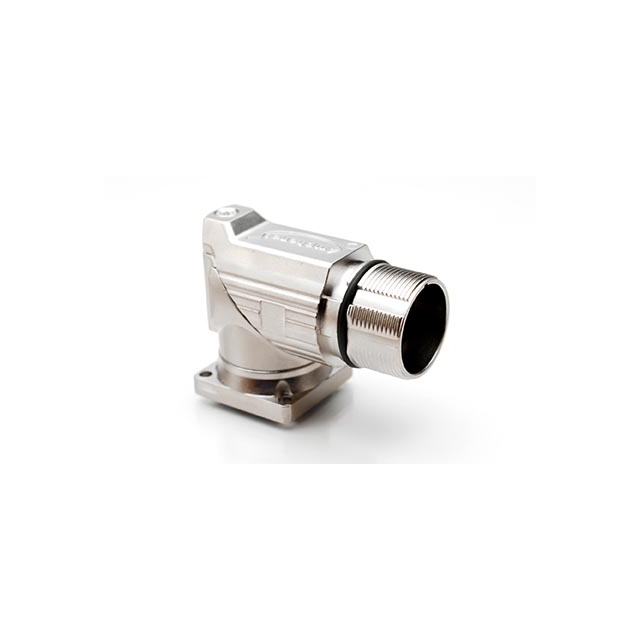

McGill Microwave Systems MA7RAP1702	For Female Sockets or Male Pins	M23-17	Circular	Nylon 6/6 PA66 Polyamide	Push-Twist	UL94 V-0	1 mm	Panel Mount Right Angle	Silver	-20 °C	130 °C	Receptacle Housing	P	Shielded	Backshell Rotatable	Nickel	Flange	Crimp	Contacts Not Included	Zinc Die Cast	17	Dust Tight Waterproof	IP67

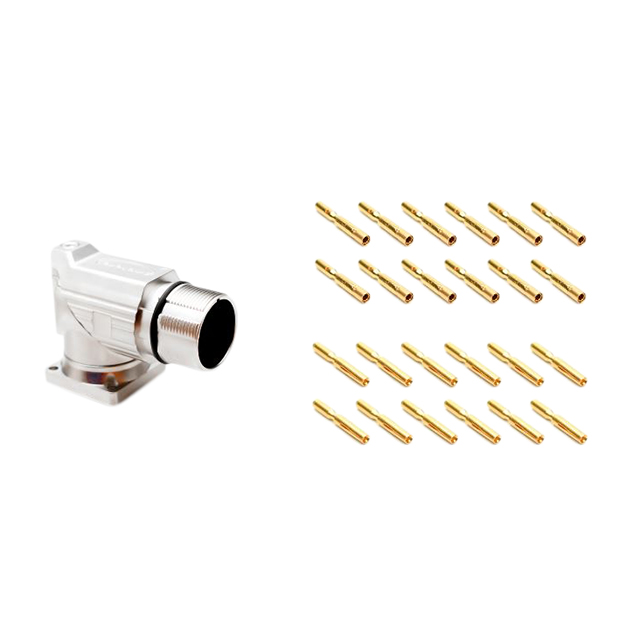

McGill Microwave Systems MA7RAP1202S-KIT		M23-12			Threaded			Panel Mount Right Angle		-20 °C	130 °C	Female Sockets Receptacle	N (Normal)		Backshell Rotatable	Nickel	Flange			Zinc Die Cast	12	Dust Tight Waterproof	IP67	Metal	10 A	Silver	160 V		Gold	Crimp
McGill Microwave Systems MA7RAP1201	For Female Sockets or Male Pins	M23-12	Circular	Nylon 6/6 PA66 Polyamide	Threaded	UL94 V-0	1 mm	Panel Mount Right Angle	Silver	-20 °C	130 °C	Receptacle Housing	N (Normal)	Shielded	Backshell Rotatable	Nickel	Flange	Crimp	Contacts Not Included	Zinc Die Cast	12	Dust Tight Waterproof	IP67
McGill Microwave Systems MA7RAP1702S-KIT		M23-17			Threaded			Panel Mount Right Angle		-20 °C	130 °C	Female Sockets Receptacle	P		Backshell Rotatable	Nickel	Flange			Zinc Die Cast	17	Dust Tight Waterproof	IP67	Metal	9 A	Silver	125 V	DC	Gold	Crimp
McGill Microwave Systems MA7RAP1601	For Female Sockets or Male Pins	M23-16	Circular	Nylon 6/6 PA66 Polyamide	Threaded	UL94 V-0	1 mm	Panel Mount Right Angle	Silver	-20 °C	130 °C	Receptacle Housing	P	Shielded	Backshell Rotatable	Nickel	Flange	Crimp	Contacts Not Included	Zinc Die Cast	16	Dust Tight Waterproof	IP67

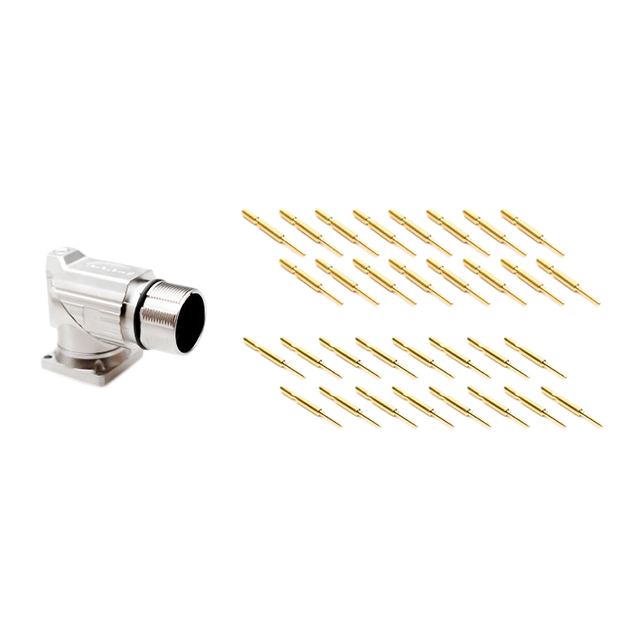

McGill Microwave Systems MA7RAP1602-KIT		M23-16			Threaded			Panel Mount Right Angle		-20 °C	130 °C	Male Pins Receptacle	P		Backshell Rotatable	Nickel	Flange			Zinc Die Cast	16	Dust Tight Waterproof	IP67	Metal	9 A	Silver	125 V	DC	Gold	Crimp
McGill Microwave Systems MA7RAP1602S-KIT		M23-16			Threaded			Panel Mount Right Angle		-20 °C	130 °C	Female Sockets Receptacle	P		Backshell Rotatable	Nickel	Flange			Zinc Die Cast	16	Dust Tight Waterproof	IP67	Metal	9 A	Silver	125 V	DC	Gold	Crimp
McGill Microwave Systems MA7RAP1601S-KIT		M23-16			Threaded			Panel Mount Right Angle		-20 °C	130 °C	Female Sockets Receptacle	P		Backshell Rotatable	Nickel	Flange			Zinc Die Cast	16	Dust Tight Waterproof	IP67	Metal	9 A	Silver	125 V	DC	Gold	Crimp
