SJS72 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

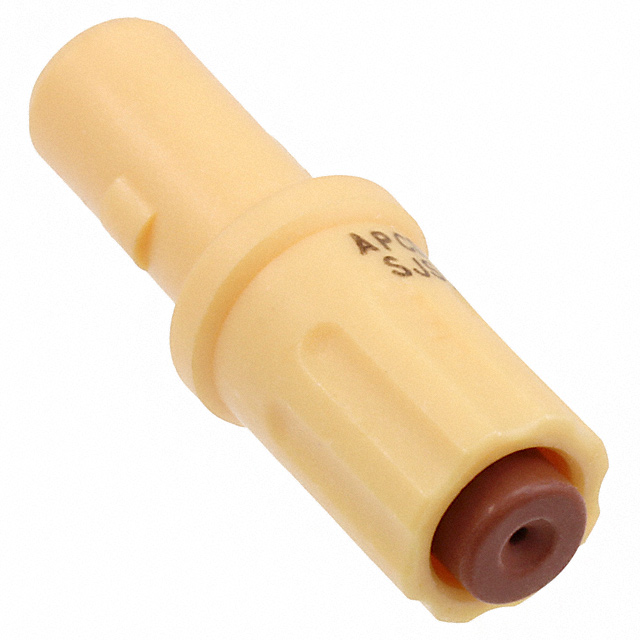

CIRCULAR CONNECTOR, MIL-T-81714 EQUIVALENT, SJS QUICKCONNECT SERIES, 1 CONTACTS
| Part | Note | Type | Shell Size - Insert | Mounting Type | Housing Color | Material Flammability Rating | Contact Type | Fastening Type | Contact Shape | Operating Temperature (Min) | Operating Temperature (Max) | Ingress Protection Description | Ingress Protection IP Rating | Number of Positions | Contact Size | Shielding | Shell Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Contacts Not Included | For Female Sockets | 6 | Free Hanging (In-Line) | Yellow | UL94 V-0 | Crimp | Detent Lock | Circular | -55 °C | 95 °C | Dust Tight Waterproof | IP67 | 1 | 20 | Unshielded | Nylon 6/6 Polyamide (PA66) | Plug Housing |
