MC1JJN Series

Catalog

6 POSITION RECEPTACLE EXTENSION

Part	Mounting Type	Shell Size - Insert	Contact Shape	Contact Size	Housing Color	Note	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Contact Type	Shell Finish	Type	Orientation	Fastening Type	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Shell Material	Features	Insert Material	Number of Positions (Normal)	Number of Positions (Power)	Number of Positions (Total)	Material Flammability Rating
McGill Microwave Systems MC1JJN0601	Free Hanging (In-Line)	M40-6	Circular	2 mm 3.6 mm	Silver	Contacts Not Included	Dust Tight Waterproof	IP67	Shielded	Crimp	Nickel	For Male Pins	Keyed	Threaded	Receptacle Housing	-20 °C	130 °C	Zinc Die Cast	Coupling Nut	PBT Polybutylene Terephthalate	2	4	6	UL94 V-0

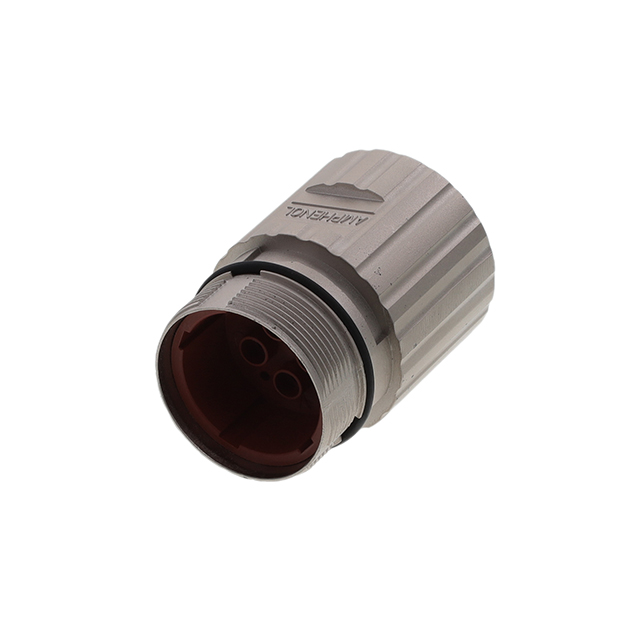

McGill Microwave Systems MC1JJN0600	Free Hanging (In-Line)	M40-6	Circular	2 mm 3.6 mm	Silver	Contacts Not Included	Dust Tight Waterproof	IP67	Shielded	Crimp	Nickel	For Male Pins	Keyed	Threaded	Receptacle Housing	-20 °C	130 °C	Zinc Die Cast		Nylon 6/6 PA66 Polyamide	2	4	6	UL94 V-0
