3008W8S Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

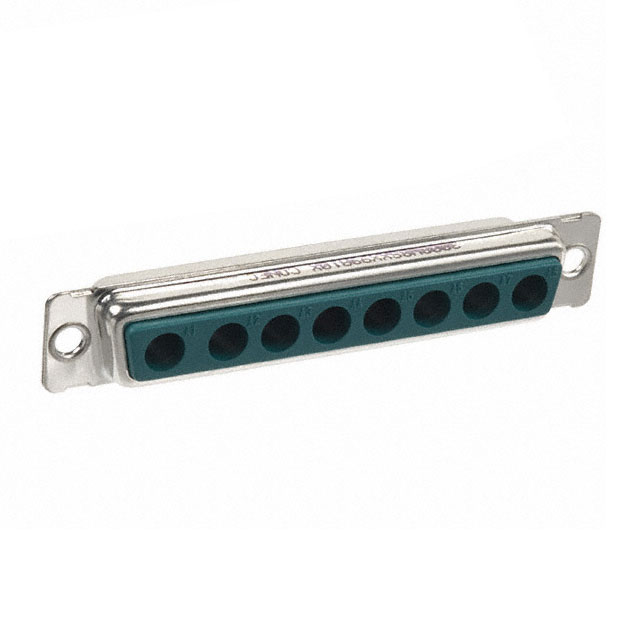

D SUB HOUSING, RCPT, 8POS, DC-8W8 ROHS COMPLIANT: YES
| Part | Color | Dielectric Material | Note | Operating Temperature (Max) | Operating Temperature (Min) | Connector Style | Contact Type | Mounting Type | Ingress Protection | Number of Rows | Connector Type | Number of Positions | Position Types | Flange Feature | Shell Size | Connector Layout | Part Code | Shell Finish Thickness | Finish | Shell Material | Contact Material | Voltage Rating | Features | Current Rating | Material Flammability Rating | Contact Finish | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Green | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Contacts Not Included | 125 °C | -55 °C | Combo D-Sub | Coax Coax or Power Power | Free Hanging (In-Line) | IP20 | 1 | Receptacle for Female Contacts | 8 | Coax Power | Housing Shell (Unthreaded) | 4 | C DC | 8W8 | 320 µin | Tin Plated | Steel | |||||||
 McGill Microwave Systems | Female Sockets Receptacle | ||||||||||||||||||||||||||
McGill Microwave Systems | Green | Glass Filled Polybutylene Terephthalate (PBT) | 125 °C | -55 °C | Combo D-Sub | Power | 1 | Female Sockets Receptacle | 8 | Power | 4 | C DC | 8W8 | Tin Plated | Steel | Copper Alloy | 250 V | Board Lock | 20 A | UL94 V-0 | Gold | ||||||
McGill Microwave Systems | Green | Glass Filled Polybutylene Terephthalate (PBT) | Combo D-Sub | Power | Through Hole | IP20 | 1 | Receptacle for Female Contacts | 8 | Power | Board Side (4-40) | 4 | C DC | 8W8 | 315 µin | Tin-Nickel Plated | Steel | 500 cycles | |||||||||
McGill Microwave Systems | Green | Glass Filled Polybutylene Terephthalate (PBT) | Combo D-Sub | Power | Right Angle Through Hole | IP20 | 1 | Receptacle for Female Contacts | 8 | Power | Mating Side (4-40) | 4 | C DC | 8W8 | 315 µin | Tin-Nickel Plated | Steel | Mounting Brackets | 500 cycles | ||||||||
McGill Microwave Systems | Receptacle for Female Contacts | 4 | C DC | 8W8 | |||||||||||||||||||||||
McGill Microwave Systems | Female Sockets Receptacle |
