MCP47CVB22 Series
Manufacturer: Microchip Technology
Beta
⌘K
DA CONVERTER, 12BIT, MSOP-10 ROHS COMPLIANT: YES
| Part | Mounting Type | Voltage - Supply, Digital (Max) | Voltage - Supply, Digital (Min) | Data Interface | Architecture | INL (LSB) Tolerance | DNL (LSB) Tolerance | Package Name | Output Type | Number of Bits | Reference Type | Number of D/A Converters | Operating Temperature (Max) | Operating Temperature (Min) | Package Length | Package Width | Voltage - Supply, Analog (Min) | Voltage - Supply, Analog (Max) | Differential Output | Settling Time (Typical) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

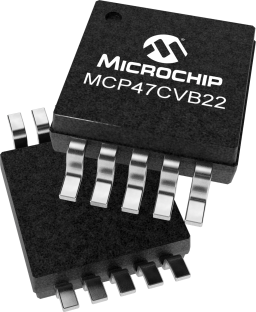

 Microchip Technology | Surface Mount | 5.5 V | 1.8 V | I2C | Current Source | 1 LSB | 1 LSB | 10-MSOP 10-TFSOP | Voltage - Buffered | 12 bits | External Internal | 2 count | 125 °C | -40 °C | 0.118 in | 3 mm | 1.8 V | 5.5 V | No | 16 µs | |
 Microchip Technology | Surface Mount | 5.5 V | 1.8 V | I2C | Current Source | 1 LSB | 1 LSB | 16-QFN | Voltage - Buffered | 12 bits | External Internal | 2 count | 125 °C | -40 °C | 3 mm | 3 mm | 1.8 V | 5.5 V | No | 16 µs | 16-VFQFN Exposed Pad |

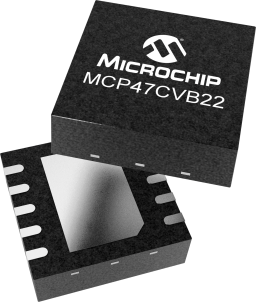

 Microchip Technology | Surface Mount | 5.5 V | 1.8 V | I2C | Current Source | 1 LSB | 1 LSB | 10-DFN | Voltage - Buffered | 12 bits | External Internal | 2 count | 125 °C | -40 °C | 3 mm | 3 mm | 1.8 V | 5.5 V | No | 16 µs | 10-VFDFN Exposed Pad |
