Q-3804X0 Series

Catalog

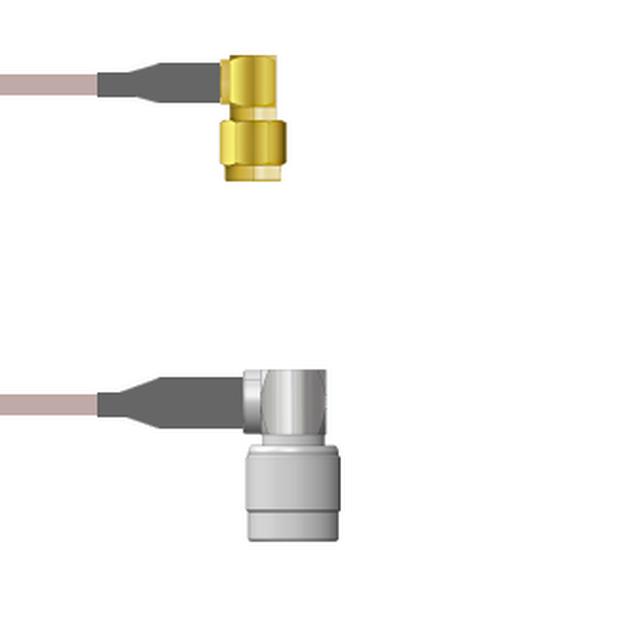

CBL ASSY SMA-TNC PLUG-PLUG 18"

Part	1st Connector	2nd Connector	1st Connector Mounting Type	1st Contact Gender	Cable Impedance	Length	2nd Contact Gender	2nd Connector Mounting Type	Color	Connector Impedance	Cable Type	Style	Overall Impedance	Features	Frequency - Max	Length (ft)
McGill Microwave Systems Q-3804X000H018I	Right Angle SMA Plug	Right Angle TNC Plug	Free Hanging (In-Line)	Male	50 Ohms	18 in	Male	Free Hanging (In-Line)	Copper	50 Ohms	142 RG	SMA TNC	50 Ohms	Shielded	11 GHz
McGill Microwave Systems Q-3804X000H003M	Right Angle SMA Plug	Right Angle TNC Plug	Free Hanging (In-Line)	Male	50 Ohms	118.1 in	Male	Free Hanging (In-Line)	Copper	50 Ohms	142 RG	SMA TNC	50 Ohms	Shielded	11 GHz
McGill Microwave Systems Q-3804X000H0.5M	Right Angle SMA Plug	Right Angle TNC Plug	Free Hanging (In-Line)	Male	50 Ohms	19.69 in	Male	Free Hanging (In-Line)	Copper	50 Ohms	142 RG	SMA TNC	50 Ohms	Shielded	11 GHz
McGill Microwave Systems Q-3804X000H1.5M	Right Angle SMA Plug	Right Angle TNC Plug	Free Hanging (In-Line)	Male	50 Ohms	59.1 in	Male	Free Hanging (In-Line)	Copper	50 Ohms	142 RG	SMA TNC	50 Ohms	Shielded	11 GHz	4.9 ft
McGill Microwave Systems Q-3804X000H084I	Right Angle SMA Plug	Right Angle TNC Plug	Free Hanging (In-Line)	Male	50 Ohms	84 in	Male	Free Hanging (In-Line)	Copper	50 Ohms	142 RG	SMA TNC	50 Ohms	Shielded	11 GHz	7 ft
McGill Microwave Systems Q-3804X000H001M	Right Angle SMA Plug	Right Angle TNC Plug	Free Hanging (In-Line)	Male	50 Ohms	39.4 in	Male	Free Hanging (In-Line)	Copper	50 Ohms	142 RG	SMA TNC	50 Ohms	Shielded	11 GHz
McGill Microwave Systems Q-3804X000H006I	Right Angle SMA Plug	Right Angle TNC Plug	Free Hanging (In-Line)	Male	50 Ohms	0.5 ft	Male	Free Hanging (In-Line)	Copper	50 Ohms	142 RG	SMA TNC	50 Ohms	Shielded	11 GHz
McGill Microwave Systems Q-3804X000H.75M	Right Angle SMA Plug	Right Angle TNC Plug	Free Hanging (In-Line)	Male	50 Ohms	29.53 in	Male	Free Hanging (In-Line)	Copper	50 Ohms	142 RG	SMA TNC	50 Ohms	Shielded	11 GHz
McGill Microwave Systems Q-3804X000H.25M	Right Angle SMA Plug	Right Angle TNC Plug	Free Hanging (In-Line)	Male	50 Ohms	9.843 in	Male	Free Hanging (In-Line)	Copper	50 Ohms	142 RG	SMA TNC	50 Ohms	Shielded	11 GHz
McGill Microwave Systems Q-3804X000H002M	Right Angle SMA Plug	Right Angle TNC Plug	Free Hanging (In-Line)	Male	50 Ohms		Male	Free Hanging (In-Line)	Copper	50 Ohms	142 RG	SMA TNC	50 Ohms	Shielded	11 GHz	6.6 ft
