42765 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

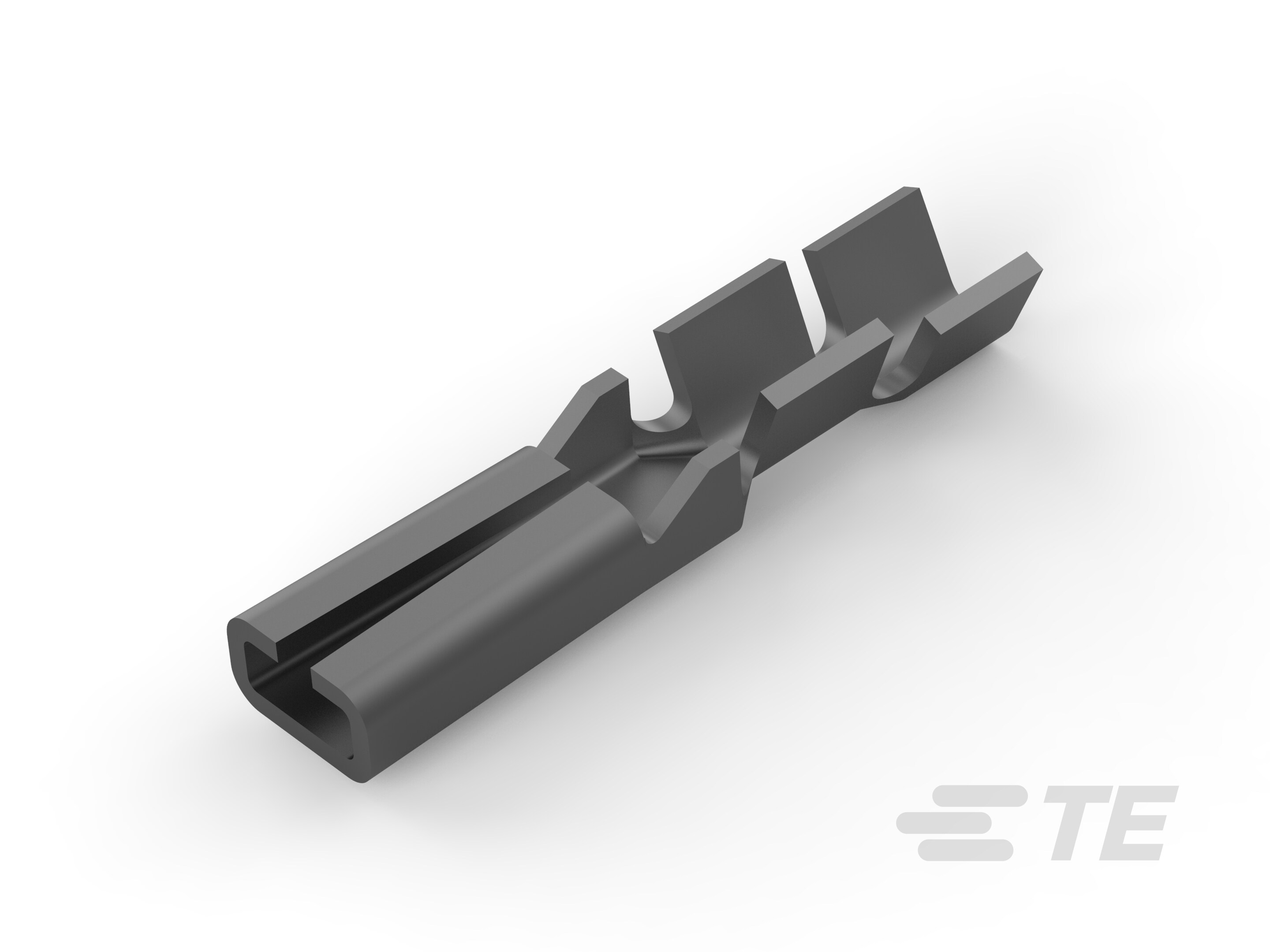

QUICK DISCONNECT TERMINAL, FEMALE QUICK DISCONNECT, 1.98MM X 0.58MM, 0.78" X 0.023", 24 AWG
| Part | Tab Length | Length - Overall | Insulation | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Contact Material | Contact Finish | Gender | Termination | Terminal Type | Tab Thickness | Tab Width | Mounting Type | Insulation Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.2 in | 0.5 in | Non-Insulated | 22 AWG | 24 AWG | Brass | Tin | Female | Crimp | Standard | 0.016 in | 0.078 in | Free Hanging (In-Line) | 0.06 in |
