UB500 Series
Manufacturer: Pepperl+Fuchs, Inc.
Beta
⌘K
ULTRASONIC SENSOR ROHS COMPLIANT: YES
| Part | Indicator | Output Type | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Termination Style | Ingress Protection | Material - Body | Sensing Distance Minimum | Sensing Distance Maximum | Shielding | Package / Case | Sensor Type | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

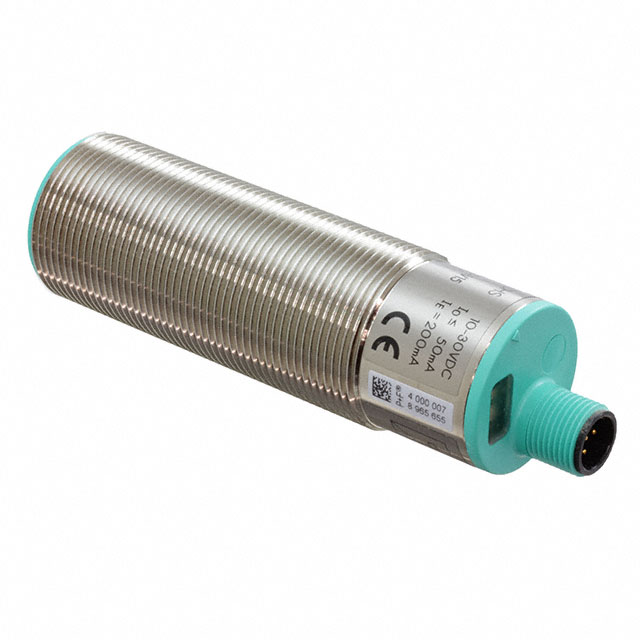

 Pepperl+Fuchs, Inc. | LED | NO PNP-NC | 10 VDC | 30 VDC | Connector | IP65 | Nickel-Plated Brass | 1.181 " | 19.685 " | Unshielded | Cylinder Threaded - M30 | Ultrasonic | 70 °C | -25 °C |

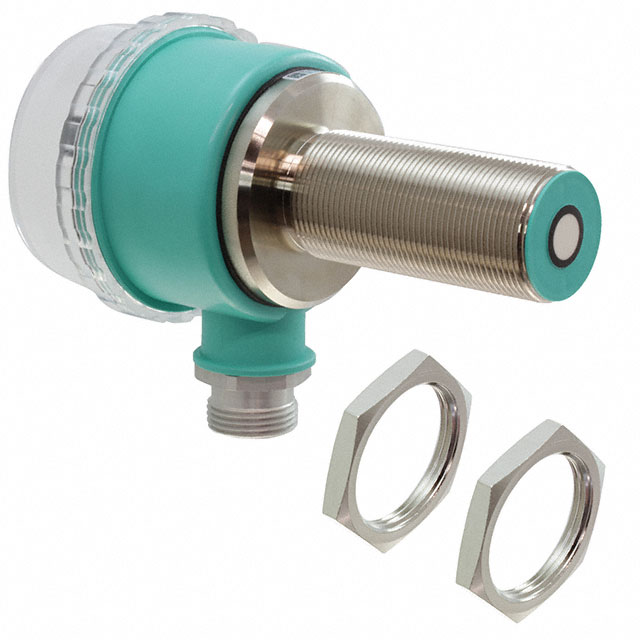

 Pepperl+Fuchs, Inc. | LED | 3-Wire SCR-NO | 90 VAC | 140 VAC/DC | Connector | IP65 | Nickel-Plated Brass | 2.756 " | 19.685 " | Unshielded | Cylinder Threaded - M30 | Ultrasonic | 70 °C | -25 °C |
