ALM06FD15 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG MALE 12POS GOLD CRIMP

Part	Insert Material	Shell Material	Connector Type	Features	Color	Applications	Termination	Shielding	Material Flammability Rating	Shell Finish	Mounting Type	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Orientation	Number of Positions	Ingress Protection Description	Ingress Protection IP Rating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Primary Material	Contact Finish - Mating	Current Rating Options	Current Rating	Shell Size - Insert Length	Shell Size - Insert Width	Position Types	Shell Size - Insert

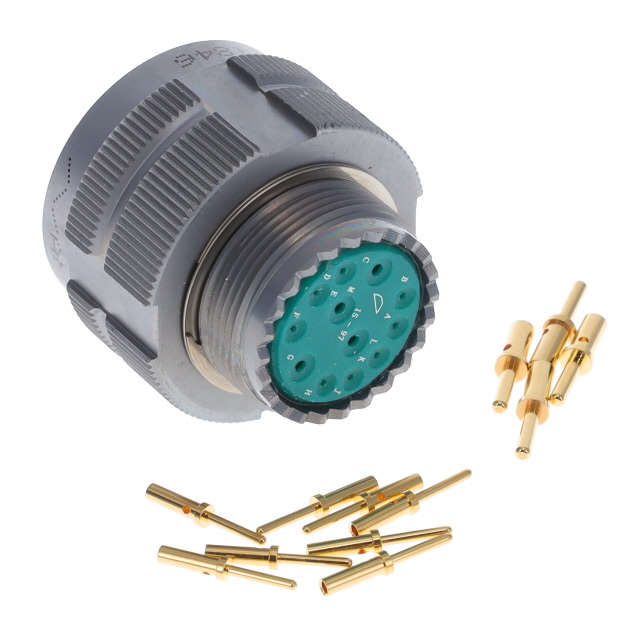

Amphenol Aerospace Operations ALM06FD15-97P(072)	Silicon Rubber	Composite	Male Pins Plug	Coupling Nut	Gray	Aviation	Crimp	Shielded	UL94 V-0	Gray Zinc Nickel	Free Hanging (In-Line)	Threaded	125 °C	-65 °C	N (Normal)	12	Dust Tight Waterproof	IP67	97	15	Composite	Gold	13A 7.5A
Amphenol Aerospace Operations ALM06FD15-35P(072)	Silicon Rubber	Composite	Male Pins Plug	Coupling Nut	Gray	Aviation	Crimp	Shielded	UL94 V-0	Gray Zinc Nickel	Free Hanging (In-Line)	Threaded	125 °C	-65 °C	N (Normal)	37 pos	Dust Tight Waterproof	IP67	35	15	Composite	Gold		5 A

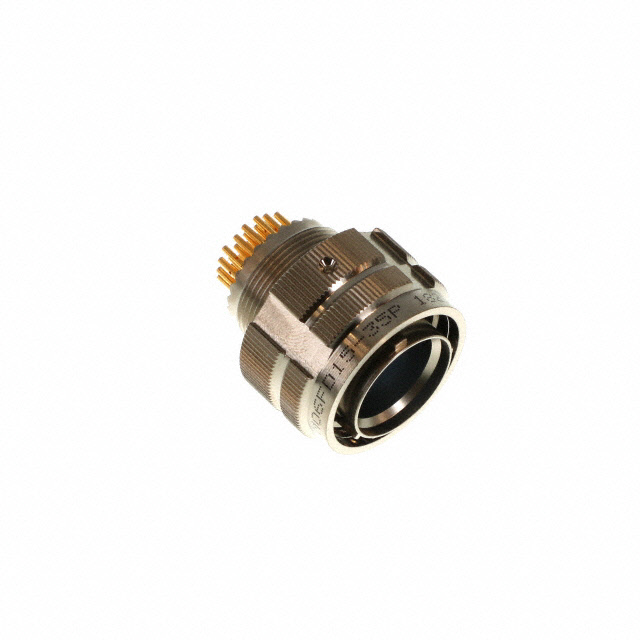

Amphenol Aerospace Operations ALM06FD15-35P	Silicon Rubber	Composite	Male Pins Plug	Coupling Nut		Aviation	Crimp	Shielded	UL94 V-0	Electroless Nickel	Free Hanging (In-Line)	Threaded	125 °C	-65 °C	N (Normal)	37 pos	Dust Tight Waterproof	IP67	35	15	Composite	Gold		5 A
Amphenol Aerospace Operations ALM06FD15-35S	Silicon Rubber	Composite	Female Sockets Plug	Coupling Nut		Aviation	Crimp	Shielded	UL94 V-0	Electroless Nickel	Free Hanging (In-Line)	Threaded	125 °C	-65 °C	N (Normal)	37 pos	Dust Tight Waterproof	IP67	35	15	Composite	Gold		5 A
Amphenol Aerospace Operations ALM06FD15-2S(072)	Silicon Rubber	Composite	Female Sockets Plug	Coupling Nut	Gray	Aviation	Crimp	Shielded	UL94 V-0	Gray Zinc Nickel	Free Hanging (In-Line)	Threaded	125 °C	-65 °C	N (Normal)	2	Dust Tight Waterproof	IP67			Composite	Gold			15 mm	2 mm	Power
Amphenol Aerospace Operations ALM06FD15-19P(072)	Silicon Rubber	Composite	Male Pins Plug	Coupling Nut	Gray	Aviation	Crimp	Shielded	UL94 V-0	Gray Zinc Nickel	Free Hanging (In-Line)	Threaded	125 °C	-65 °C	N (Normal)	19	Dust Tight Waterproof	IP67	19	15	Composite	Gold		7.5 A
Amphenol Aerospace Operations ALM06FD15-ACP(072)	Silicon Rubber	Composite	Male Pins Plug	Coupling Nut	Gray	Aviation	Crimp	Shielded	UL94 V-0	Gray Zinc Nickel	Free Hanging (In-Line)	Threaded	125 °C	-65 °C	N (Normal)	26	Dust Tight Waterproof	IP67			Composite	Gold	13A 5A					15-AC
Amphenol Aerospace Operations ALM06FD15-ACS	Silicon Rubber	Composite	Female Sockets Plug	Coupling Nut		Aviation	Crimp	Shielded	UL94 V-0	Electroless Nickel	Free Hanging (In-Line)	Threaded	125 °C	-65 °C	N (Normal)	26	Dust Tight Waterproof	IP67			Composite	Gold	13A 5A					15-AC
