2408027 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

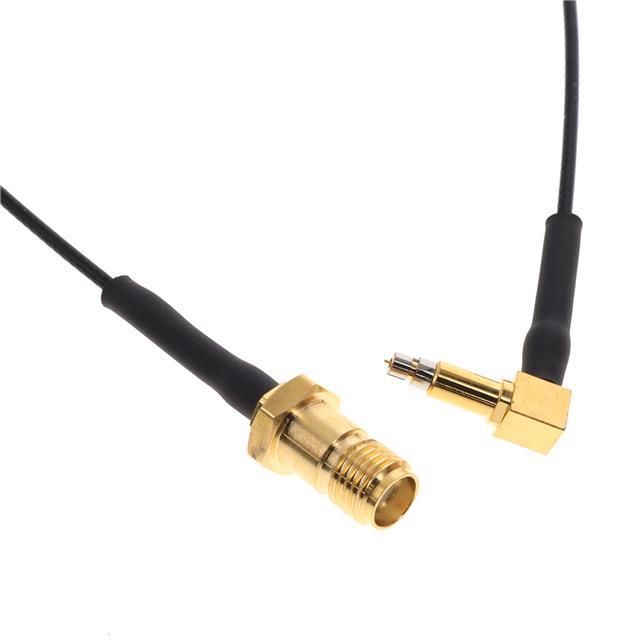

SWITCH RA TO SMA F ST -1.37 CABLE-300MM
| Part | 2nd Connector | Style | Length | 2nd Contact Gender | 2nd Connector Mounting Type | 1st Contact Gender | Color | 1st Connector | 1st Connector Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Overall Impedance | Cable Type Size | Cable Type | Cable Outer Diameter | Frequency - Max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Probe Right Angle | Probe SMA | 11.811 in | Male | Free Hanging (In-Line) | Female | Black | SMA Jack | Free Hanging (In-Line) | -40 °C | 85 °C | 50 Ohms | 1.37 | Coaxial Cable OD Coaxial Cable | 1.37 mm | 9 GHz |
