RT07142 Series

Catalog

JAM NUT RECEPTACLE, FEMALE WITH

Part	Contact Size	Ingress Protection Description	Ingress Protection IP Rating	Shell Finish	Includes Total Count	Includes	Contact Shape	Shell Material	Connector Type	Orientation	Housing Color	Mounting Feature	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Shielding	Material Flammability Rating	Type	Shell Size - Insert Length	Shell Size - Insert Width	Note	Insert Material	Fastening Type	Number of Positions	Features	Primary Material

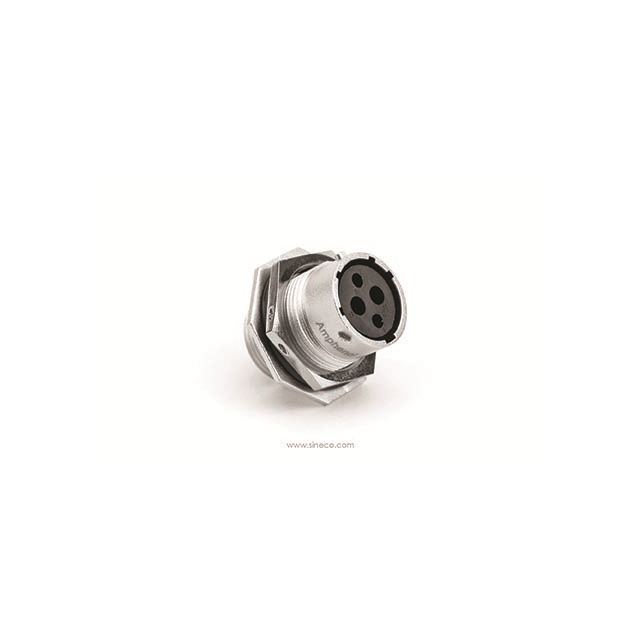

McGill Microwave Systems RT07142SNH03	2.5 mm 16	Dust Tight Waterproof	IP67	Nickel	4 pcs	Connector Gasket Nut O-Ring	Circular	Zinc Alloy	Receptacle Housing	N (Normal)	Silver	Bulkhead Front Side Nut	Crimp	125 °C	-40 °C	Panel Mount	Shielded	UL94 V-0	For Female Sockets	14 mm	2 mm	Contacts Not Included	Thermoplastic	Bayonet Lock	4
McGill Microwave Systems RT07142PNHEC03	2.5 mm 16	Dust Tight Waterproof	IP67	Nickel			Circular	Zinc Alloy	Receptacle Housing	N (Normal)	Silver	Bulkhead Front Side Nut	Crimp	125 °C	-40 °C	Panel Mount	Shielded	UL94 V-0	For Male Pins	14 mm	2 mm	Contacts Not Included	Thermoplastic	Bayonet Lock	4	Cap (Cover)	Metal

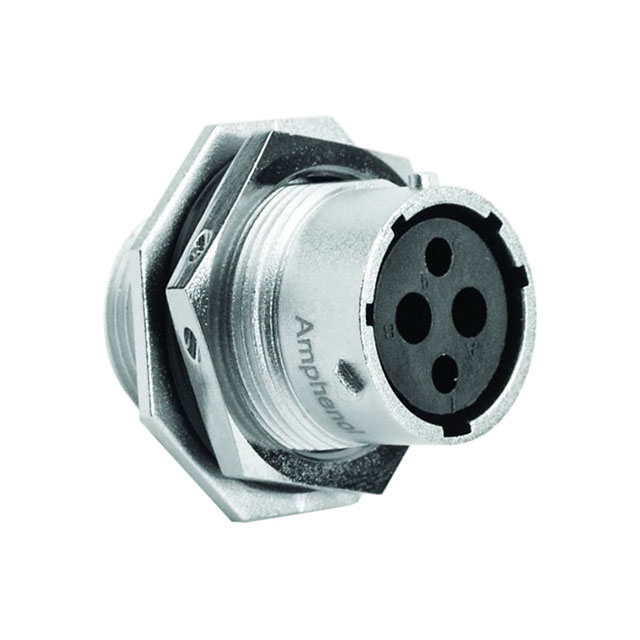

McGill Microwave Systems RT07142SNH	2.5 mm 16	Dust Tight Waterproof	IP67	Nickel			Circular	Zinc Alloy	Receptacle Housing	N (Normal)	Silver	Bulkhead Front Side Nut	Crimp	105 °C	-40 °C	Panel Mount	Shielded	UL94 V-0	For Female Sockets	14 mm	2 mm	Contacts Not Included	Thermoplastic	Bayonet Lock	4

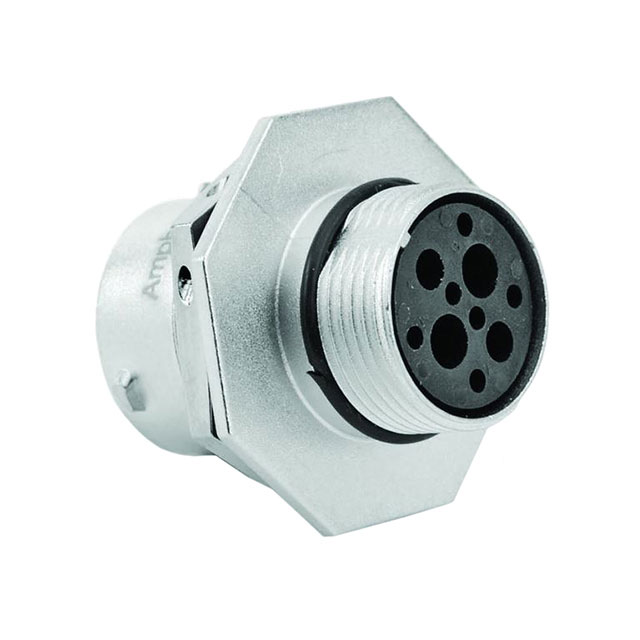

McGill Microwave Systems RT07142PNH	2.5 mm 16	Dust Tight Waterproof	IP67	Nickel			Circular	Zinc Alloy	Receptacle Housing	N (Normal)	Silver	Bulkhead Front Side Nut	Crimp	105 °C	-40 °C	Panel Mount	Shielded	UL94 V-0	For Male Pins	14 mm	2 mm	Contacts Not Included	Thermoplastic	Bayonet Lock	4
