97-3100A14 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
CONN RCPT FMALE 5P SOLDER CUP
| Part | Features | Primary Material | Shell Finish | Backshell Material | Plating | Color | Fastening Type | Connector Type | Contact Finish - Mating | Mounting Type | Shielding | Shell Material | Orientation | Number of Positions | Mounting Feature | Insert Material | Operating Temperature (Max) | Operating Temperature (Min) | Applications | Shell Size - Insert | Termination | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | Backshell | Metal | Cadmium Olive Drab Chromate | Aluminum Alloy | Olive Drab Chromate over Cadmium | Olive Drab | Threaded | Female Sockets Receptacle | Silver | Panel Mount | Unshielded | Aluminum Alloy | N (Normal) | 5 | Flange | DAP Diallyl Phthalate | 125 °C | -55 °C | Automotive Industrial | 14S-5 | Solder Cup | Copper Alloy |

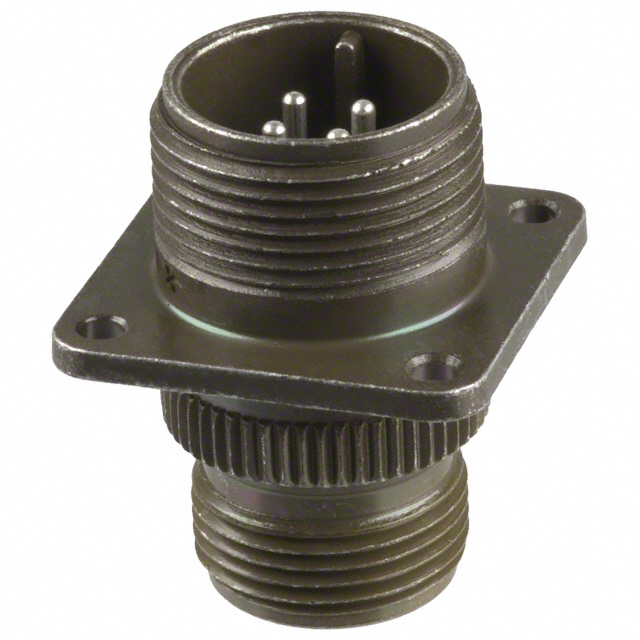

 Amphenol Aerospace Operations | Backshell | Metal | Cadmium Olive Drab Chromate | Aluminum Alloy | Olive Drab Chromate over Cadmium | Olive Drab | Threaded | Male Pins Receptacle | Silver | Panel Mount | Unshielded | Aluminum Alloy | N (Normal) | 5 | Flange | DAP Diallyl Phthalate | 125 °C | -55 °C | Automotive Industrial | 14S-5 | Solder Cup | Copper Alloy |
Amphenol Aerospace Operations | Backshell | Metal | Black Zinc Alloy | Aluminum Alloy | Black Zinc Alloy | Black | Threaded | Female Sockets Receptacle | Silver | Panel Mount | Unshielded | Aluminum Alloy | N (Normal) | 5 | Flange | DAP Diallyl Phthalate | 125 °C | -55 °C | Automotive Industrial | 14S-5 | Solder Cup | Copper Alloy |
 Amphenol Aerospace Operations | Backshell | Metal | Cadmium Olive Drab Chromate | Aluminum Alloy | Olive Drab Chromate over Cadmium | Olive Drab | Threaded | Female Sockets Receptacle | Silver | Panel Mount | Unshielded | Aluminum Alloy | N (Normal) | 3 | Flange | DAP Diallyl Phthalate | 125 °C | -55 °C | Automotive Industrial | 14S-1 | Solder Cup | Copper Alloy |
 Amphenol Aerospace Operations | Backshell | Metal | Black Zinc Alloy | Aluminum Alloy | Black Zinc Alloy | Black | Threaded | Male Pins Receptacle | Silver | Panel Mount | Unshielded | Aluminum Alloy | N (Normal) | 4 | Flange | DAP Diallyl Phthalate | 125 °C | -55 °C | Automotive Industrial | 14S-2 | Solder Cup | Copper Alloy |
Amphenol Aerospace Operations | Backshell | Metal | Black Zinc Alloy | Aluminum Alloy | Black Zinc Alloy | Black | Threaded | Male Pins Receptacle | Silver | Panel Mount | Unshielded | Aluminum Alloy | N (Normal) | 5 | Flange | DAP Diallyl Phthalate | 125 °C | -55 °C | Automotive Industrial | 14S-5 | Solder Cup | Copper Alloy |
 Amphenol Aerospace Operations | Backshell | Metal | Black Zinc Alloy | Aluminum Alloy | Black Zinc Alloy | Black | Threaded | Male Pins Receptacle | Silver | Panel Mount | Unshielded | Aluminum Alloy | N (Normal) | 6 | Flange | DAP Diallyl Phthalate | 125 °C | -55 °C | Automotive Industrial | 14S-6 | Solder Cup | Copper Alloy |

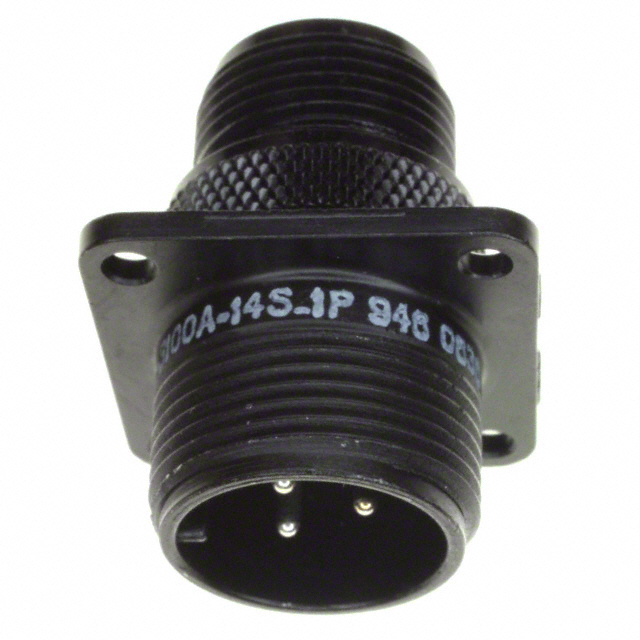

 Amphenol Aerospace Operations | Backshell | Metal | Black Zinc Alloy | Aluminum Alloy | Black Zinc Alloy | Black | Threaded | Male Pins Receptacle | Silver | Panel Mount | Unshielded | Aluminum Alloy | N (Normal) | 3 | Flange | DAP Diallyl Phthalate | 125 °C | -55 °C | Automotive Industrial | 14S-1 | Solder Cup | Copper Alloy |
 Amphenol Aerospace Operations | Backshell | Metal | Cadmium Olive Drab Chromate | Aluminum Alloy | Olive Drab Chromate over Cadmium | Olive Drab | Threaded | Female Sockets Receptacle | Silver | Panel Mount | Unshielded | Aluminum Alloy | N (Normal) | 4 | Flange | DAP Diallyl Phthalate | 125 °C | -55 °C | Automotive Industrial | 14S-2 | Solder Cup | Copper Alloy |

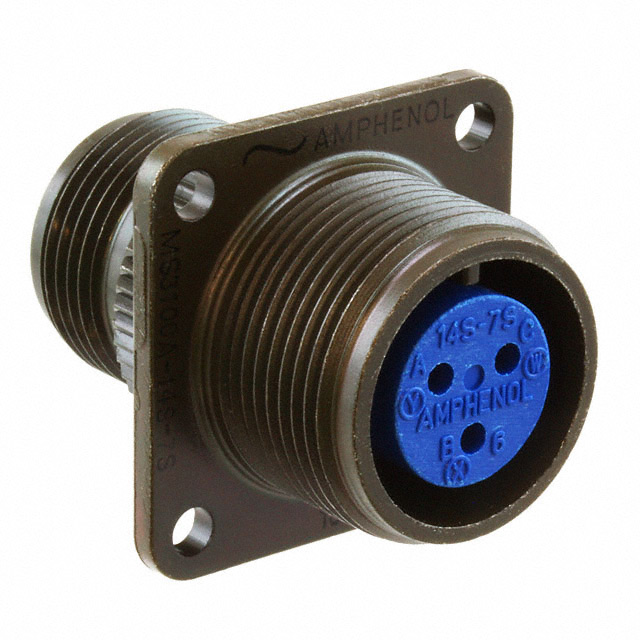

 Amphenol Aerospace Operations | Backshell | Metal | Cadmium Olive Drab Chromate | Aluminum Alloy | Olive Drab Chromate over Cadmium | Olive Drab | Threaded | Female Sockets Receptacle | Silver | Panel Mount | Unshielded | Aluminum Alloy | N (Normal) | 3 | Flange | DAP Diallyl Phthalate | 125 °C | -55 °C | Automotive Industrial | 14S-7 | Solder Cup | Copper Alloy |
