RL28-8 Series

Catalog

PHOTOELECTRIC, SERIES 28, BACKGROUND SUPPRESSION

Part	Connection Method	Adjustment Type	Output Configuration	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Response Time	Light Source Wavelength (Infrared)	Light Source	Sensing Method	Operating Temperature (Max)	Operating Temperature (Min)	Sensing Distance Minimum	Sensing Distance Maximum	Ingress Protection	Light Source Wavelength (Red Laser Diode)

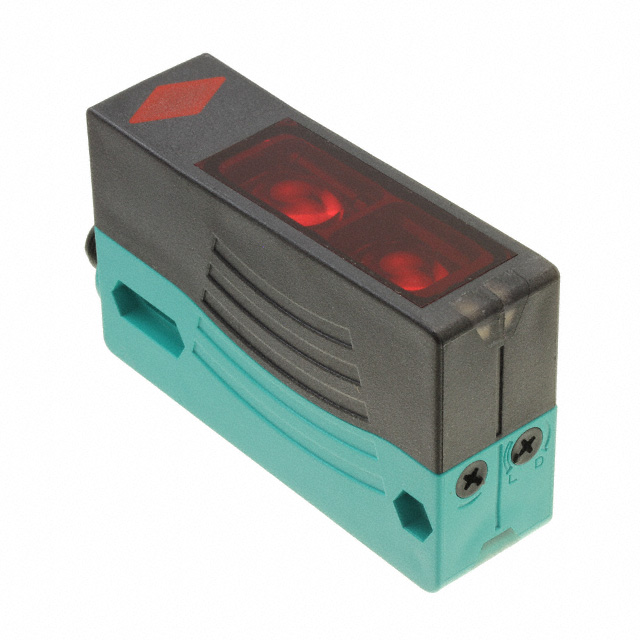

Pepperl+Fuchs, Inc. RL28-8-H-2000-IR/47/105	Connector M12	Adjustable	Dark-ON Light-ON	10 VDC	30 VDC	2 ms	880 nm	Infrared	Diffuse	60 °C	-40 °C	0.787 "	78.74 "	IP67

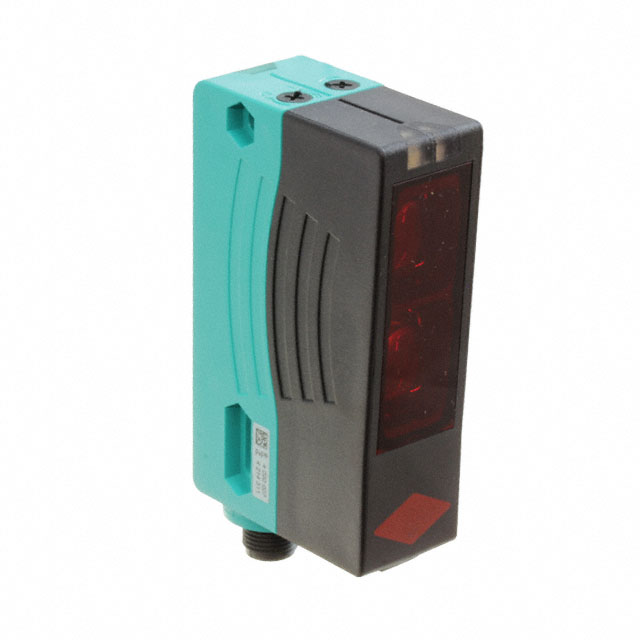

Pepperl+Fuchs, Inc. RL28-8-H-700-IR/49/105	Connector M12	Adjustable	Light-ON\Dark-ON NPN PNP - Open Collector	10 VDC	30 VDC	2 ms	880 nm	Infrared	Diffuse	60 °C	-40 °C	0.787 "	27.559 "	IP67
Pepperl+Fuchs, Inc. RL28-8-H-1500-LAS/47/105	Connector M12	Adjustable	Light-ON\Dark-ON PNP - Open Collector	10 VDC	30 VDC	3.5 ms		Red Laser Diode	Diffuse	50 °C	-10 °C	3.937 "	59.055 "	IP67	650 nm

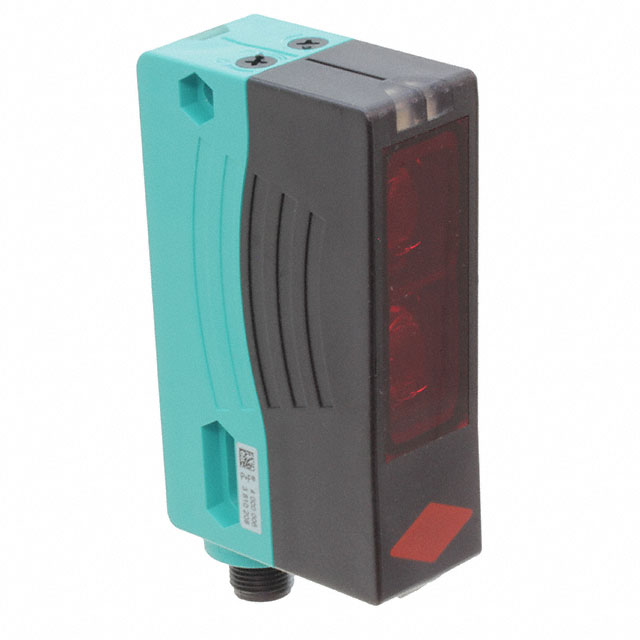

Pepperl+Fuchs, Inc. RL28-8-H-700-RT/47/105	Connector M12	Adjustable	Light-ON\Dark-ON PNP - Open Collector	10 VDC	30 VDC	2 ms		Red LED	Diffuse	60 °C	-40 °C	0.787 "	27.559 "	IP67
Pepperl+Fuchs, Inc. RL28-8-H-2000-IR/105/110 US	Connector M12	Adjustable	Dark-ON Light-ON	10 VDC	30 VDC	2 ms	880 nm	Infrared	Diffuse	60 °C	-40 °C	0.787 "	78.74 "	IP67
