ADG658 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

ANALOG MULTIPLEXER SINGLE 8:1 AUTOMOTIVE AEC-Q100 16-PIN TSSOP TUBE

Part	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Dual (Maximum)	Voltage - Supply, Dual (Minimum)	Operating Temperature (Max)	Operating Temperature (Min)	On-State Resistance (Max)	Package Name	Multiplexer Inputs	Demultiplexer Outputs	Channel-to-Channel Matching (ΔRon)	Charge Injection	Channel Capacitance (CD(off))	Channel Capacitance (CS(off))	Current - Leakage (Max)	Mounting Type	Voltage - Supply, Single (V+) (Minimum)	Voltage - Supply, Single (V+) (Maximum)	Switch Time Toff (Max)	Switch Time Ton (Max)	Number of Circuits	-3db Bandwidth	Package Length	Package Width	Package / Case
Analog Devices Inc./Maxim Integrated ADW54003-0	2 V	6 V	-2 V	125 °C	-40 °C	75 Ohm	16-TSSOP	8	1	1.3 Ohm	2 pC	23 pF	4 pF	200 pA	Surface Mount	2 V	12 V	45 ns	115 ns	1	210 MHz	0.173 in	4.4 mm

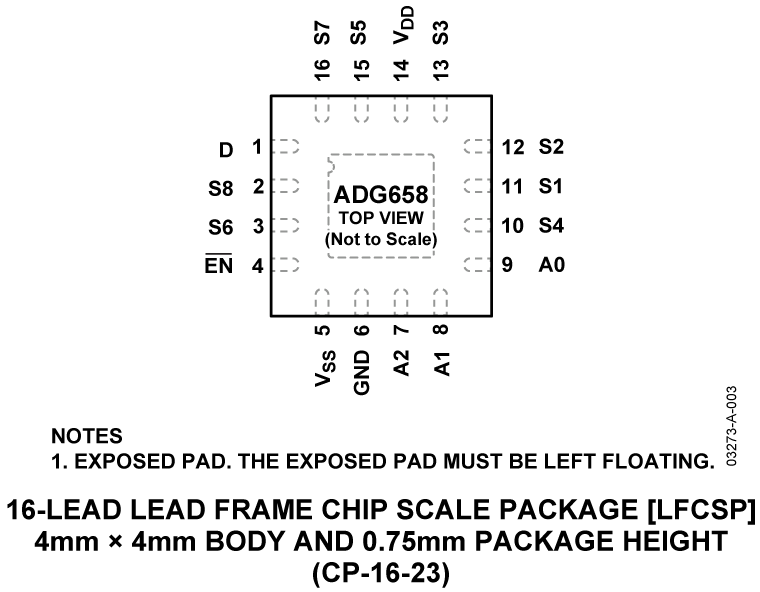

Analog Devices Inc./Maxim Integrated ADG658YCPZ	2 V	6 V	-2 V	85 °C	-40 °C	75 Ohm	16-LFCSP-VQ	8	1	1.3 Ohm	2 pC	23 pF	4 pF	200 pA	Surface Mount	2 V	12 V	45 ns	115 ns	1	210 MHz	4 mm	4 mm	16-VQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG658YRU	2 V	6 V	-2 V	125 °C	-40 °C	75 Ohm	16-TSSOP	8	1	1.3 Ohm	2 pC	23 pF	4 pF	200 pA	Surface Mount	2 V	12 V	45 ns	115 ns	1	210 MHz	0.173 in	4.4 mm
Analog Devices Inc./Maxim Integrated ADG658YRQZ	2 V	6 V	-2 V	125 °C	-40 °C	75 Ohm	16-QSOP 16-SSOP	8	1	1.3 Ohm	2 pC	23 pF	4 pF	200 pA	Surface Mount	2 V	12 V	45 ns	115 ns	1	210 MHz	0.154 in	3.9 mm
Analog Devices Inc./Maxim Integrated ADG658YRU-REEL7	2 V	6 V	-2 V	125 °C	-40 °C	75 Ohm	16-TSSOP	8	1	1.3 Ohm	2 pC	23 pF	4 pF	200 pA	Surface Mount	2 V	12 V	45 ns	115 ns	1	210 MHz	0.173 in	4.4 mm
Analog Devices Inc./Maxim Integrated ADG658YRUZ	2 V	6 V	-2 V	125 °C	-40 °C	75 Ohm	16-TSSOP	8	1	1.3 Ohm	2 pC	23 pF	4 pF	200 pA	Surface Mount	2 V	12 V	45 ns	115 ns	1	210 MHz	0.173 in	4.4 mm
Analog Devices Inc./Maxim Integrated ADG658YCP							16-LFCSP-VQ								Surface Mount							4 mm	4 mm	16-VQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADW54003-0RL7	2 V	6 V	-2 V	125 °C	-40 °C	75 Ohm	16-TSSOP	8	1	1.3 Ohm	2 pC	23 pF	4 pF	200 pA	Surface Mount	2 V	12 V	45 ns	115 ns	1	210 MHz	0.173 in	4.4 mm
Analog Devices Inc./Maxim Integrated ADG658TRUZ-EP	2 V	6 V	-2 V	125 °C	-55 °C	75 Ohm	16-TSSOP	8	1	1.3 Ohm	2 pC	28 pF	4 pF	200 pA	Surface Mount	2 V	12 V	45 ns	115 ns	1	210 MHz	0.173 in	4.4 mm
Analog Devices Inc./Maxim Integrated ADG658TRUZ-EP-RL7	2 V	6 V	-2 V	125 °C	-55 °C	75 Ohm	16-TSSOP	8	1	1.3 Ohm	2 pC	28 pF	4 pF	200 pA	Surface Mount	2 V	12 V	45 ns	115 ns	1	210 MHz	0.173 in	4.4 mm
