RTS1BS12 Series

Catalog

CONN RCPT HSG FMALE 8POS INLINE

Part	Includes	Includes Total Count	Material Flammability Rating	Shell Size - Insert Length	Shell Size - Insert Width	Contact Size	Insert Material	Orientation	Type	Features	Operating Temperature (Max)	Operating Temperature (Min)	Note	Housing Color	Contact Type	Connector Type	Shielding	Shell Material	Fastening Type	Contact Shape	Number of Positions	Ingress Protection IP Rating	Ingress Protection Description	Mounting Type

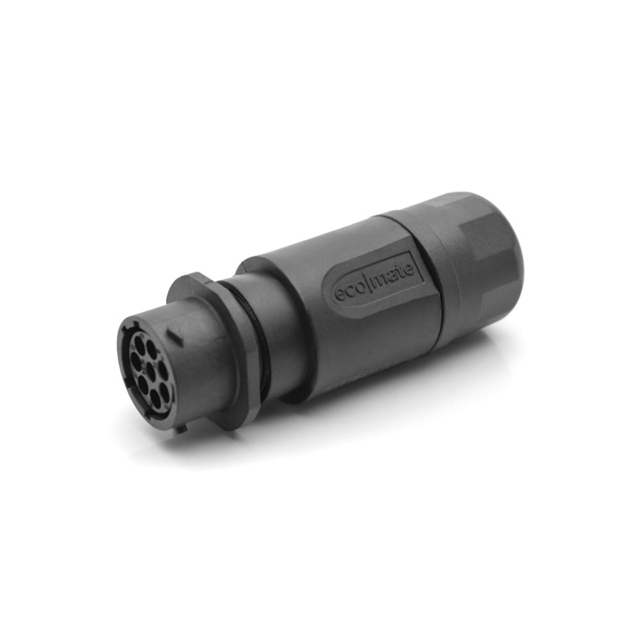

McGill Microwave Systems RTS1BS12N8S03	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs	UL94 V-0	12 mm	8 mm	16 S	Thermoplastic	N (Normal)	For Female Sockets	Backshell	125 °C	-40 °C	Contacts Not Included	Black	Crimp	Receptacle Housing	Unshielded	Thermoplastic	Bayonet Lock	Circular	8	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)

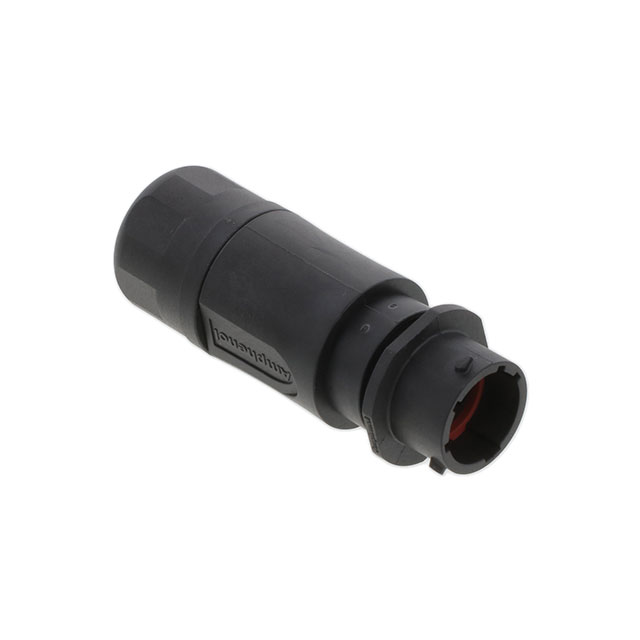

McGill Microwave Systems RTS1BS12N4P03	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs	UL94 V-0	12 mm	4 mm	16 S	Thermoplastic	N (Normal)	For Male Pins	Backshell	125 °C	-40 °C	Contacts Not Included	Black	Crimp	Receptacle Housing	Unshielded	Thermoplastic	Bayonet Lock	Circular	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)
McGill Microwave Systems RTS1BS12N4S03	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs	UL94 V-0	12 mm	4 mm	16 S	Thermoplastic	N (Normal)	For Female Sockets	Backshell	125 °C	-40 °C	Contacts Not Included	Black	Crimp	Receptacle Housing	Unshielded	Thermoplastic	Bayonet Lock	Circular	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)
McGill Microwave Systems RTS1BS12N10P03	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs	UL94 V-0	12 mm	10 mm	20	Thermoplastic	N (Normal)	For Male Pins	Backshell	125 °C	-40 °C	Contacts Not Included	Black	Crimp	Receptacle Housing	Unshielded	Thermoplastic	Bayonet Lock	Circular	10	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)
McGill Microwave Systems RTS1BS12N2P03	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs	UL94 V-0	12 mm	2 mm	2.5 mm 20	Thermoplastic	N (Normal)	For Male Pins	Backshell	125 °C	-40 °C	Contacts Not Included	Black	Crimp	Receptacle Housing	Unshielded	Thermoplastic	Bayonet Lock	Circular	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)

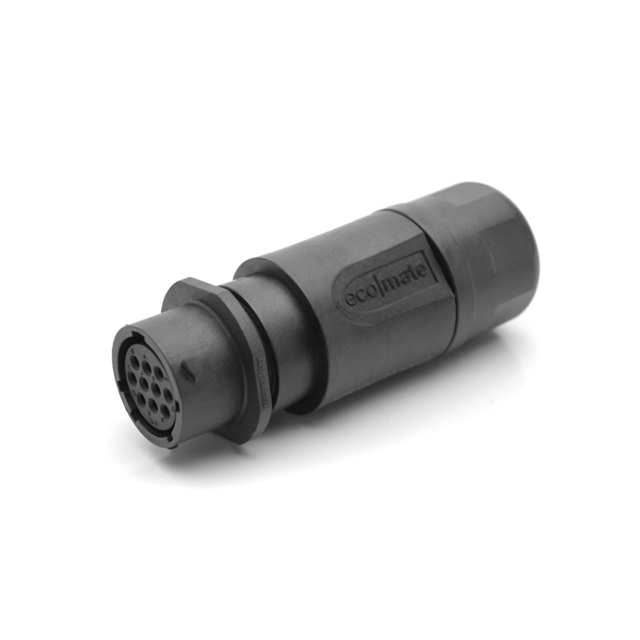

McGill Microwave Systems RTS1BS12N2S03	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs	UL94 V-0	12 mm	2 mm	2.5 mm 20	Thermoplastic	N (Normal)	For Female Sockets	Backshell	125 °C	-40 °C	Contacts Not Included	Black	Crimp	Receptacle Housing	Unshielded	Thermoplastic	Bayonet Lock	Circular	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)
