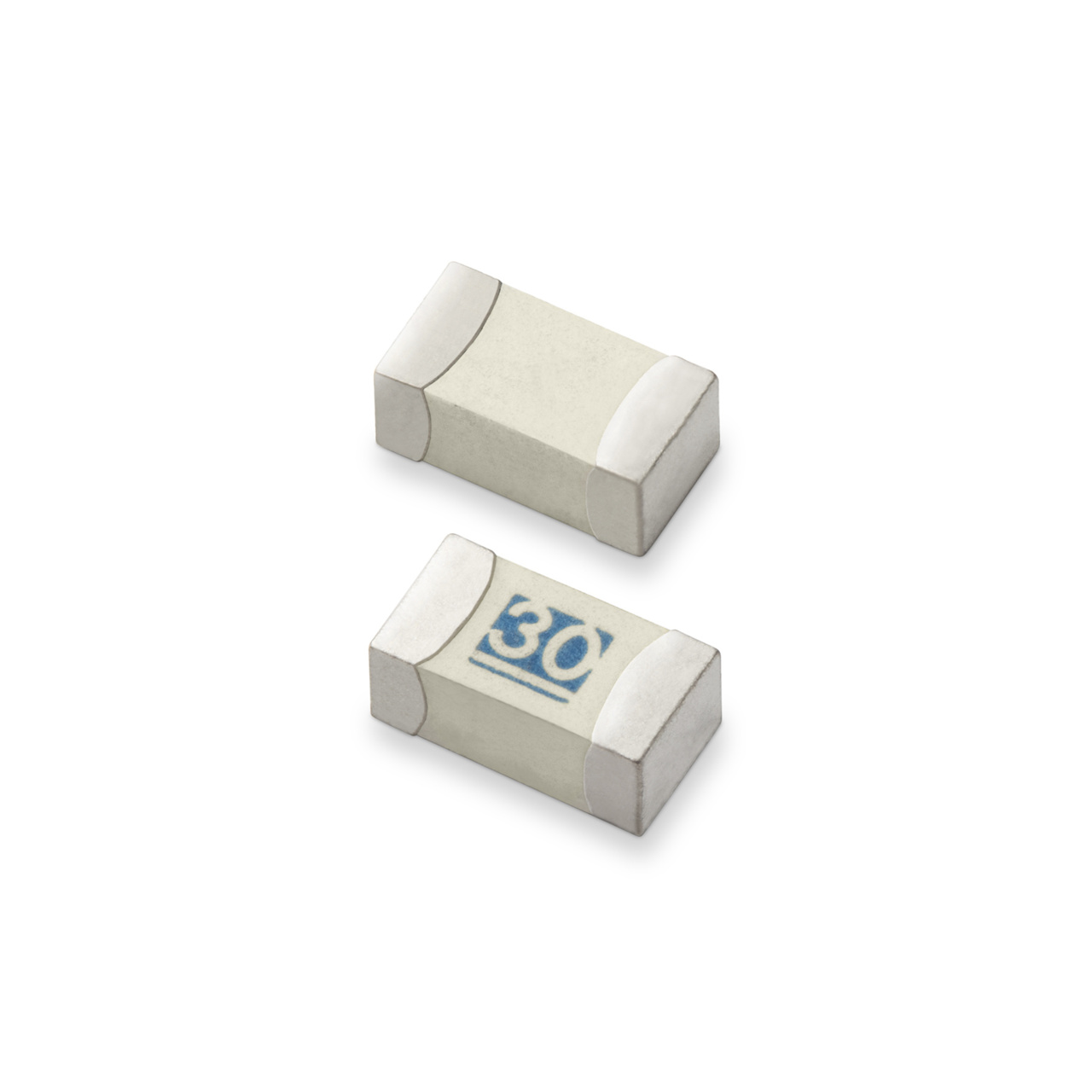

806025 Series

FUSE 36V HIGH CURRENT 1206 FA 25A

Catalog

FUSE 36V HIGH CURRENT 1206 FA 25A

Part	Mounting Type	Current Rating	Voltage Rating - DC	Package / Case	Response Time	Approval Agency	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Melting I²t	Fuse Type	Breaking Capacity	Operating Temperature (Max)	Operating Temperature (Min)
LITTELFUSE 0806025.WR	Surface Mount	25 A	36 VDC	2-SMD Square End Block	Fast Blow	cURus	0.125 in	0.048 in	0.064 in	110	Board Mount (Cartridge Style Excluded)	200 A	150 °C	-55 °C

Catalog

FUSE 36V HIGH CURRENT 1206 FA 25A

Description

The 806 Series fuse is designed specifically to provide overcurrent protection to circuits that operate under high working ambient temperature up to 150 °C. It’s generic design ensures excellent temperature stability and performance reliability. The high I2t values which is typical in the Littelfuse Ceramic Fuse family ensure high inrush current withstand capability.
