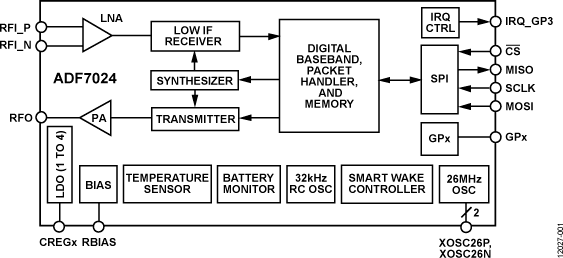

ADF7024 Series

Catalog

SUB-GHZ DEVELOPMENT TOOLS DAUGHTER BOARD 862 MHZ - 928 MHZ

Part	Contents	Frequency (Max)	Frequency (Min)	Utilized IC / Part	Type	Data Rate (Max)	Power - Output	Memory Type	Memory Size	Package / Case	Sensitivity	RF Family/Standard	Modulation	Serial Interfaces	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Current - Transmitting (Max)	Current - Transmitting (Min)	GPIO Count	Frequency Range 1 (Min)	Frequency Range 2 (Min)	Frequency Range 2 (Max)	Frequency Range 1 (Max)	Current - Receiving	Package Length	Package Name	Package Width	Supplied Contents	For Use With/Related Products
Analog Devices Inc./Maxim Integrated EVAL-ADF7024DB1Z	Board	928 MHz	862 MHz	ADF7024	Transceiver
Analog Devices Inc./Maxim Integrated ADF7024BCPZ					TxRx + MCU	300 kbps	13.5 dBm	RAM	240 B	32-WFQFN Exposed Pad CSP	-111 dBm	General ISM < 1GHz	FHSS FSK GFSK	SPI	3.6 V	2.2 V	-40 °C	85 °C	Surface Mount	32.1 mA	8.7 mA	6	431 MHz	862 MHz	928 MHz	435 MHz	12.8 mA	5 mm	32-LFCSP	5 mm
Analog Devices Inc./Maxim Integrated EVAL-ADF7024DB3Z	Board	435 MHz	431 MHz	ADF7024	Transceiver																										Board(s)	ADF7024
Analog Devices Inc./Maxim Integrated ADF7024BCPZ-RL					TxRx + MCU	300 kbps	13.5 dBm	RAM	240 B	32-WFQFN Exposed Pad CSP	-111 dBm	General ISM < 1GHz	FHSS FSK GFSK	SPI	3.6 V	2.2 V	-40 °C	85 °C	Surface Mount	32.1 mA	8.7 mA	6	431 MHz	862 MHz	928 MHz	435 MHz	12.8 mA	5 mm	32-LFCSP	5 mm
Analog Devices Inc./Maxim Integrated EVAL-ADF7024DB4Z	Board	435 MHz	431 MHz	ADF7024	Transceiver
Analog Devices Inc./Maxim Integrated EVAL-ADF7024DB2Z	Board	928 MHz	862 MHz	ADF7024	Transceiver																										Board(s)	ADF7024
