SJS84 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

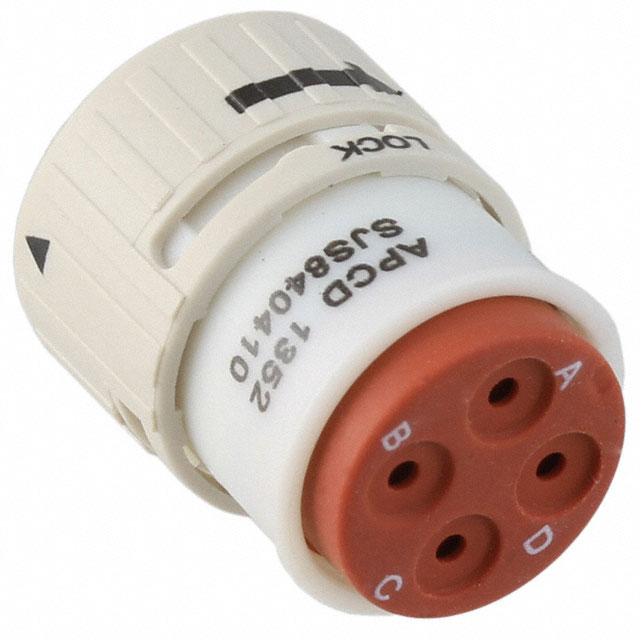

CONN PLUG HSG FMALE 4POS INLINE
| Part | Note | Ingress Protection Description | Ingress Protection IP Rating | Features | Orientation | Shell Size - Insert | Shell Size - Insert | Type | Operating Temperature (Max) | Operating Temperature (Min) | Contact Type | Fastening Type | Shell Material | Contact Size | Contact Shape | Mounting Type | Shielding | Number of Positions | Connector Type | Housing Color | Material Flammability Rating | Contact Finish - Mating | Termination | Ingress Protection | Current Rating | Primary Material | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Contacts Not Included | Dust Tight Waterproof | IP67 | Coupling Nut Dust Cap | A | 8 | 8 | For Female Sockets | 155 °C | -65 °C | Crimp | Bayonet Lock | Nylon 6/6 Polyamide (PA66) | 16 S | Circular | Free Hanging (In-Line) | Unshielded | 4 | Plug Housing | White | UL94 V-0 | ||||||

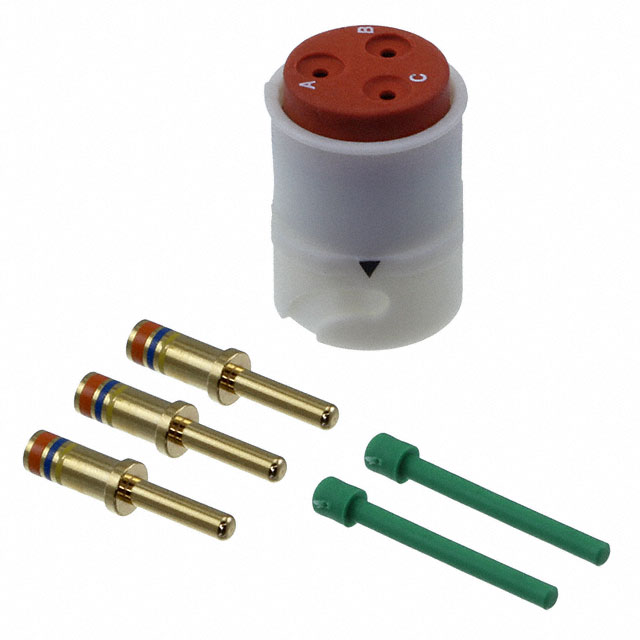

 McGill Microwave Systems | 8 | 8 | 125 °C | -65 °C | Bayonet Lock | Nylon 6/6 Polyamide (PA66) | Free Hanging (In-Line) | 3 | Male Pins Receptacle | Gold | Crimp | Environment Sealed | 13 A | Plastic | |||||||||||||
 McGill Microwave Systems | Contacts Not Included | Dust Tight Waterproof | IP67 | Dust Cap | A | 8 | 8 | For Male Pins | 155 °C | -65 °C | Crimp | Bayonet Lock | Nylon 6/6 Polyamide (PA66) | 16 S | Circular | Free Hanging (In-Line) | Unshielded | 4 | Receptacle Housing | White | UL94 V-0 | ||||||

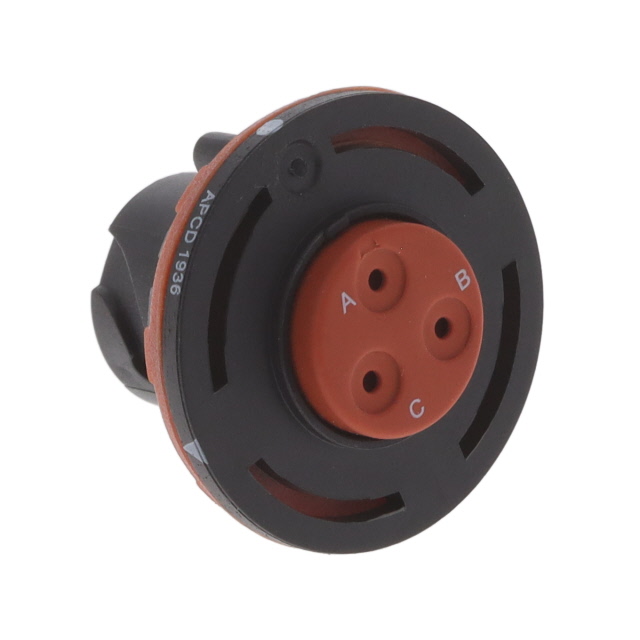

 McGill Microwave Systems | Contacts Not Included | Dust Tight Waterproof | IP67 | Dust Cap | B | 8 | 8 | For Male Pins | 155 °C | -65 °C | Crimp | Bayonet Lock | Nylon 6/6 Polyamide (PA66) | 16 S | Circular | Panel Mount | Unshielded | 3 | Receptacle Housing | Black | UL94 V-0 | Flange | |||||

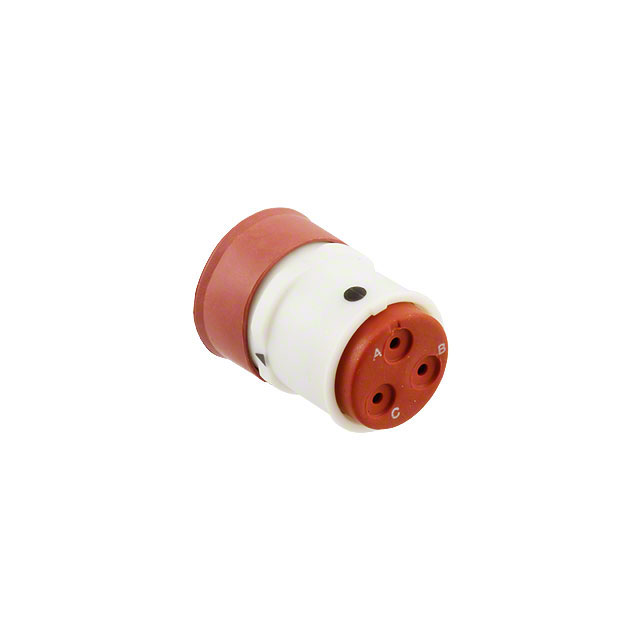

 McGill Microwave Systems | Contacts Not Included | Dust Tight Waterproof | IP67 | Dust Cap | A | 8 | 8 | For Male Pins | 155 °C | -65 °C | Crimp | Bayonet Lock | Nylon 6/6 Polyamide (PA66) | 16 S | Circular | Free Hanging (In-Line) | Unshielded | 3 | Receptacle Housing | White | UL94 V-0 | ||||||

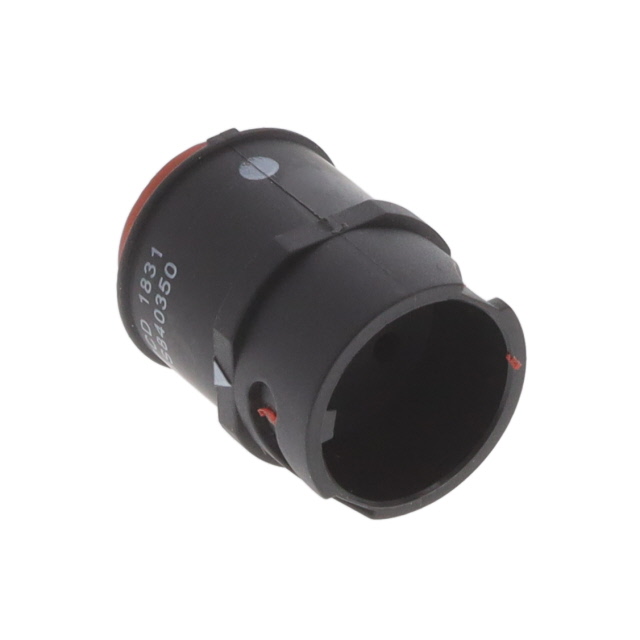

 McGill Microwave Systems | Contacts Not Included | Dust Tight Waterproof | IP67 | Dust Cap | B | 8 | 8 | For Male Pins | 155 °C | -65 °C | Crimp | Bayonet Lock | Nylon 6/6 Polyamide (PA66) | 16 S | Circular | Free Hanging (In-Line) | Unshielded | 3 | Receptacle Housing | Black | UL94 V-0 | ||||||

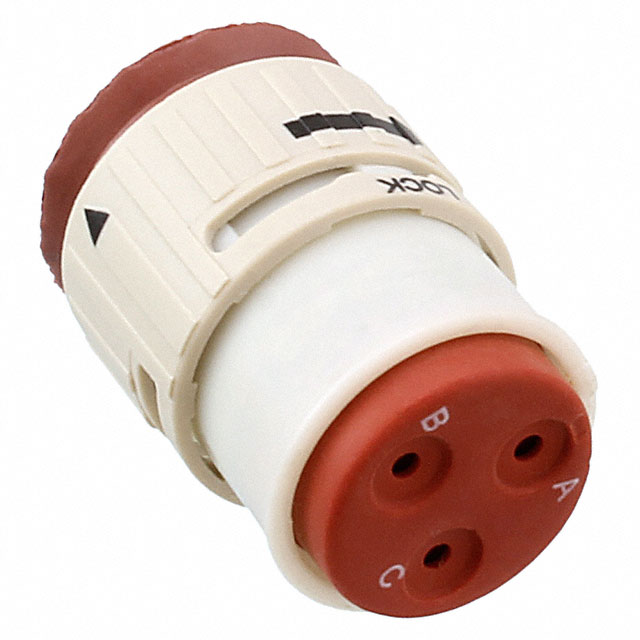

 McGill Microwave Systems | Contacts Not Included | Dust Tight Waterproof | IP67 | Coupling Nut Dust Cap | A | 8 | 8 | For Female Sockets | 155 °C | -65 °C | Crimp | Bayonet Lock | Nylon 6/6 Polyamide (PA66) | 16 S | Circular | Free Hanging (In-Line) | Unshielded | 3 | Plug Housing | White | UL94 V-0 | ||||||
 McGill Microwave Systems | Contacts Not Included | Dust Tight Waterproof | IP67 | Dust Cap | A | 8 | 8 | For Male Pins | 155 °C | -65 °C | Crimp | Bayonet Lock | Nylon 6/6 Polyamide (PA66) | 16 S | Circular | Panel Mount | Unshielded | 3 | Receptacle Housing | White | UL94 V-0 | Flange |
