CLX6A Series

Catalog

LED RGB 6PLCC SMD

Part	Package Name	Color	Mounting Type	Lens Style	Package / Case	Size / Dimension Width	Size / Dimension Length	Voltage - Forward (Vf) (Typ) (Blue)	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Voltage - Forward (Vf) (Typ) (Red)	Millicandela Rating Colors	Millicandela Rating (Blue)	Millicandela Rating (Green)	Millicandela Rating (Red)	Current - Test (Green)	Current - Test Colors	Current - Test (Red)	Current - Test (Blue)	Wavelength - Dominant (Red)	Wavelength - Dominant Color	Wavelength - Dominant (Green)	Wavelength - Dominant (Blue)	Height (Max)	Configuration	Lens Transparency	Lens Color	Lens Size

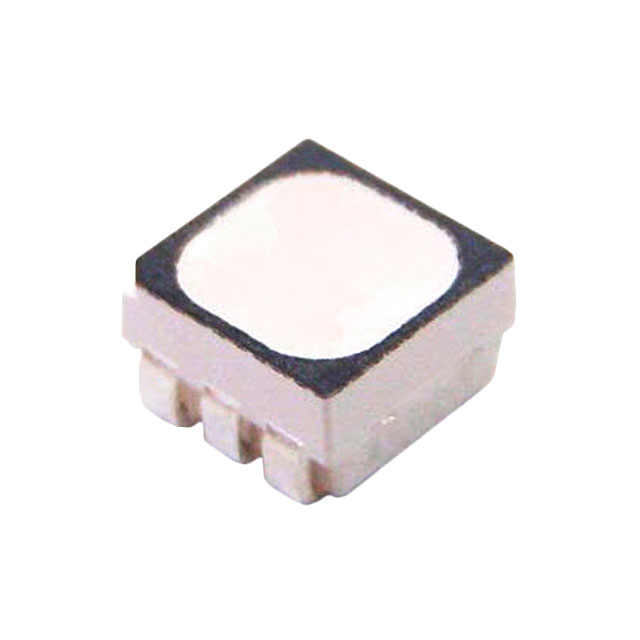

CreeLED, Inc. CLX6A-FKB-CK1P1G1BB7D3D3	6-PLCC	Blue (RGB) Green Red	Surface Mount	Flat Top Round	6-SMD J-Lead	3.4 mm	3.5 mm	3.2 V	Blue Green Red	3.2 V	2 V	Blue Green Red	420 mcd	1680 mcd	840 mcd	20 mA	Blue Green Red	20 mA	20 mA	622 nm	Blue Green Red	530 nm	470 nm	2.9 mm	Independent
CreeLED, Inc. CLX6A-FKB-CJNNRFJBB7A363	6-PLCC	Blue (RGB) Green Red	Surface Mount	Flat Top Square	6-SMD J-Lead	3.4 mm	3.5 mm	3.2 V	Blue Green Red	3.2 V	2 V	Blue Green Red	392 mcd	1570 mcd	785 mcd	20 mA	Blue Green Red	20 mA	20 mA	622 nm	Blue Green Red	530 nm	470 nm	2.9 mm	Independent	Diffused	White	1 mm
CreeLED, Inc. CLX6A-FKB-CK1P1G1BB7R3R3	6-PLCC	Blue (RGB) Green Red	Surface Mount	Flat Top Square	6-SMD J-Lead	3.4 mm	3.5 mm	3.2 V	Blue Green Red	3.2 V	2 V	Blue Green Red	420 mcd	1680 mcd	840 mcd	20 mA	Blue Green Red	20 mA	20 mA	622 nm	Blue Green Red	530 nm	470 nm	2.9 mm	Independent	Diffused	White	1 mm
CreeLED, Inc. CLX6A-FKB-CK1P1G1BB7S4T3	6-PLCC	Blue (RGB) Green Red	Surface Mount	Flat Top Square	6-SMD J-Lead	3.4 mm	3.5 mm	3.2 V	Blue Green Red	3.2 V	2 V	Blue Green Red	365 mcd	1460 mcd	730 mcd	20 mA	Blue Green Red	20 mA	20 mA	622 nm	Blue Green Red	530 nm	470 nm	2.9 mm	Independent	Diffused	White	1 mm
CreeLED, Inc. CLX6A-FKB-CK1P1G1BB7C4S3	6-PLCC	Blue (RGB) Green Red	Surface Mount	Flat Top Round	6-SMD J-Lead	3.4 mm	3.5 mm	3.2 V	Blue Green Red	3.2 V	2 V	Blue Green Red	365 mcd	1460 mcd	730 mcd	20 mA	Blue Green Red	20 mA	20 mA	622 nm	Blue Green Red	528 nm	470 nm	2.9 mm	Independent
