NBB2-12 Series
Manufacturer: Pepperl+Fuchs, Inc.
Beta
⌘K

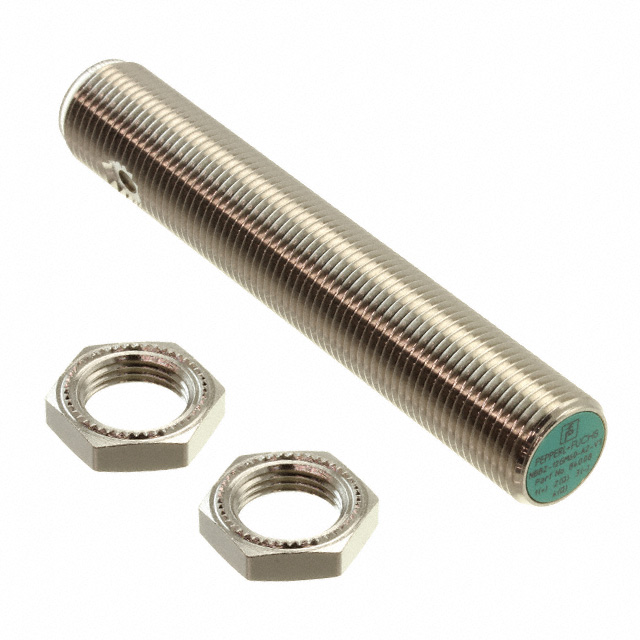

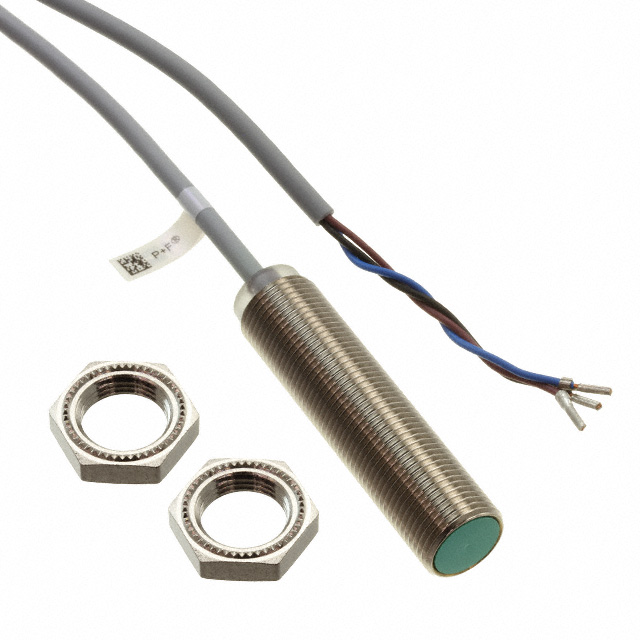

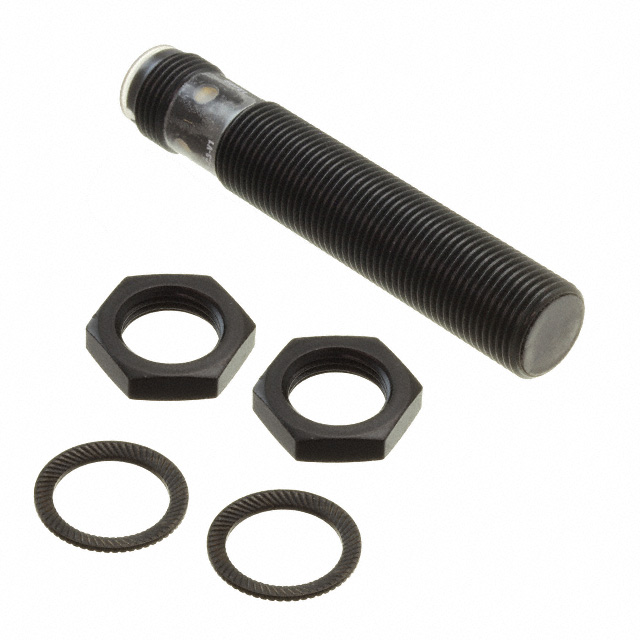

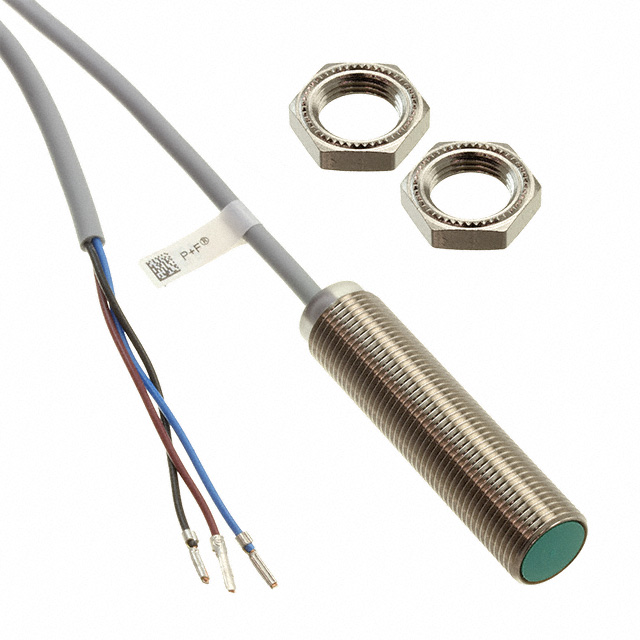

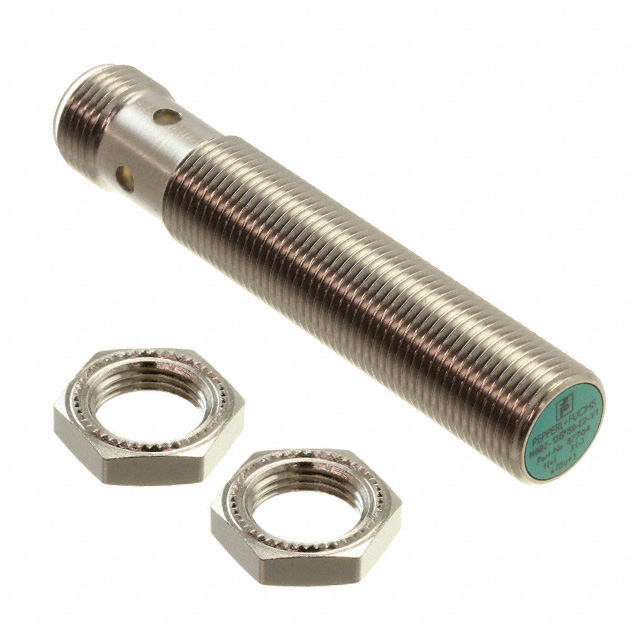

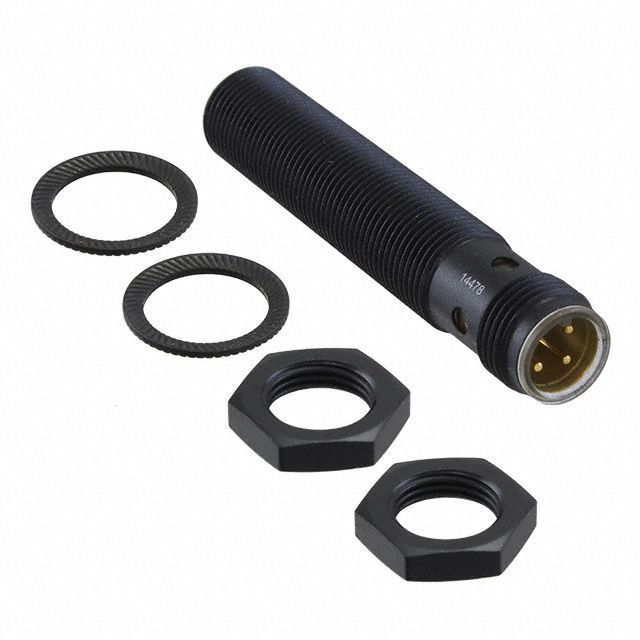

INDUCTIVE SEN 2MM PNP
| Part | Ingress Protection | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Material - Body | Package / Case | Indicator | Termination Style | Operating Temperature (Max) | Operating Temperature (Min) | Sensor Type | Shielding | Sensing Distance | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pepperl+Fuchs, Inc. | IP67 | 10 VDC | 30 VDC | Nickel-Plated Brass | Cylinder Threaded - M12 | LED | Connector | 70 °C | -25 °C | Inductive | Unshielded | 0.079 " | 4-Wire NO PNP-NC |
 Pepperl+Fuchs, Inc. | IP67 | 10 VDC | 30 VDC | Nickel-Plated Brass | Cylinder Threaded - M12 | LED | Cable | 70 °C | -25 °C | Inductive | Unshielded | 0.079 " | 3-Wire PNP-NO |
 Pepperl+Fuchs, Inc. | IP67 | 10 VDC | 30 VDC | Nickel-Plated Brass | Cylinder Threaded - M12 | LED | Cable | 70 °C | -25 °C | Inductive | Unshielded | 0.079 " | 3-Wire PNP-NO |
 Pepperl+Fuchs, Inc. | IP67 | 10 VDC | 30 VDC | Polytetrafluoroethylene (PTFE) | Cylinder Threaded - M12 | LED | Connector | 70 °C | -25 °C | Inductive | Unshielded | 0.079 " | 3-Wire PNP-NO |
 Pepperl+Fuchs, Inc. | IP67 | 10 VDC | 30 VDC | Polytetrafluoroethylene (PTFE) | Cylinder Threaded - M12 | LED | Connector | 70 °C | -25 °C | Inductive | Unshielded | 0.079 " | 3-Wire PNP-NO |
 Pepperl+Fuchs, Inc. | IP67 | 10 VDC | 30 VDC | Nickel-Plated Brass | Cylinder Threaded - M12 | LED | Connector | 70 °C | -25 °C | Inductive | Unshielded | 0.079 " | 3-Wire PNP-NO |
 Pepperl+Fuchs, Inc. | IP67 | 10 VDC | 30 VDC | Nickel-Plated Brass | Cylinder Threaded - M12 | LED | Cable | 70 °C | -25 °C | Inductive | Unshielded | 0.079 " | 3-Wire PNP-NO |
 Pepperl+Fuchs, Inc. | IP67 | 10 VDC | 30 VDC | Nickel-Plated Brass | Cylinder Threaded - M12 | LED | Connector | 70 °C | -40 °C | Inductive | Unshielded | 0.079 " | 3-Wire PNP-NO |
 Pepperl+Fuchs, Inc. | IP67 | 10 VDC | 30 VDC | Nickel-Plated Brass | Cylinder Threaded - M12 | LED | Connector | 70 °C | -25 °C | Inductive | Unshielded | 0.079 " | 3-Wire NPN-NO |
