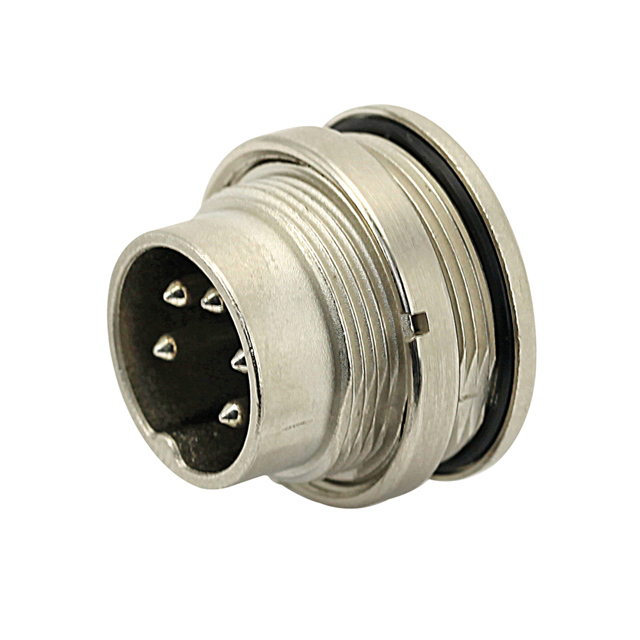

C091 11C012 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
REAR MOUNTING MALE METAL RECEPTA
| Part | Shielding | Shell Size - Insert | Insert Material | Connector Type | Material Flammability Rating | Mounting Feature | Housing Color | Shell Material | Shell Finish | Contact Shape | Ingress Protection Description | Ingress Protection IP Rating | Mounting Type | Type | Orientation | Number of Positions | Contact Type | Operating Temperature (Max) | Operating Temperature (Min) | Fastening Type | Contact Size | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Shielded | M16-12 | Thermoplastic | Receptacle Housing | UL94 V-0 | Bulkhead Front Side Nut | Silver | Zinc Die Cast | Nickel | Circular | Dust Tight Water Resistant Waterproof | IP65 IP67 | Panel Mount | For Male Pins | Keyed | 12 | Crimp | 100 °C | -40 °C | Threaded | 1 mm | Contacts Not Included |
