2029054 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

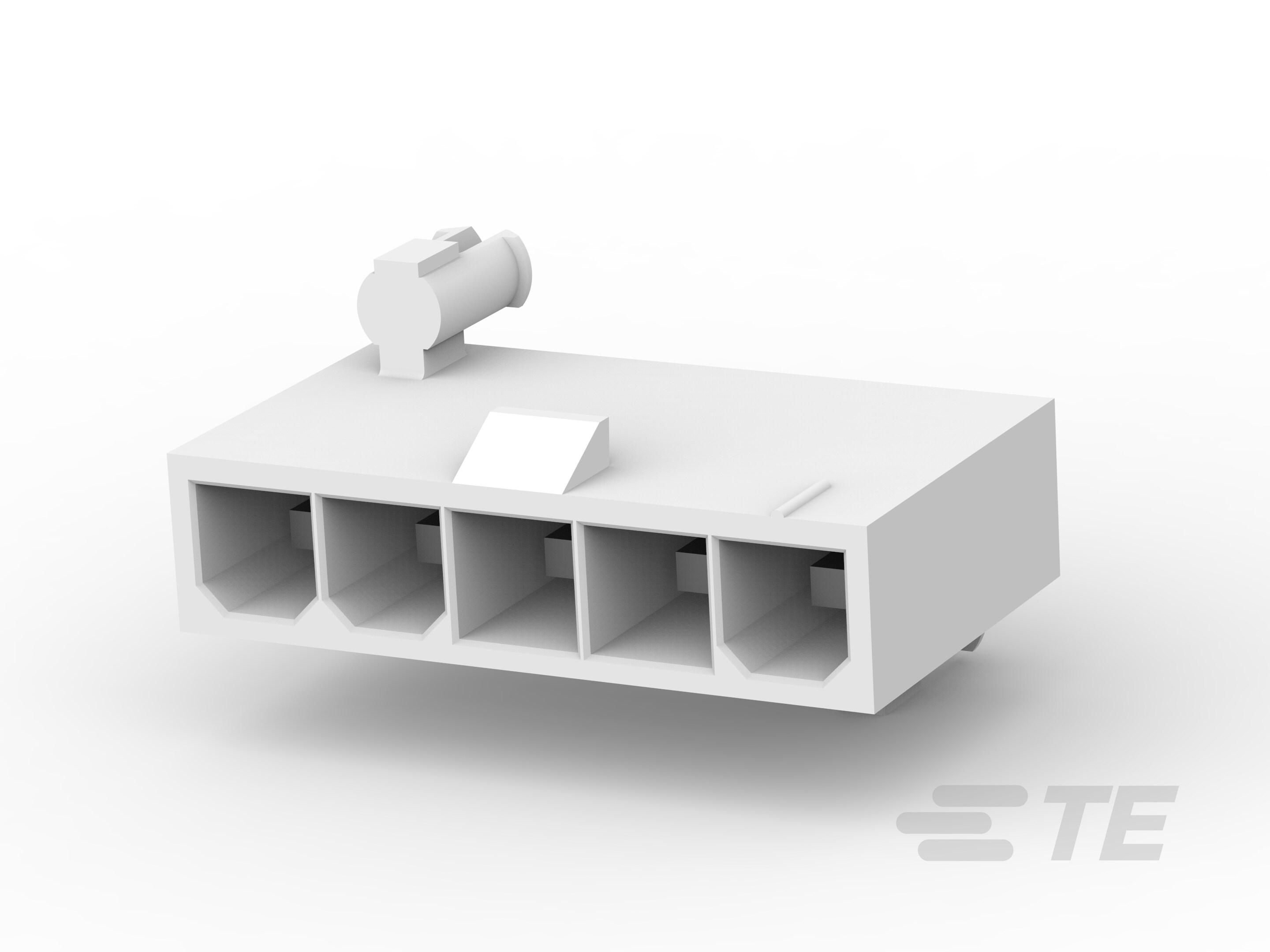

5P VAL-U-LOK SR HDR SN V2 W/DH ROHS COMPLIANT: YES
| Part | Termination | Pitch - Mating | Mounting Type | Shrouding | Contact Shape | Insulation Height | Contact Finish Thickness - Mating | Contact Finish - Post | Number of Positions | Contact Finish - Mating | Number of Rows | Operating Temperature (Min) | Operating Temperature (Max) | Insulation Color | Fastening Type | Connector Type | Contact Length - Post | Contact Material | Voltage Rating | Contact Type | Features | Number of Positions Loaded | Insulation Material | Material Flammability Rating | Current Rating | Style | Applications | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Solder | 0.165 in | Through Hole | Shrouded - 4 Wall | Square | 0.504 in | 80 µin | Tin | 5 | Tin | 1 | -40 °C | 105 °C | Natural | Locking Ramp | Header | 0.138 in | Brass Alloy | 600 V | Male Pin | Board Lock | All | Nylon Polyamide (PA) | UL94 V-2 | 9 A | Board Cable/Wire | General Purpose Industrial Lighting | 80 µin |
