AD9639 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

4-CHANNEL QUAD ADC PIPELINED 210MSPS 12-BIT SERIAL (3-WIRE, 4-WIRE, SPI)/LVDS 72-PIN LFCSP EP T/R

Part	Reference Type	Operating Temperature (Min)	Operating Temperature (Max)	Configuration	Features	Architecture	Ratio - ADC	Ratio - S/H	Number of A/D Converters	Package / Case	Mounting Type	Sampling Rate (Per Second)	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Data Interface	Number of Inputs	Input Type	Package Length	Package Name	Package Width	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Number of Bits	Supplied Contents	Contents	Utilized IC / Part	Power (Typ)	Input Voltage (Value)
Analog Devices Inc./Maxim Integrated AD9639BCPZRL-210	Internal	-40 °C	85 °C	S/H-ADC	Simultaneous Sampling Temperature Sensor	Pipelined	1	1	4 count	72-VFQFN Exposed Pad CSP	Surface Mount	210 MHz	1.7 V	1.9 V	JESD204	4	Differential Single Ended	10 mm	72-LFCSP-VQ	10 mm	1.9 V	1.7 V	12 bits
Analog Devices Inc./Maxim Integrated AD9639BCPZ-170	Internal	-40 °C	85 °C	S/H-ADC	Simultaneous Sampling Temperature Sensor	Pipelined	1	1	4 count	72-VFQFN Exposed Pad CSP	Surface Mount	170 MHz	1.7 V	1.9 V	JESD204	4	Differential Single Ended	10 mm	72-LFCSP-VQ	10 mm	1.9 V	1.7 V	12 bits
Analog Devices Inc./Maxim Integrated AD9639BCPZ-210	Internal	-40 °C	85 °C	S/H-ADC	Simultaneous Sampling Temperature Sensor	Pipelined	1	1	4 count	72-VFQFN Exposed Pad CSP	Surface Mount	210 MHz	1.7 V	1.9 V	JESD204	4	Differential Single Ended	10 mm	72-LFCSP-VQ	10 mm	1.9 V	1.7 V	12 bits
Analog Devices Inc./Maxim Integrated AD9639BCPZRL-170	Internal	-40 °C	85 °C	S/H-ADC	Simultaneous Sampling Temperature Sensor	Pipelined	1	1	4 count	72-VFQFN Exposed Pad CSP	Surface Mount	170 MHz	1.7 V	1.9 V	JESD204	4	Differential Single Ended	10 mm	72-LFCSP-VQ	10 mm	1.9 V	1.7 V	12 bits

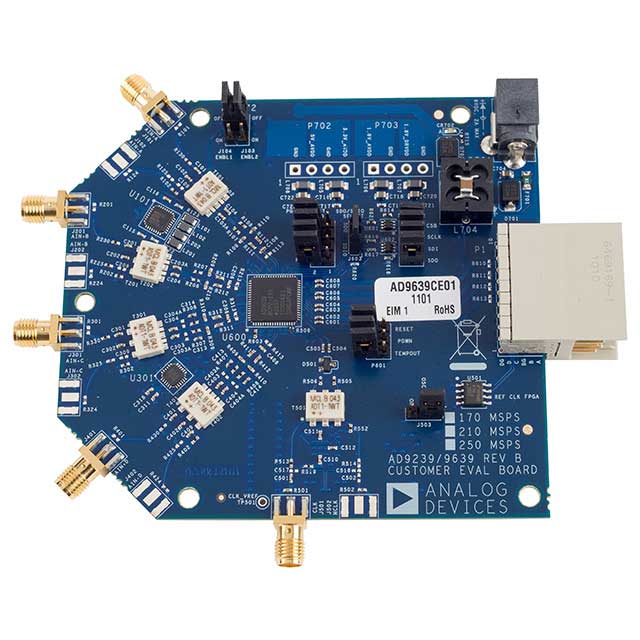

Analog Devices Inc./Maxim Integrated AD9639-210KITZ									4 count			210 MHz			SPI								12 bits	Board(s)	Board	AD9639	1.3 W	1.5 Vpp
