DCNLM50NB24 Series

DCNLM 50A 48V NP 24Vcoil

Catalog

DCNLM 50A 48V NP 24Vcoil

Part	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Switching Voltage DC (Max)	Coil Voltage	Must Release Voltage	Contact Rating (Current)	Form A Count	Contact Form	Must Operate Voltage	Termination Style
LITTELFUSE DCNLM50NB24	-40 °C	70 °C	Chassis Mount	60 VDC	24 VDC	2 VDC	50 A	1	SPST-NO	16.8 VDC	Stud

Catalog

DCNLM 50A 48V NP 24Vcoil

Description

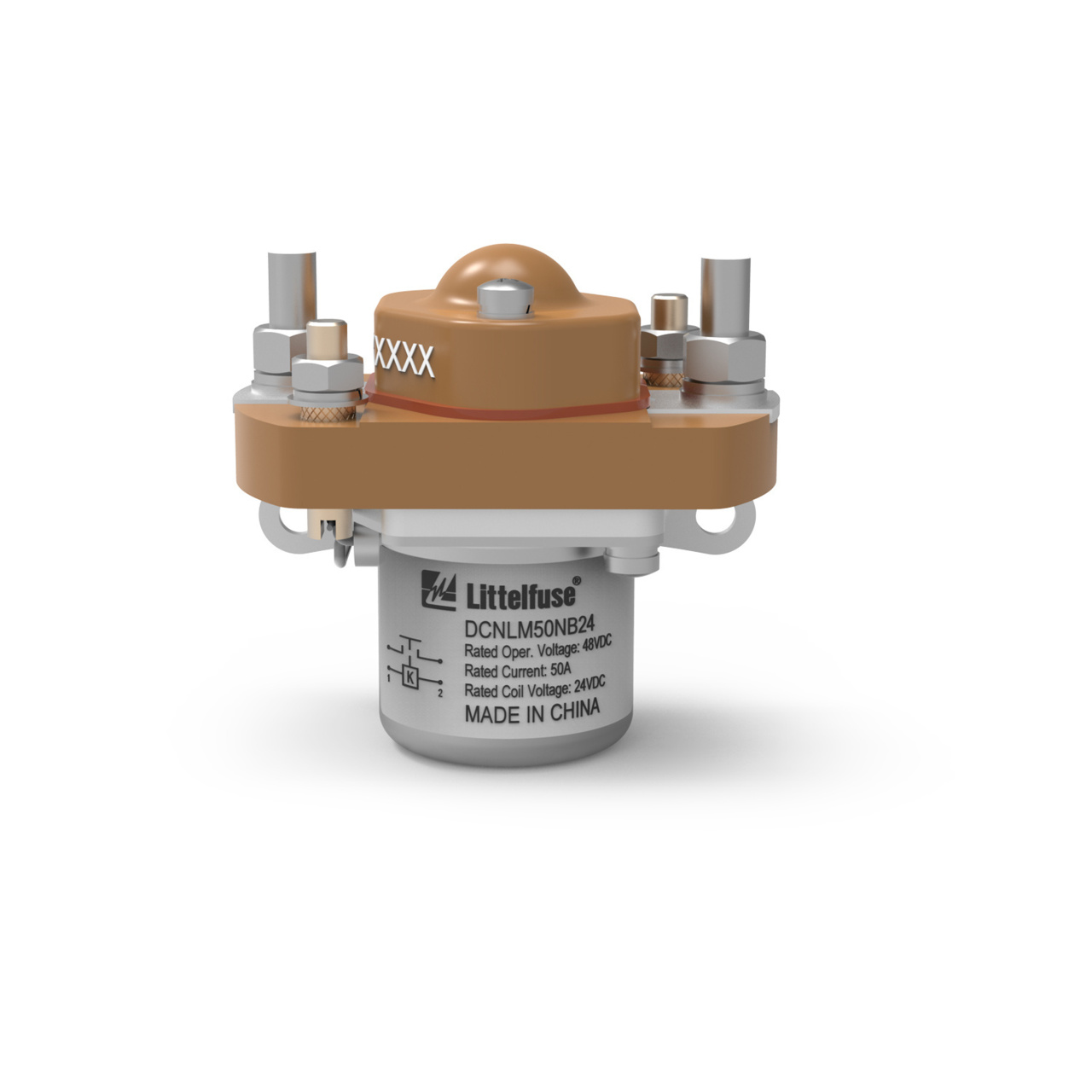

The DCNLM Series 60V DC Contactor Relay features 50A contact switching capability with a 24V coil rating, which is suitable for a wide variety of applications, including use in electrical control systems, communication power supplies, engineering machines, and uninterruptible power supplies (UPS).This configuration of the DCNLM normally open DC contactor (DCNLM50NB24) features 60V non-polarized main contacts.
