RT001619 Series

Catalog

CONN RCPT HSG FMALE 19POS PNL MT

Part	Shell Finish	Contact Size	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Fastening Type	Shell Material	Housing Color	Number of Positions	Type	Mounting Feature	Material Flammability Rating	Orientation	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Connector Type	Contact Type	Note	Contact Shape	Insert Material	Operating Temperature (Min)	Operating Temperature (Max)	Features	Voltage Rating	Contact Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Termination	Applications	Current Rating	Primary Material	Color	Voltage Rating (Type)
McGill Microwave Systems RT001619SNH	Nickel	16 S	Panel Mount	Dust Tight Waterproof	IP67	Shielded	Bayonet Lock	Zinc Alloy	Silver	19	For Female Sockets	Flange	UL94 V-0	N (Normal)	19	16 S	Receptacle Housing	Crimp	Contacts Not Included	Circular	Thermoplastic	-40 °C	105 °C
McGill Microwave Systems RT001619PNHEC03R	Nickel	16 S	Panel Mount	Dust Tight Waterproof	IP67	Shielded	Bayonet Lock	Zinc Alloy	Silver	19	For Male Pins	Flange	UL94 V-0	N (Normal)	19	16 S	Receptacle Housing	Crimp	Contacts Not Included	Circular	Thermoplastic	-40 °C	125 °C	Backshell

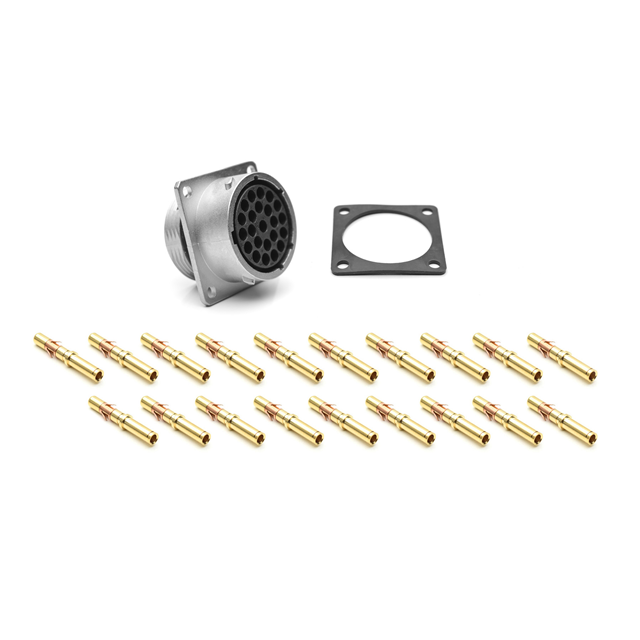

McGill Microwave Systems RT001619SKNH03-K	Nickel		Panel Mount	Dust Tight Water Resistant Waterproof	IP67 IP69K	Shielded	Bayonet Lock	Zinc Die Cast		19		Flange	UL94 V-0	N (Normal)	19	16 S	Female Sockets Receptacle				Nylon 6/6 PA66 Polyamide	-40 °C	105 °C		250 V	Brass	Gold	Flash	Crimp	Aerospace Automation Industrial Telecom Transportation	13 A	Metal	Silver
McGill Microwave Systems RT001619PNHECR	Nickel	16 S	Panel Mount	Dust Tight Waterproof	IP67	Shielded	Bayonet Lock	Zinc Alloy	Silver	19	For Male Pins	Flange	UL94 V-0	N (Normal)	19	16 S	Receptacle Housing	Crimp	Contacts Not Included	Circular	Thermoplastic	-40 °C	105 °C	Cap (Cover)								Metal
McGill Microwave Systems RT001619SNHEC	Nickel	16 S	Panel Mount	Dust Tight Waterproof	IP67	Shielded	Bayonet Lock	Zinc Alloy	Silver	19	For Female Sockets	Flange	UL94 V-0	N (Normal)	19	16 S	Receptacle Housing	Crimp	Contacts Not Included	Circular	Thermoplastic	-40 °C	105 °C	Backshell

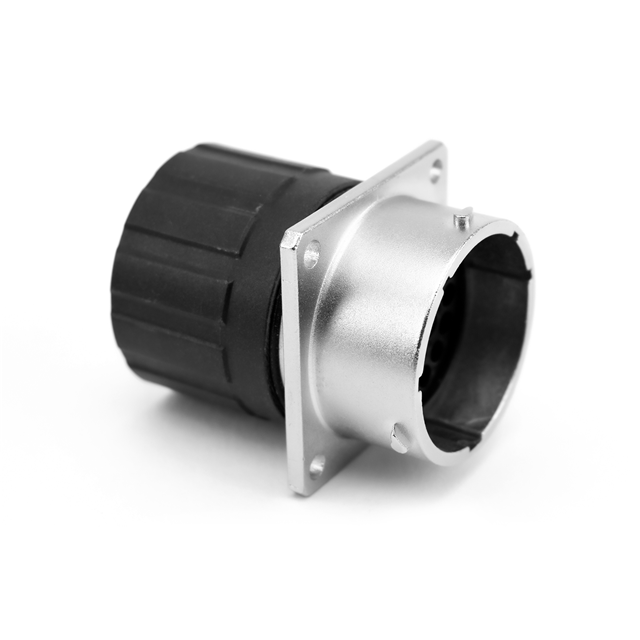

McGill Microwave Systems RT001619PNHEC	Nickel	16 S	Panel Mount	Dust Tight Waterproof	IP67	Shielded	Bayonet Lock	Zinc Alloy	Silver	19	For Male Pins	Flange	UL94 V-0	N (Normal)	19	16 S	Receptacle Housing	Crimp	Contacts Not Included	Circular	Thermoplastic	-40 °C	105 °C	Backshell
McGill Microwave Systems RT001619PNH-K	Nickel		Panel Mount	Dust Tight Waterproof	IP67		Bayonet Lock	Zinc Die Cast		19		Flange		N (Normal)	19	16 S	Male Pins Receptacle					-40 °C	105 °C		250 V		Gold	Flash	Crimp		13 A	Metal	Silver	DC

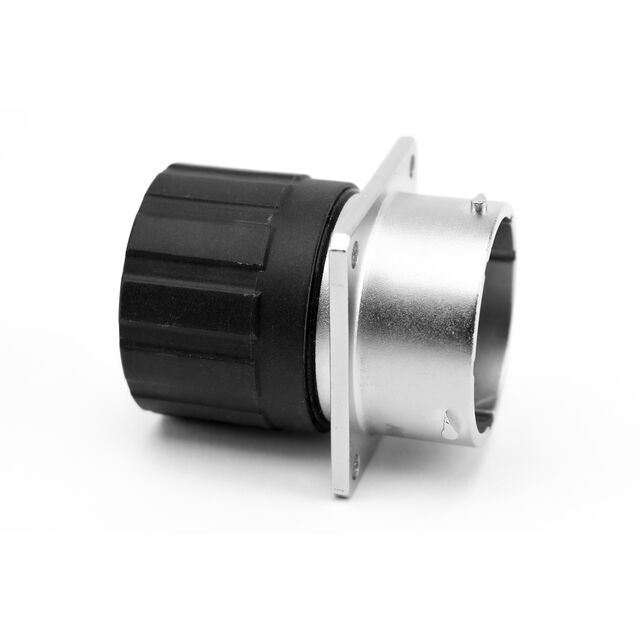

McGill Microwave Systems RT001619SNHECR	Nickel	16 S	Panel Mount	Dust Tight Waterproof	IP67	Shielded	Bayonet Lock	Zinc Alloy	Silver	19	For Female Sockets	Flange	UL94 V-0	N (Normal)	19	16 S	Receptacle Housing	Crimp	Contacts Not Included	Circular	Thermoplastic	-40 °C	105 °C	Cap (Cover)								Metal
McGill Microwave Systems RT001619PNH03	Nickel	16 S	Panel Mount	Dust Tight Waterproof	IP67	Shielded	Bayonet Lock	Zinc Alloy	Silver	19	For Male Pins	Flange	UL94 V-0	N (Normal)	19	16 S	Receptacle Housing	Crimp	Contacts Not Included	Circular	Thermoplastic	-40 °C	125 °C

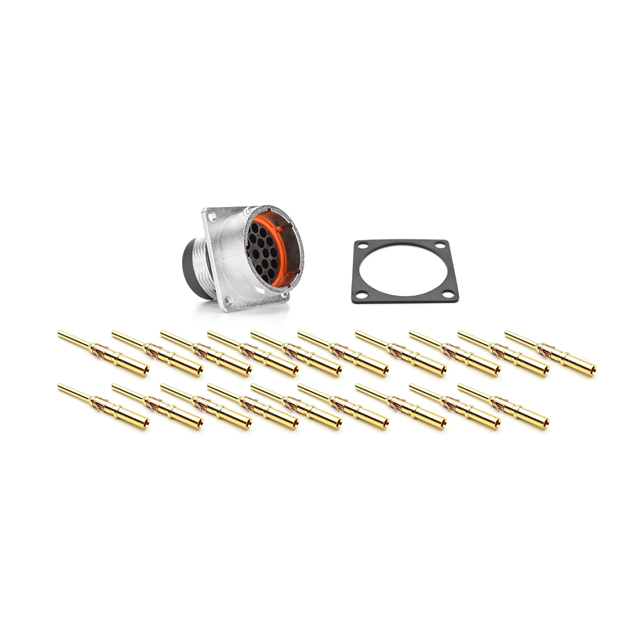

McGill Microwave Systems RT001619PKNH03-K	Nickel		Panel Mount	Dust Tight Water Resistant Waterproof	IP67 IP69K	Shielded	Bayonet Lock	Zinc Die Cast		19		Flange	UL94 V-0	N (Normal)	19	16 S	Male Pins Receptacle				Nylon 6/6 PA66 Polyamide	-40 °C	105 °C		250 V	Brass	Gold	Flash	Crimp	Aerospace Automation Industrial Telecom Transportation	13 A	Metal	Silver
