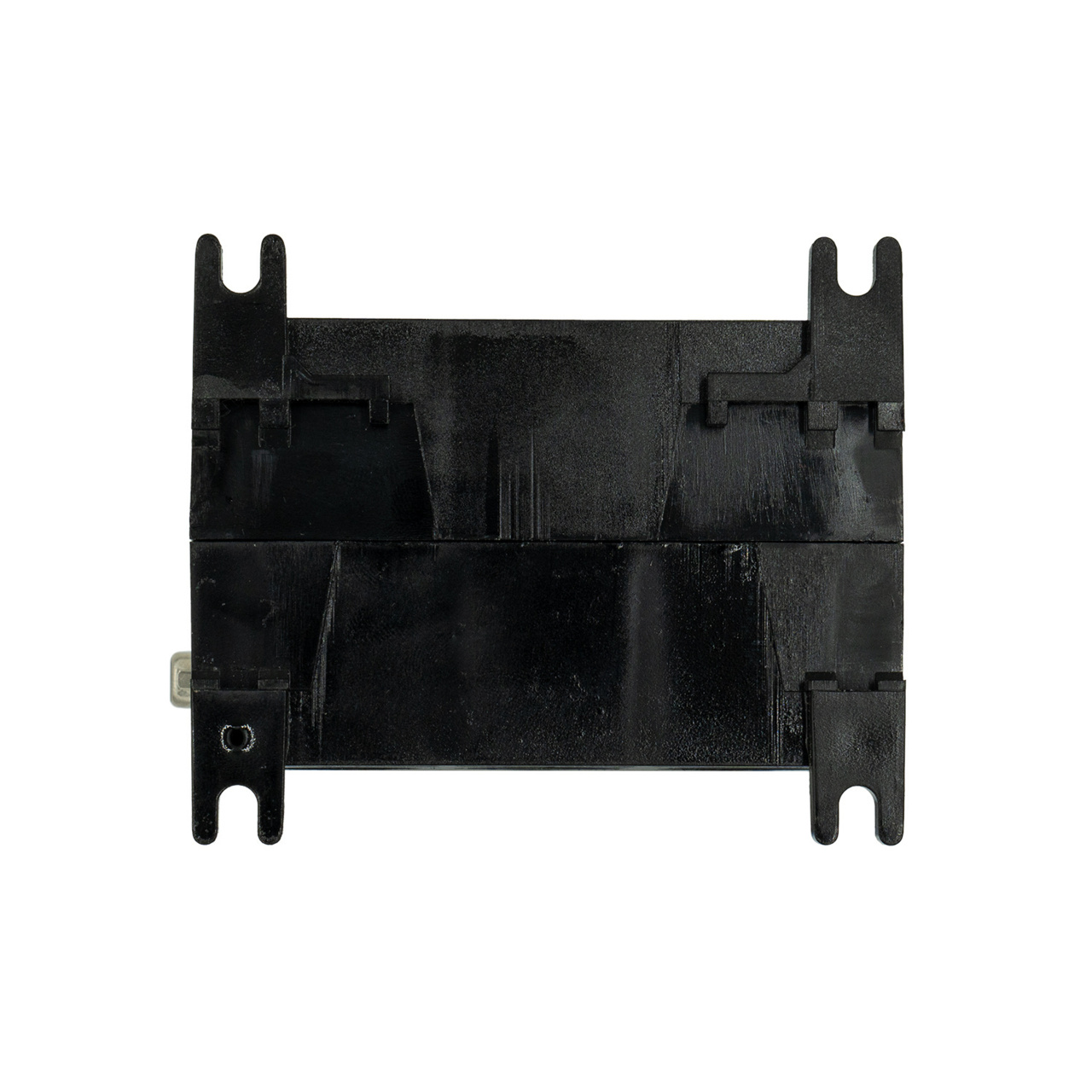

777-HRG-P2 Series

3-PH OLR/200-480V/2-90FLA/

Catalog

3-PH OLR/200-480V/2-90FLA/

Part	Delay Time (Minimum)	Delay Time (Maximum)	Function	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Termination Style	Trip Voltage (Min)	Trip Voltage (Max)	Trip Current (Min)	Trip Current (Max)	Mounting Type
LITTELFUSE 777-HRG-P2	0 Sec	999 Sec	Multiple	70 °C	-20 °C	480 VAC	200 VAC	Screw Terminal	170 VAC	660 VAC	2 A	90 A	Chassis Mount

Catalog

3-PH OLR/200-480V/2-90FLA/

Description

The 777-HRG-P2 three-phase current and voltage monitor provides motor protection with input voltage from 200–480 V ac and motor full load ampere range of 2–20 A (looped conductors required); 20–90 A direct.
