55148 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

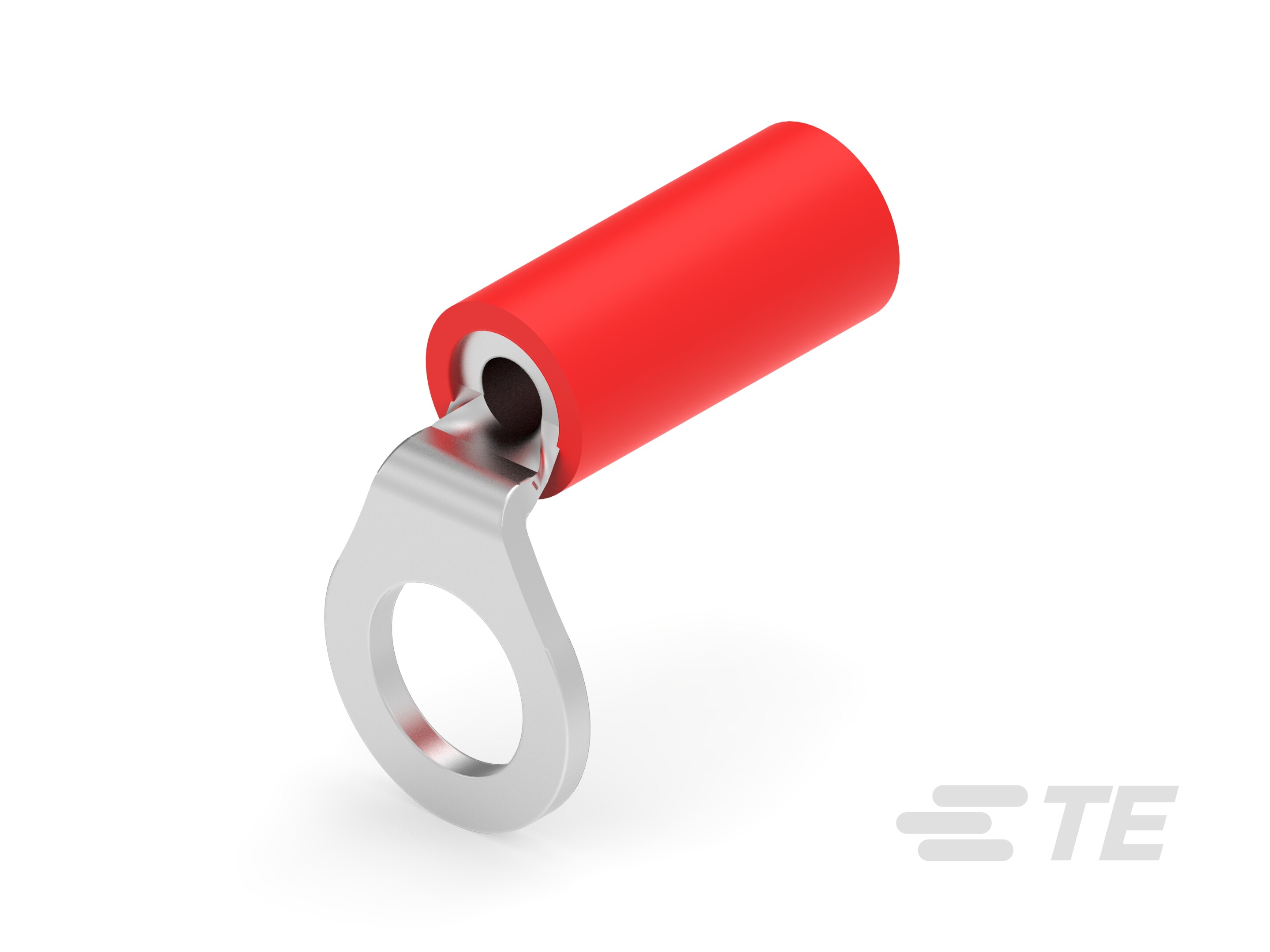

RING TONGUE TERMINAL 16-22AWG COPPER RED TIN PIDG™ LOOSE
| Part | Material - Insulation | Insulation Diameter (Min) | Insulation Diameter (Max) | Color | Terminal Type | Mounting Type | Contact Material | Thickness | Termination | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Features | Width - Outer Edges | Stud/Tab Size | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Poly-Vinyl Chloride PVC | 0.105 in | 0.14 in | Red | Circular | Free Hanging (In-Line) Right Angle | Copper | 0.031 in | Crimb Flag | 16 AWG | 22 AWG | Serrated Termination | 0.31 in | 10 Stud | Insulated |
