1761184 Series

Catalog

I/O CONNECTOR, 16 CONTACTS, PLUG, SDL, IDC / IDT, 50 SERIES, CABLE MOUNT

Part	Contact Finish	Contact Material	Contact Finish Thickness	Housing Material	Wire Gauge	Voltage Rating	Current Rating	Shield Material	Length	Number of Positions	Features	Connector Type	Color	Shielding	Cable Type	Termination
TE Connectivity AMP Connectors 5-1761184-6	Gold	Copper Alloy	50 µin	PC Polycarbonate	24 AWG	30 V	1.5 A	Brass	0.89 in	16	Keyed	Plug SDL	Clear Gray	Shielded	Ribbon	Crimp
TE Connectivity AMP Connectors 5-1761184-3	Gold	Copper Alloy	50 µin	PC Polycarbonate	24 AWG	30 V	1.5 A	Brass	0.89 in	8	Keyed	Plug SDL	Clear Gray	Shielded	Ribbon	Crimp

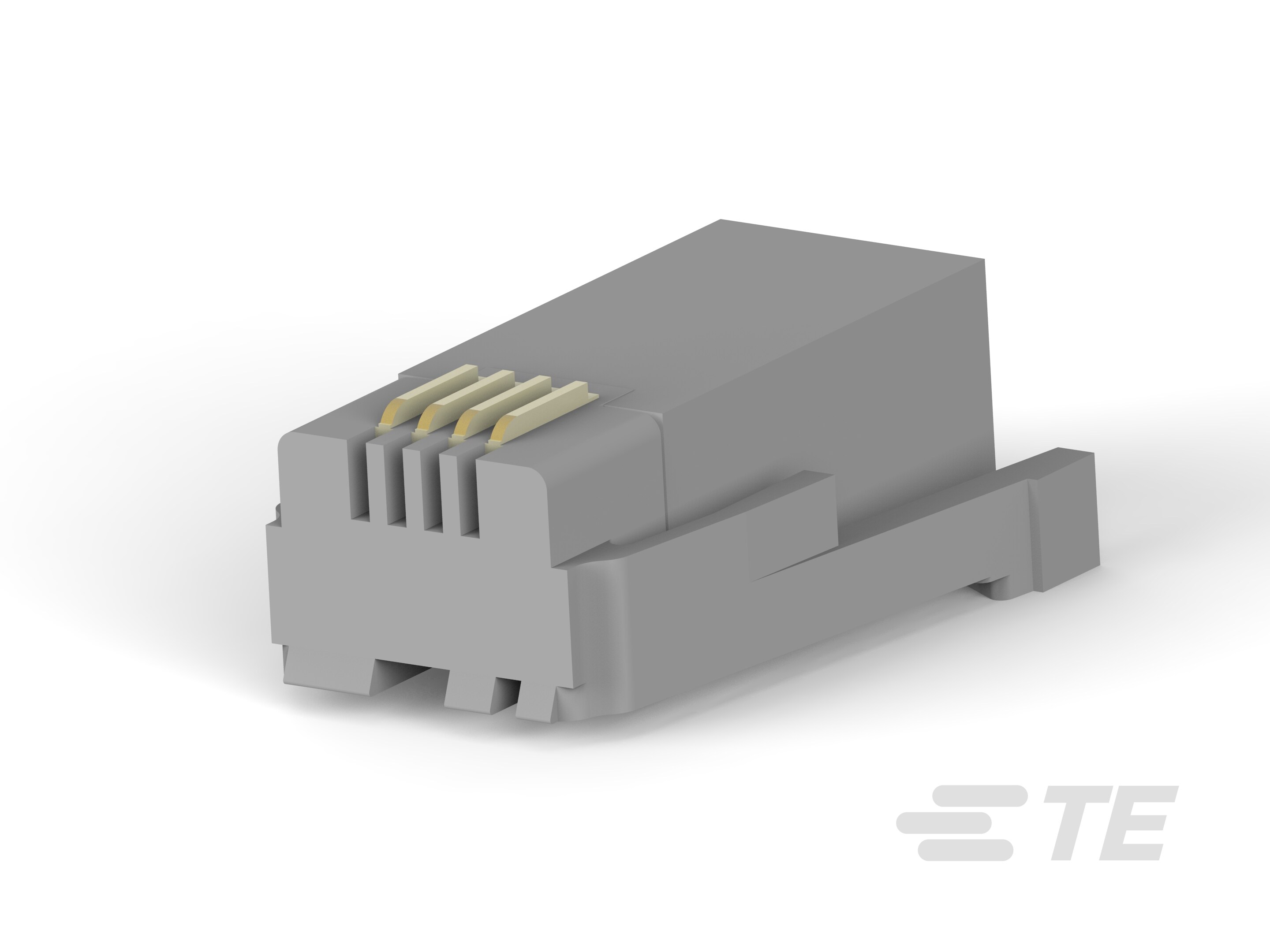

TE Connectivity AMP Connectors 5-1761184-1	Gold	Copper Alloy	50 µin	PC Polycarbonate	24 AWG	30 V	1.5 A	Brass	0.89 in	4	Keyed	Plug SDL	Clear Gray	Shielded	Ribbon	Crimp
TE Connectivity AMP Connectors 4-1761184-1	Gold	Copper Alloy	50 µin	PC Polycarbonate	24 AWG	30 V	1.5 A	Brass	0.89 in	4	Keyed	Plug SDL	Clear Gray	Shielded	Ribbon	Crimp
TE Connectivity AMP Connectors 1-1761184-3	Gold	Copper Alloy	50 µin	PC Polycarbonate	24 AWG	30 V	1.5 A	Brass	0.89 in	8	Keyed	Plug SDL	Clear Gray	Shielded	Ribbon	Crimp
TE Connectivity AMP Connectors 1-1761184-1	Gold	Copper Alloy	50 µin	PC Polycarbonate	24 AWG	30 V	1.5 A	Brass	0.89 in	4	Keyed	Plug SDL	Clear Gray	Shielded	Ribbon	Crimp
TE Connectivity AMP Connectors 5-1761184-2	Gold	Copper Alloy	50 µin	PC Polycarbonate	24 AWG	30 V	1.5 A	Brass	0.89 in	6	Keyed	Plug SDL	Clear Gray	Shielded	Ribbon	Crimp
