74LVC162245A Series

Catalog

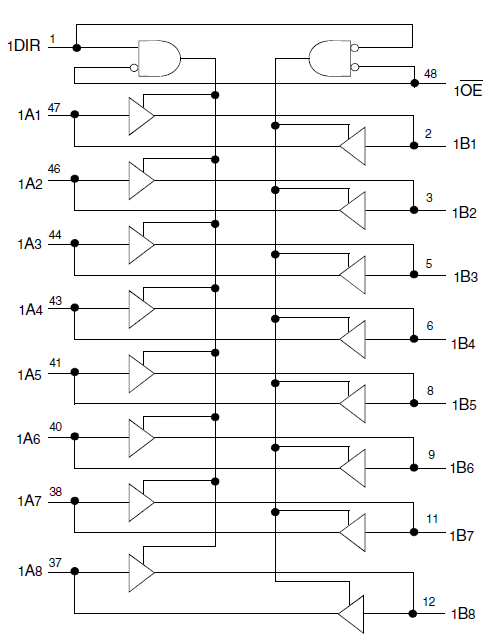

3.3V CMOS 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS AND 5.0V TOLERANT I/O

Part	Number of Elements	Current - Output Low (Min)	Current - Output High (Min)	Current - Output High (Max)	Current - Output Low (Max)	Logic Type	Operating Temperature (Max)	Operating Temperature (Min)	Package Name	Package Length	Package Width	Number of Bits per Element	Output Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Mounting Type
Renesas Electronics Corporation 74LVC162245APAG8	2	24 mA	12 mA	12 mA	24 mA	Non-Inverting Transceiver	85 °C	-40 °C	48-TFSOP 48-TSSOP	0.24 in	6.1 mm	8 bits	3-State	3.6 V	2.7 V	Surface Mount
Renesas Electronics Corporation 74LVC162245APFG8	2	24 mA	12 mA	12 mA	24 mA	Non-Inverting Transceiver	85 °C	-40 °C	48-TFSOP 48-TVSOP	0.173 in	4.4 mm	8 bits	3-State	3.6 V	2.7 V	Surface Mount
Renesas Electronics Corporation 74LVC162245APAG	2	24 mA	12 mA	12 mA	24 mA	Non-Inverting Transceiver	85 °C	-40 °C	48-TFSOP 48-TSSOP	0.24 in	6.1 mm	8 bits	3-State	3.6 V	2.7 V	Surface Mount
Renesas Electronics Corporation 74LVC162245APFG	2	24 mA	12 mA	12 mA	24 mA	Non-Inverting Transceiver	85 °C	-40 °C	48-TFSOP 48-TVSOP	0.173 in	4.4 mm	8 bits	3-State	3.6 V	2.7 V	Surface Mount
Renesas Electronics Corporation 74LVC162245APVG	2	24 mA	12 mA	12 mA	24 mA	Non-Inverting Transceiver	85 °C	-40 °C	48-BSSOP 48-SSOP	0.295 in	7.5 mm	8 bits	3-State	3.6 V	2.7 V	Surface Mount
Renesas Electronics Corporation 74LVC162245APVG8	2	24 mA	12 mA	12 mA	24 mA	Non-Inverting Transceiver	85 °C	-40 °C	48-BSSOP 48-SSOP	0.295 in	7.5 mm	8 bits	3-State	3.6 V	2.7 V	Surface Mount
