V717 Series

Catalog

CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; FEMALE; 10A; 300V

Part	Type	Current - UL	Header Orientation Angle	Header Orientation	Positions Per Level	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - UL	Mounting Type	Pitch	Number of Positions	Features	Contact Mating Finish	Color	Termination Style	Number of Levels	Insulation Height	Housing Material	Contact Tail Length	Contact Material	Material Flammability Rating

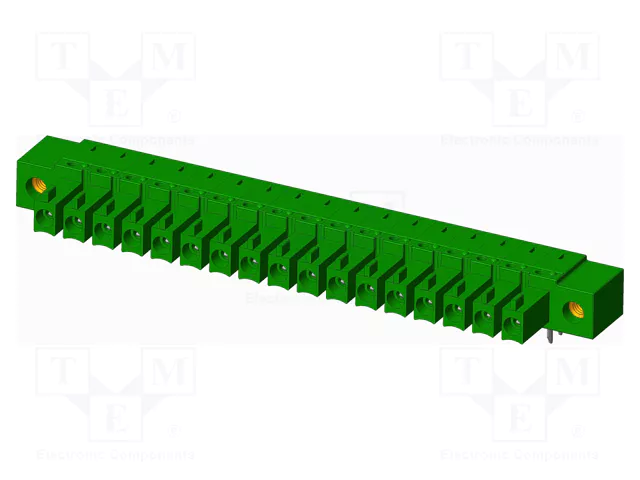

McGill Microwave Systems V71772510000G	Female Sockets Header	10 A	90 °	Right Angle	17	-40 °C	115 °C	300 V	Through Hole	0.197 in	17	Mating Flange Retention Latches	Tin	Green	Solder	1	0.425 in	Thermoplastic	0.138 in	Phosphor Bronze	UL94 V-0

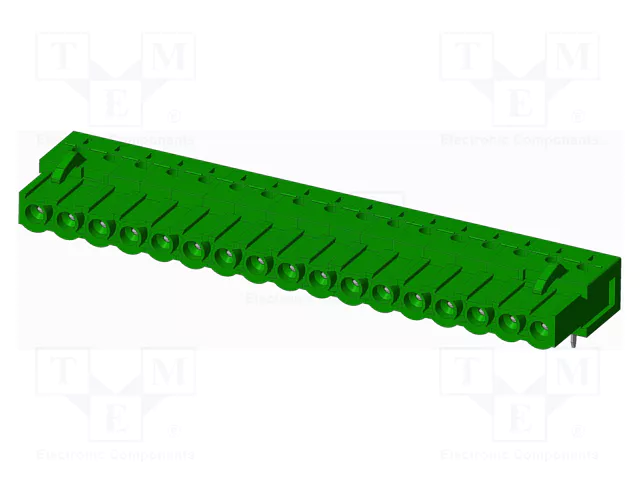

McGill Microwave Systems V71751510000G	Female Sockets Header	20 A	90 °	Right Angle	17	-40 °C	115 °C	300 V	Through Hole	5.08 mm	17	Retention Latches	Tin	Green	Solder	1		Thermoplastic	0.138 in	Copper	UL94 V-0
McGill Microwave Systems V71731510000G	Female Sockets Header	8 A	90 °	Right Angle	17	-40 °C	115 °C	300 V	Through Hole	0.15 in	17		Tin	Green	Solder	1	0.26 in	Thermoplastic	0.134 in	Phosphor Bronze	UL94 V-0

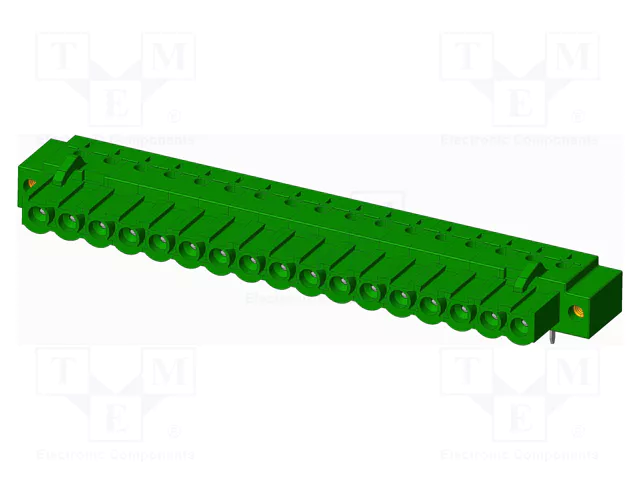

McGill Microwave Systems V71752510000G	Female Sockets Header	20 A	90 °	Right Angle	17	-40 °C	115 °C	300 V	Through Hole	5.08 mm	17	Mating Flange Retention Latches	Tin	Green	Solder	1		Thermoplastic	0.138 in	Copper	UL94 V-0
McGill Microwave Systems V71711510000G	Female Sockets Header	4 A	90 °	Right Angle	17	-40 °C	115 °C	300 V	Through Hole	0.138 in	17		Tin	Green	Solder	1	0.26 in	Thermoplastic	0.134 in	Phosphor Bronze	UL94 V-0
McGill Microwave Systems V71771500000G	Female Sockets Header	10 A		Vertical	17	-40 °C	115 °C	300 V	Through Hole	0.197 in	17	Retention Latches	Tin	Green	Solder	1	0.748 in	Thermoplastic	0.138 in	Phosphor Bronze	UL94 V-0
McGill Microwave Systems V71751500000G	Female Sockets Header	20 A		Vertical	17	-40 °C	115 °C	300 V	Through Hole	5.08 mm	17	Retention Latches	Tin	Green	Solder	1	0.748 in	Thermoplastic	0.138 in	Copper	UL94 V-0
McGill Microwave Systems V71752500000G	Female Sockets Header	20 A		Vertical	17	-40 °C	115 °C	300 V	Through Hole	5.08 mm	17	Mating Flange Retention Latches	Tin	Green	Solder	1	0.748 in	Thermoplastic	0.138 in	Copper	UL94 V-0
McGill Microwave Systems V71731500000G	Female Sockets Header	8 A		Vertical	17	-40 °C	115 °C	300 V	Through Hole	0.15 in	17		Tin	Green	Solder	1	0.571 in	Thermoplastic	0.134 in	Phosphor Bronze	UL94 V-0
McGill Microwave Systems V71732510000G	Female Sockets Header	8 A	90 °	Right Angle	17	-40 °C	115 °C	300 V	Through Hole	0.15 in	17	Mating Flange	Tin	Green	Solder	1	0.268 in	Thermoplastic	0.134 in	Phosphor Bronze	UL94 V-0
