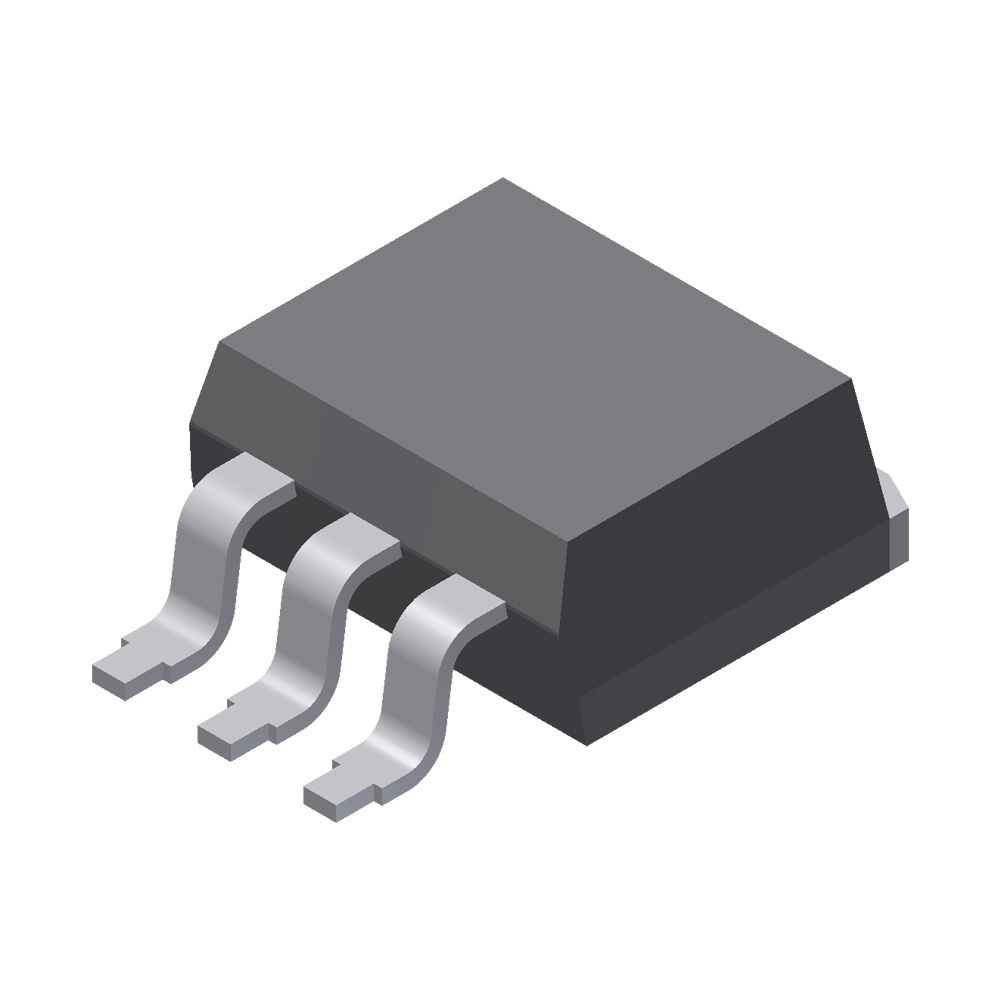

Power Diode Discretes-Rectifier TO-263D2

Part	Package Name	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Package / Case	Mounting Type	Current - Reverse Leakage	Diode Pair Count	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Technology	Voltage - Forward (Vf) (Max)	Speed - Fast Recovery (Minimum)	Speed	Speed - Recovery Current	Speed - Recovery Time	Voltage - DC Reverse (Vr) (Max)
LITTELFUSE DSP8-12A	TO-220-3	175 °C	-55 °C	TO-220-3	Through Hole	5 µA	1 pair	Series Connection	11 A	Standard	1.15 V	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	1200 V
LITTELFUSE DSP8-08A	TO-220-3	175 °C	-55 °C	TO-220-3	Through Hole	5 µA	1 pair	Series Connection	11 A	Standard	1.15 V	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	800 V
LITTELFUSE DSP8-08S-TRL	TO-263AA	175 °C	-55 °C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	5 µA	1 pair	Series Connection	11 A	Standard	1.15 V	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	800 V
LITTELFUSE DSP8-12AS-TUB	TO-263 (D2PAK)	150 °C	-55 °C	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	Surface Mount	10 µA	1 pair	Series Connection	8 A	Standard	1.35 V	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	1200 V
LITTELFUSE DSP8-08S-TUB	TO-263AA	150 °C	-55 °C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	10 µA	1 pair	Series Connection	8 A	Standard	1.35 V	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	800 V
LITTELFUSE DSP8-12AC	ISOPLUS220™	150 °C	-40 °C	ISOPLUS220™	Through Hole	10 µA	1 pair	Series Connection	11 A	Standard	1.22 V	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	1200 V
LITTELFUSE DSP8-12S-TRL	TO-263AA	175 °C	-55 °C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	5 µA	1 pair	Series Connection	11 A	Standard	1.15 V	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	1200 V
LITTELFUSE DSP8-12S-TUB	TO-263AA	175 °C	-55 °C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	5 µA	1 pair	Series Connection	11 A	Standard	1.15 V	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	1200 V
LITTELFUSE DSP8-08AS-TUB	TO-263 (D2PAK)	175 °C	-55 °C	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	Surface Mount	5 µA	1 pair	Series Connection	11 A	Standard	1.15 V	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	800 V
LITTELFUSE DSP8-12AS-TRL	TO-263 (D2PAK)	175 °C	-55 °C	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	Surface Mount	5 µA	1 pair	Series Connection	11 A	Standard	1.15 V	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	1200 V
