MHDAS2M Series

Catalog

MICRO HDAS 26 MALE CRIMP CONTACT

Part	Mounting Type	Fastening Type	Wire Gauge	Number of Positions	Connector Type	Color	Contact Finish	Cable Termination	Number of Rows	Contact Finish Thickness	Features	Wire Type	Row Spacing	Pitch	Contact Type	Insulation Material	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Positions Loaded	Style	Contact Material	Contact Finish - Mating	Insulation Color	Current Rating (Per Contact)	Material Flammability Rating	Insulation Height	Shrouding	Contact Length - Post	Contact Shape	Pitch - Mating	Voltage Rating	Contact Length - Mating	Row Spacing - Mating	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)

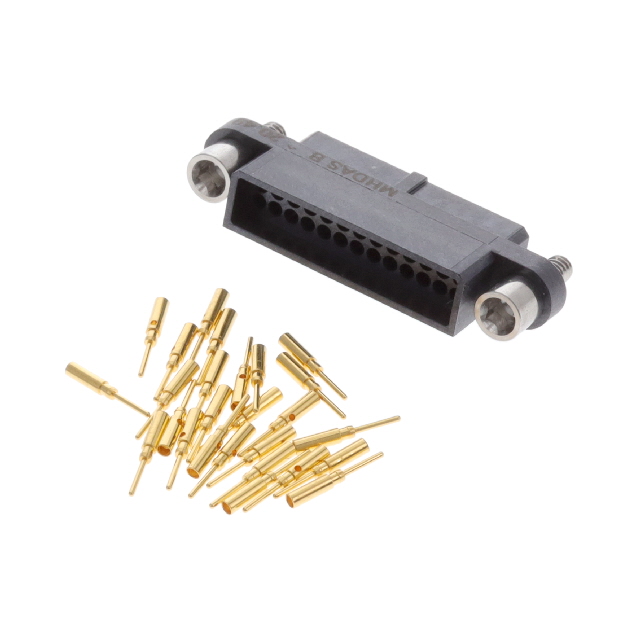

McGill Microwave Systems MHDAS2M026BE01	Free Hanging (In-Line)	Threaded	26 AWG	26	Header	Black	Gold	Crimp	2	29.5 µin	Guide Pin Polarizing Key	Discrete	0.05 in	0.05 in	Male Pin
McGill Microwave Systems MHDAS2M020YDE60	Through Hole	Threaded		20	Header				2		Mating Flange Mounting Flange Polarizing Key				Male Pin	Glass Filled Liquid Crystal Polymer (LCP)	29.5 Ąin	Gold	All	Board Board or Cable	Copper Alloy	Gold	Black	3 A	UL94 V-0	0.207 in	Shrouded - 4 Wall	0.118 in	Circular	0.05 in	750 VDC	0.128 in	0.05 in	Solder	-65 °C	150 °C

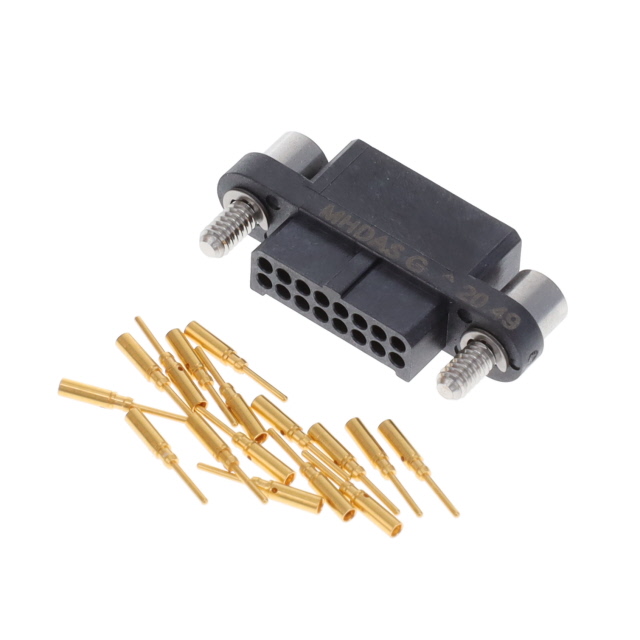

McGill Microwave Systems MHDAS2M016GE01	Free Hanging (In-Line)	Threaded		16	Header	Black	Gold	Crimp	2	29.5 µin	Guide Pin Polarizing Key	Discrete	0.05 in	0.05 in	Male Pin																						27.5 AWG	30 AWG

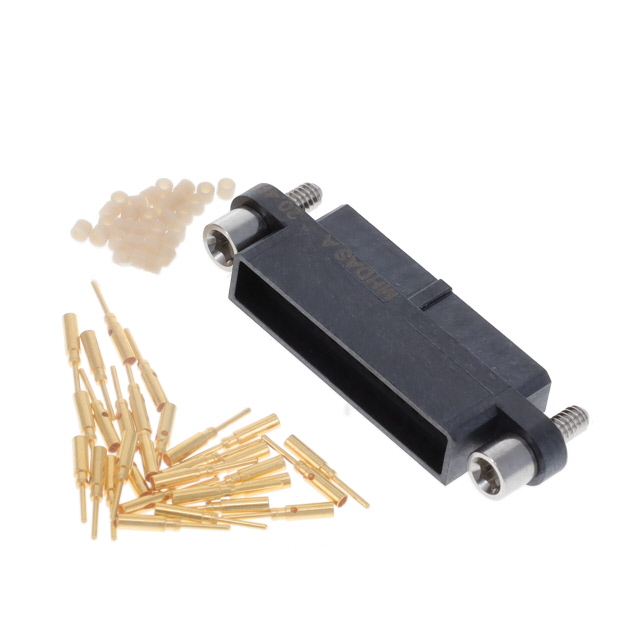

McGill Microwave Systems MHDAS2M030AE01	Free Hanging (In-Line)	Threaded	24 AWG	30	Header	Black	Gold	Crimp	2	29.5 µin	Guide Pin Polarizing Key	Discrete	0.05 in	0.05 in	Male Pin
