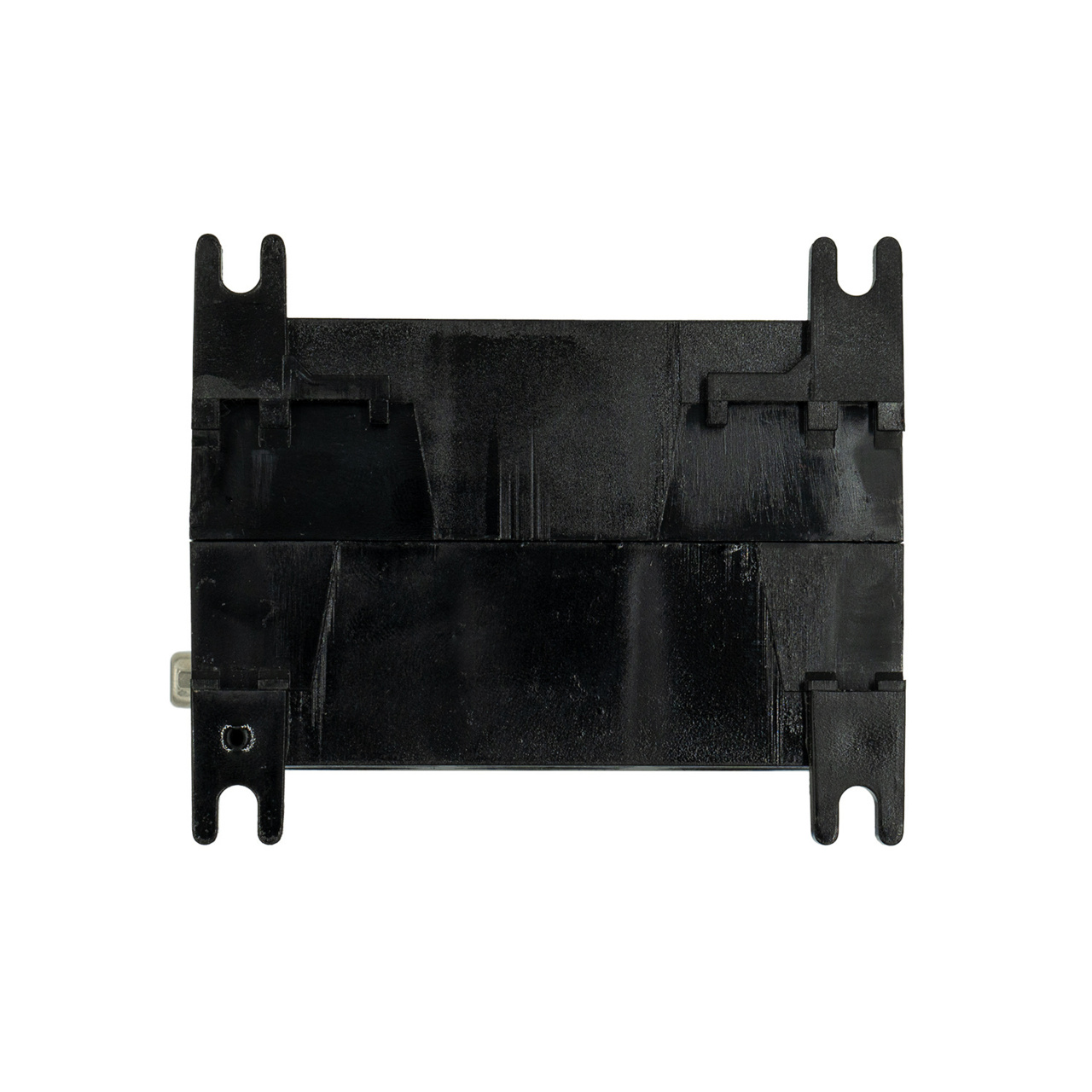

777-LR-P2 Series

3-PHASE OVERLOAD RELAY/200-480

Catalog

3-PHASE OVERLOAD RELAY/200-480

Part	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Max)	Operating Temperature (Min)	Trip Voltage (Max)	Trip Voltage (Min)
LITTELFUSE 777-LR-P2	Chassis Mount	480 VAC	200 VAC	70 °C	-20 °C	480 V	200 V

Catalog

3-PHASE OVERLOAD RELAY/200-480

Description

The 777-LR-P2 three-phase current and voltage monitor provides motor protection with input voltage from 200–480 V ac and motor full load ampere range of 1–9 A (direct); 10–800 A (external CTs required).
