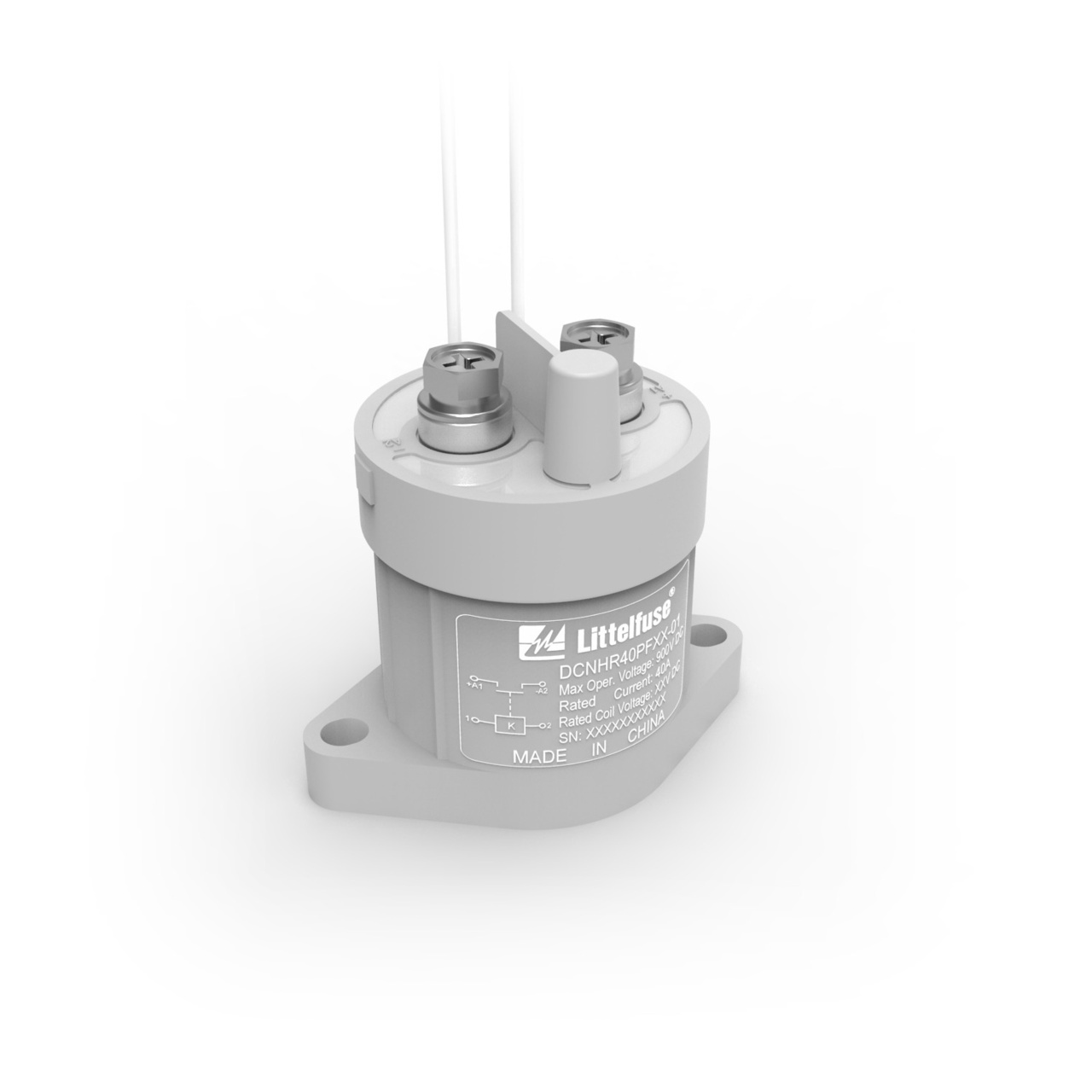

DCNHR40PF12-01 Series

DCNHR 40A 450V P 12Vcoil Internal thread

Catalog

DCNHR 40A 450V P 12Vcoil Internal thread

Part	Contact Rating (Current)	Must Release Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Form A Count	Contact Form	Must Operate Voltage	Termination Style	Mounting Type	Coil Voltage	Switching Voltage DC (Max)
LITTELFUSE DCNHR40PF12-01	40 A	1 VDC	-40 °C	85 °C	1	SPST-NO	9 VDC	Stud Wire Leads	Chassis Mount	12 VAC	900 VDC

Catalog

DCNHR 40A 450V P 12Vcoil Internal thread

Description

The DCNHR Series 900V Max High-Voltage DC Contactor Relay is normally open with a low-power coil in a corrosion-resistant housing for use in harsh vehicle environments. The contactor's permanent magnet helps to achieve a high-voltage DC cutoff.This DCNHR Series contactor relay (DCNHR40PF12-01) is for 40A contact switching and features polarized main contacts and a 12V coil. In addition, this model features contact terminals with an internal thread.
