53410 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

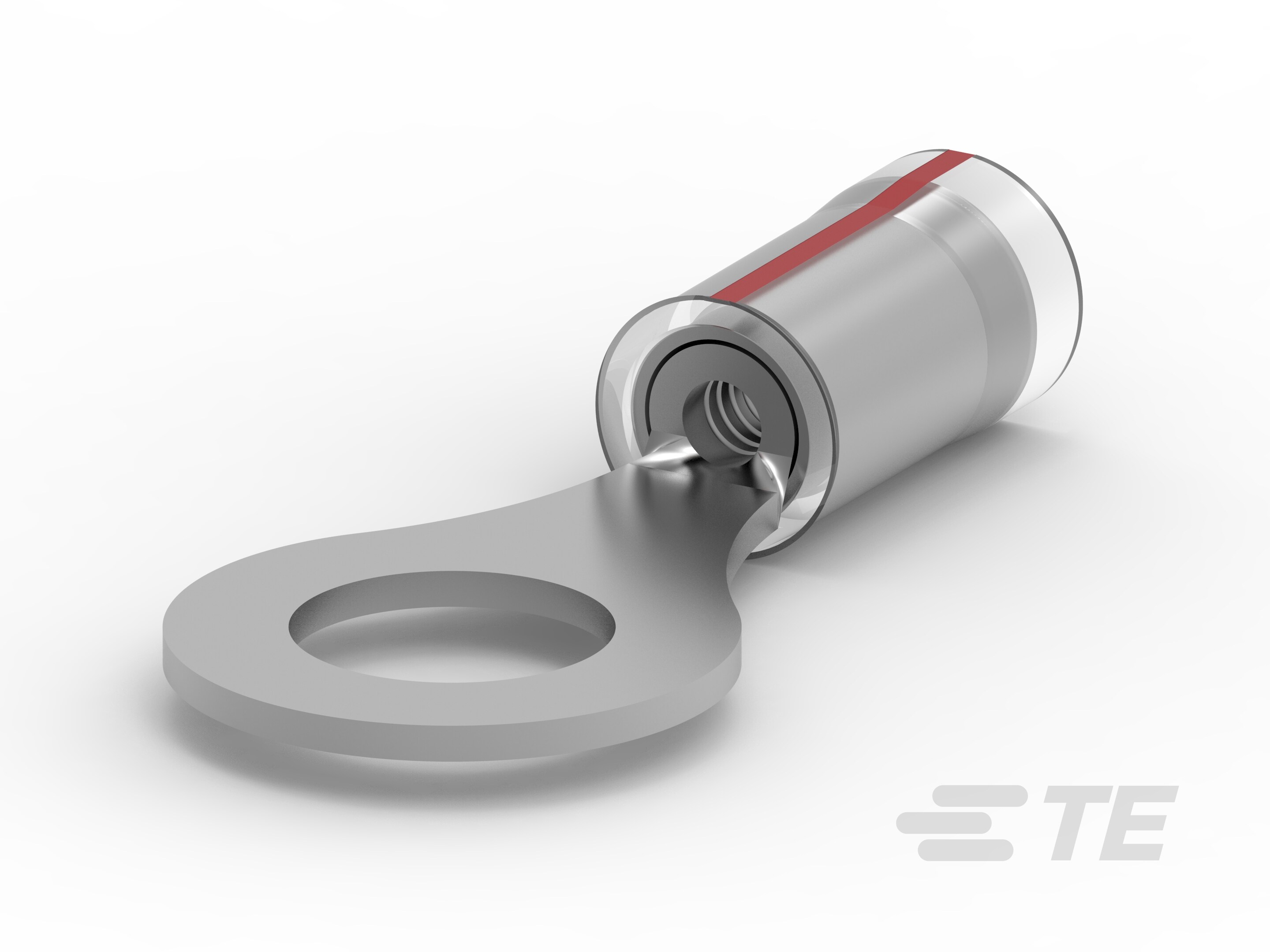

TERMINAL,PIDG PVF2 R 22-16 1/4
| Part | Features | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Mounting Type | Terminal Type | Stud/Tab Size | Width - Outer Edges | Length - Overall | Termination | Color | Insulation | Contact Material | Thickness | Contact Finish | Insulation Diameter (Min) | Insulation Diameter (Max) | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Radiation Resistant | 16 AWG | 22 AWG | Free Hanging (In-Line) | Circular | 0.25 Stud | 0.469 in | 1.078 in | Crimp | Natural Red Stripe | Insulated | Copper | 0.031 in | Tin-Lead | 0.08 in | 0.125 in | Polyvinylidene Fluoride PVDF |
 TE Connectivity AMP Connectors | Radiation Resistant Serrated Termination | 16 AWG | 22 AWG | Free Hanging (In-Line) | Circular | 0.25 Stud | 0.469 in | 1.078 in | Crimp | Natural Red Stripe | Insulated | Copper | 0.031 in | Tin-Lead | 0.08 in | 0.125 in | Polyvinylidene Fluoride PVDF |
