12-05PMMS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

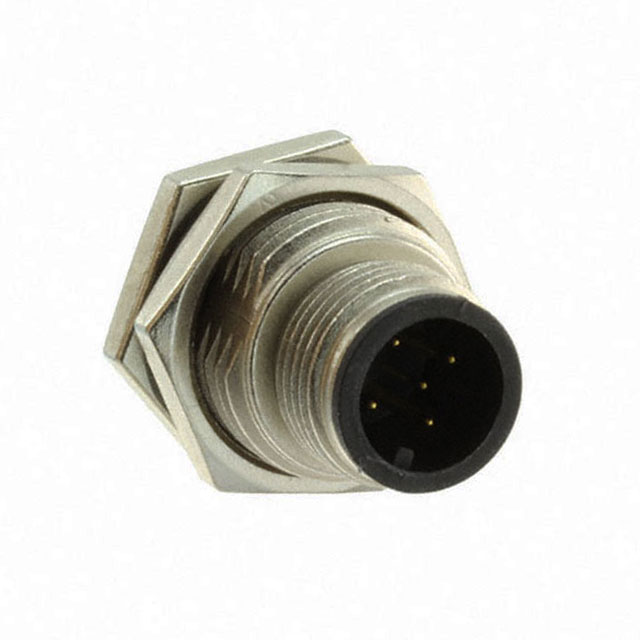

CONN RCPT MALE 5P GOLD SLDR CUP
| Part | Insert Material | Number of Positions | Termination | Mounting Type | Connector Type | Fastening Type | Shielding | Orientation | Current Rating | Shell Material | Shell Finish | Shell Size - Insert | Mounting Feature | Color | Ingress Protection IP Rating | Ingress Protection Description | Backshell Material, Plating | Contact Finish - Mating | Operating Temperature (Min) | Operating Temperature (Max) | Primary Material | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
McGill Microwave Systems | Glass Filled Nylon PA Polyamide | 5 | Solder Cup | Panel Mount | Male Pins Receptacle | Threaded | Shielded | A | 4 A | Zinc Alloy | Nickel | M12-5 | Bulkhead Rear Side Nut | Silver | IP68 | Dust Tight Waterproof | Copper Alloy | Gold | -40 °C | 105 °C | Metal | |
 McGill Microwave Systems | Glass Filled Nylon PA Polyamide | 5 | Solder Cup | Panel Mount | Male Pins Plug | Threaded | Shielded | A | 4 A | Zinc Alloy | Nickel | M12-5 | Bulkhead Front Side Nut | Silver | IP68 | Dust Tight Waterproof | Gold | -40 °C | 105 °C | Metal | Copper Alloy |
