031-68 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
RF CONNECTOR TNC STRAIGHT CRIMP
| Part | Number of Ports | Housing Color | Fastening Type | Center Contact Material | Mounting Type | Contact Termination | Impedance | Shield Termination | Cable Group | Connector Type | Frequency - Max | Connector Style | Body Material | Mating Cycles | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Center Contact Plating | Body Finish | Includes Total Count | Includes | Mounting Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 1 | Silver | Threaded | Brass | Free Hanging (In-Line) | Solder | 50 Ohm | Crimp | LMR-400 | Male Pin Plug | 8 GHz | TNC | Brass | 500 cycles | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Nickel | ||||
 McGill Microwave Systems | 1 | Silver | Threaded | Brass | Free Hanging (In-Line) | Solder | 50 Ohm | Crimp | LMR-240 | Male Pin Plug | 6000 MHz | TNC | Brass | 500 cycles | -40 °C | 130 °C | Polytetrafluoroethylene (PTFE) | Gold | Nickel | 2 pcs | Connector Ferrule | ||
 McGill Microwave Systems | 1 | Silver | Threaded | Beryllium Copper | Free Hanging (In-Line) | Solder | 50 Ohm | Crimp | LMR-195 | Female Socket Jack | 6000 MHz | TNC | Brass | 500 cycles | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Nickel | 2 pcs | Connector Ferrule | ||
 McGill Microwave Systems | 1 | Silver | Threaded | Brass | Free Hanging (In-Line) | Solder | 50 Ohm | Crimp | LMR-400 | Jack Male Pin | 8 GHz | RP-TNC | Brass | 500 cycles | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Nickel | ||||
 McGill Microwave Systems | 1 | Black | Bayonet Lock | Beryllium Copper | Panel Mount | Crimp | 50 Ohm | Crimp | 196 RG-178 | Female Socket Jack | 4 GHz | BNC | Brass | 500 cycles | -40 °C | 85 °C | Polytetrafluoroethylene (PTFE) | Gold | Chromate | Bulkhead Front Side Nut | |||
 McGill Microwave Systems | 1 | Silver | Threaded | Brass | Free Hanging (In-Line) | Solder | 50 Ohm | Crimp | LMR-195 | Male Pin Plug | 6000 MHz | TNC | Brass | 500 cycles | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Nickel | 2 pcs | Connector Ferrule | ||
 McGill Microwave Systems | 1 | Silver | Threaded | Beryllium Copper | Panel Mount | Solder | 50 Ohm | Solder | Female Socket Jack | 11 GHz | TNC | Brass | 500 cycles | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Nickel | Flange | Extended Insulation | |||

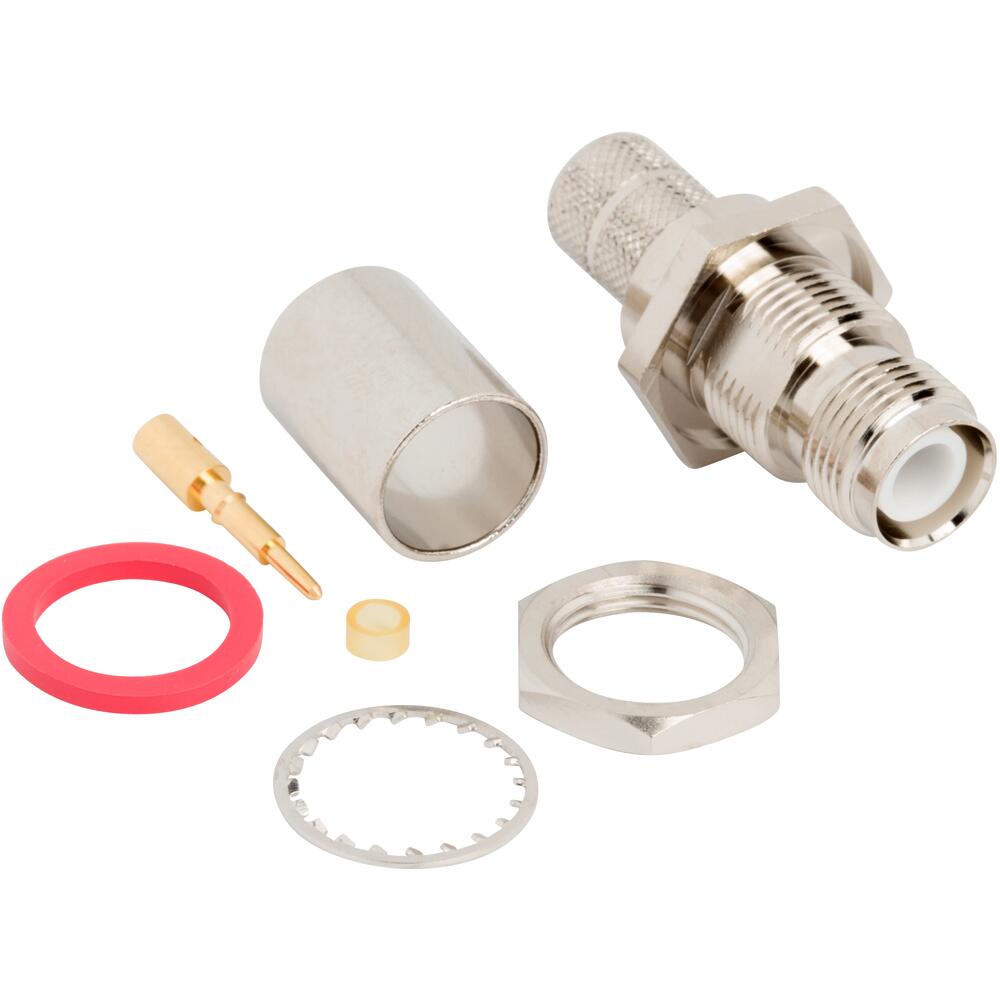

 McGill Microwave Systems | 1 | Silver | Threaded | Brass | Panel Mount | Solder | 50 Ohm | Crimp | LMR-400 | Jack Male Pin | 8 GHz | RP-TNC | Brass | 500 cycles | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Nickel | Bulkhead Front Side Nut | |||
 McGill Microwave Systems | 1 | Silver | Threaded | Beryllium Copper | Free Hanging (In-Line) | Solder | 50 Ohm | Crimp | LMR-400 | Female Socket Plug | 8 GHz | RP-TNC | Brass | 500 cycles | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Nickel | ||||
 McGill Microwave Systems | 1 | Silver | Bayonet Lock | Brass | Free Hanging (In-Line) | Solder | 50 Ohm | Crimp | LMR-240 | Male Pin Plug | 12.4 GHz | BNC | Phosphor Bronze | 500 cycles | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Nickel | 4 pcs | Connector Contact Ferrule Insulator |
