CL103 Series

Catalog

CONN BACKSHELL SZ3 BLACK PG21

Part	For Use With/Related Products	Material Flammability Rating	Color	Material	Features	Ingress Protection IP Rating	Ingress Protection Description	Cable Opening (Min)	Cable Opening (Max)	Shell Size - Insert	Cable Exit Angle	Thread Size	Type	Accessory Type	Ingress Protection	Cable Opening
Amphenol Aerospace Operations CL103021	Clipper Sealed Connectors	UL94 V-0	Black	Thermoplastic	Gasket Sealing Gland	IP68	Dust Tight Waterproof	0.51 in	0.71 in	3	180 °	PG21	Anti-Decoupling Backshell
Amphenol Aerospace Operations CL103000	Commercial Backshell				Unsealed					3				PG Adapter
Amphenol Aerospace Operations CL103051	Clipper Sealed Connectors	UL94 V-0	Black	Thermoplastic	Sealing Gland	IP67	Dust Tight Waterproof	0.51 in	0.71 in	3	90 °	PG21	Backshell

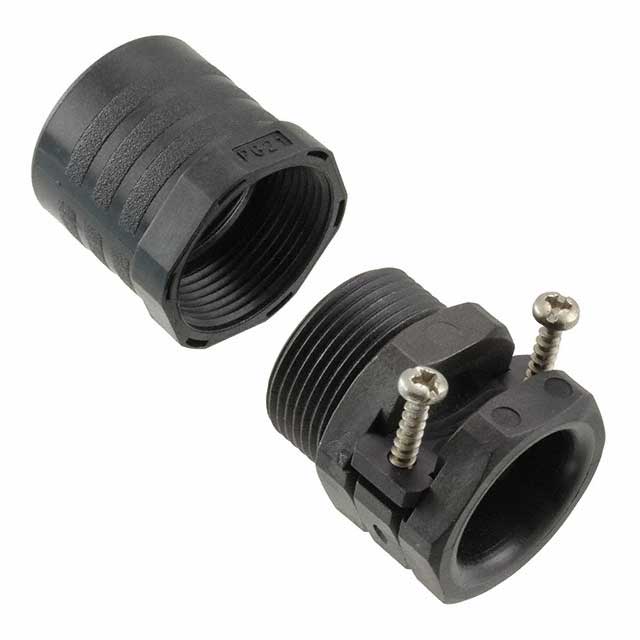

Amphenol Aerospace Operations CL103030	Clipper Unsealed Connectors	UL94 V-0	Black	Thermoplastic	Clamp Screws			0.31 in	0.827 in	3	180 °	PG21	Cable Clamp		IP40

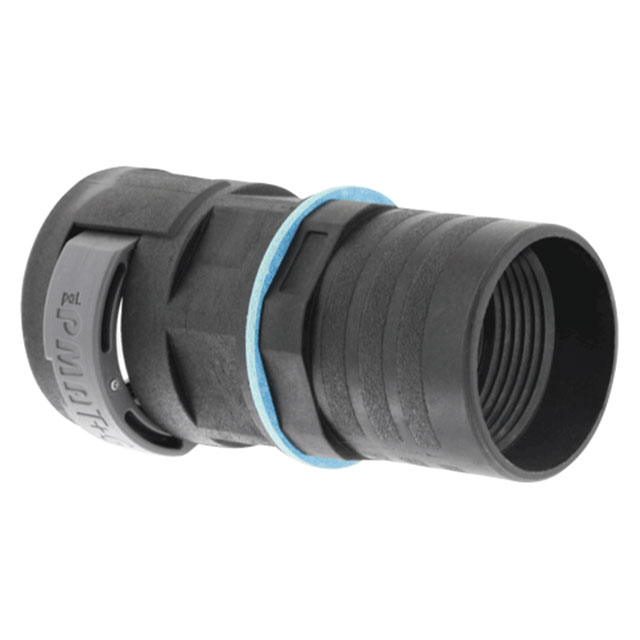

Amphenol Aerospace Operations CL103041	Flexible Conduit Systems	UL94 V-0	Black	Thermoplastic	Gasket	IP67	Dust Tight Waterproof			3	180 °	PG21	Backshell			0.91 in
Amphenol Aerospace Operations CL103040	Flexible Conduit Systems	UL94 V-0	Black	Thermoplastic	Gasket					3	180 °	PG21	Backshell		IP40	0.91 in
