903-585J Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

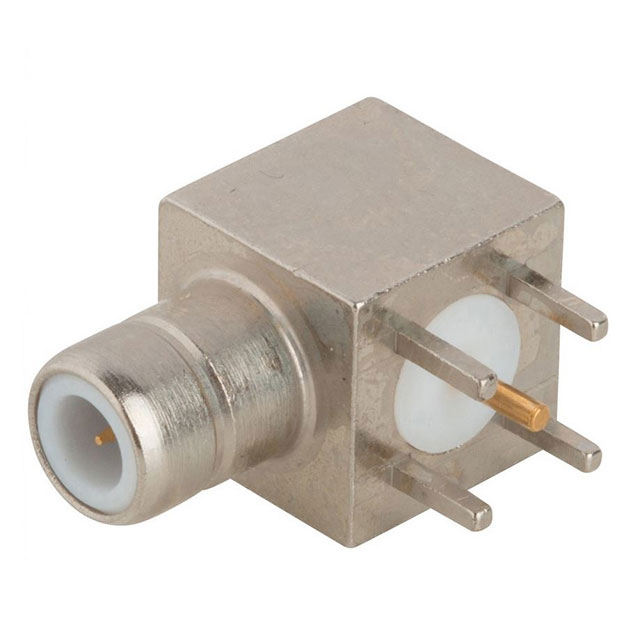

CONN SMB JACK R/A 75 OHM PCB
| Part | Insertion Loss | Body Material | Body Finish | Operating Temperature (Min) | Operating Temperature (Max) | Mating Cycles | Dielectric Material | Center Contact Plating | Impedance | Connector Style | Shield Termination | Number of Ports | Mounting Type | Fastening Type | Housing Color | Center Contact Material | Contact Termination | Frequency - Max | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 0.6 dB | Brass | Nickel | -65 °C | 165 °C | 500 cycles | Polytetrafluoroethylene (PTFE) | Gold | 75 Ohm | SMB | Solder | 1 | Right Angle Through Hole | Snap-On | Silver | Brass | Solder | 10 GHz | Jack Male Pin |
