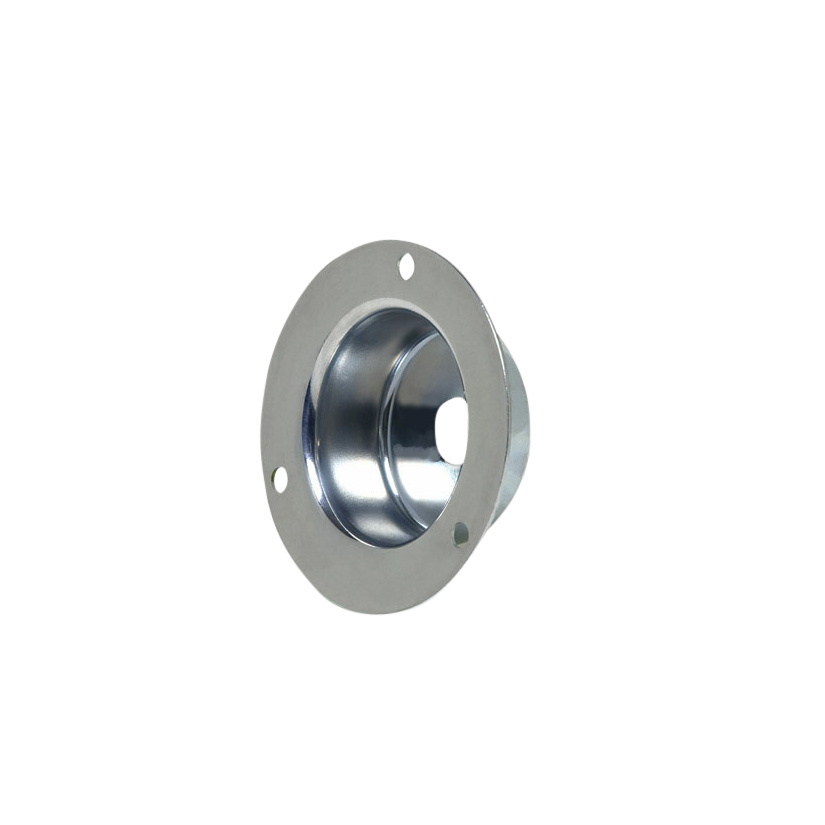

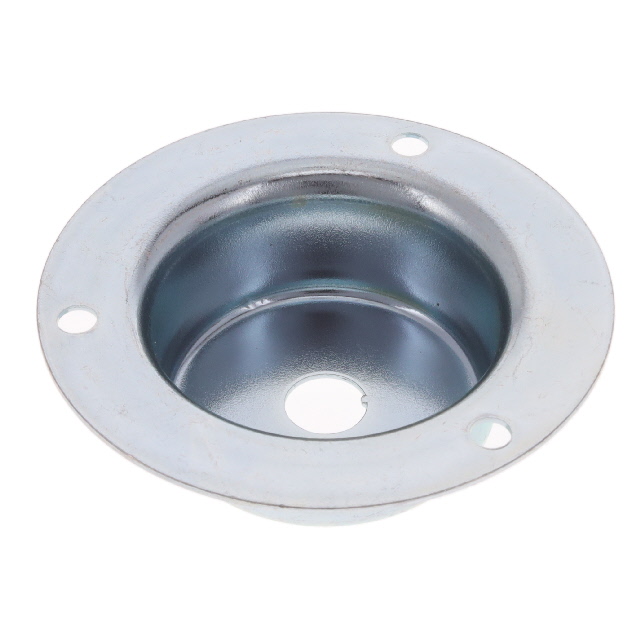

5543-15 Series

Faceplate only: does not include switch. Needs to be countersunk in a 2" (50.8mm) hole. 3 3/16" (81.0mm) diameter with three 7/32" (5.6mm) holes on a 2 3/4" (69.9mm) diameter circle. Requires a clearance depth of .890" (22.6mm), not including clearance for a switch. Switch guards help prevent accidental actuation of a toggle switch and protect it from damage. Typical uses: Switch is in a vulnerable position – like a light switch in a truck cargo section. Switch controls a vital function that must not be accidentally operated – like the hose return switch on an oil truck. Switch is important, but infrequently used – like an emergency switch.
