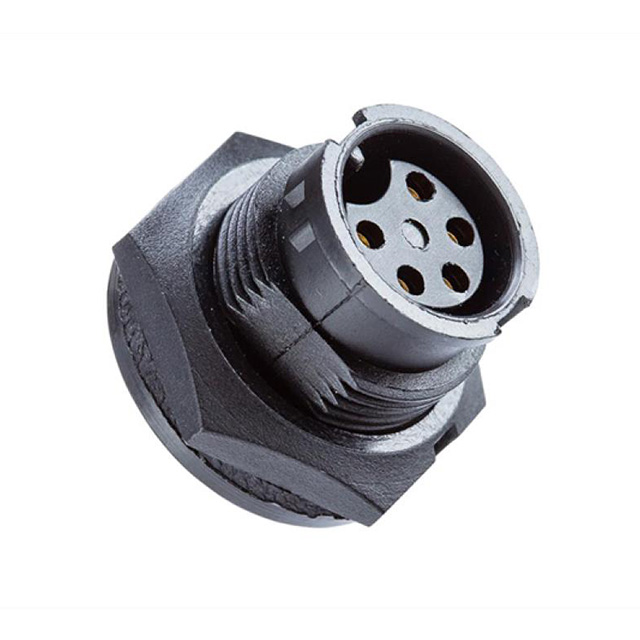

BB-02PMFP Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CERES, STANDARD SIZE, 10A, 02 PI
| Part | Ingress Protection Description | Ingress Protection IP Rating | Contact Material | Termination | Fastening Type | Orientation | Mounting Type | Shielding | Shell Size - Insert | Connector Type | Voltage Rating | Shell Material | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish - Mating | Number of Positions | Mounting Feature | Current Rating | Primary Material | Insert Material | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Dust Tight Waterproof | IP67 | Copper Alloy | Solder | Bayonet Lock | Keyed | Panel Mount Through Hole | Unshielded | B | Female Sockets Receptacle | 250 V | Glass Filled Nylon Polyamide (PA) | -40 °C | 105 °C | Gold | 2 | Bulkhead Front Side Nut | 10 A | Plastic | Glass Filled Nylon PA Polyamide | Black |
