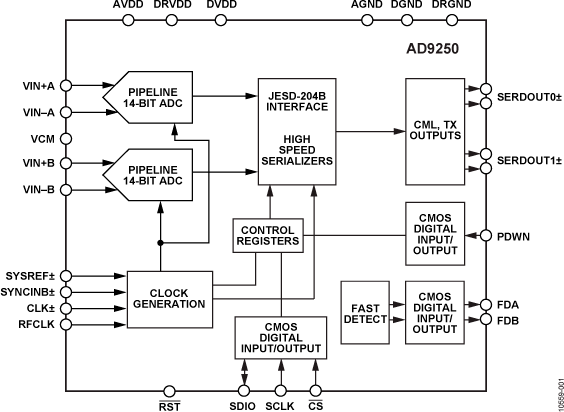

AD9250 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

2-CHANNEL DUAL ADC PIPELINED 170MSPS 14-BIT JESD204B 48-PIN LFCSP EP TRAY

Part	Ratio - ADC	Ratio - S/H	Number of Bits	Number of Inputs	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Number of A/D Converters	Mounting Type	Input Type	Architecture	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Configuration	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Data Interface	Reference Type	Sampling Rate (Per Second)	Package Width	Package Name	Package Length	Features	Supplied Contents	Contents	Input Voltage (Value)	Power (Typ)	Utilized IC / Part
Analog Devices Inc./Maxim Integrated AD9250BCPZ-170	1	1	14 bits	2	1.7 V	1.9 V	2 count	Surface Mount	Differential	Pipelined	1.9 V	1.7 V	S/H-ADC	48-WFQFN Exposed Pad CSP	-40 °C	85 °C	JESD204B	Internal	170 MHz	7 mm	48-LFCSP	7 mm	Simultaneous Sampling
Analog Devices Inc./Maxim Integrated AD9250BCPZRL7-170	1	1	14 bits	2	1.7 V	1.9 V	2 count	Surface Mount	Differential	Pipelined	1.9 V	1.7 V	S/H-ADC	48-WFQFN Exposed Pad CSP	-40 °C	85 °C	JESD204B	Internal	170 MHz	7 mm	48-LFCSP	7 mm	Simultaneous Sampling
Analog Devices Inc./Maxim Integrated AD9250-250EBZ			14 bits				2 count										Serial JESD204B SPI™		250 MHz					Board(s)	Board	1.75 Vpp	711 mW	AD9250
Analog Devices Inc./Maxim Integrated AD9250BCPZRL7-250	1	1	14 bits	2	1.7 V	1.9 V	2 count	Surface Mount	Differential	Pipelined	1.9 V	1.7 V	S/H-ADC	48-WFQFN Exposed Pad CSP	-40 °C	85 °C	JESD204B	Internal	250 MHz	7 mm	48-LFCSP	7 mm	Simultaneous Sampling
Analog Devices Inc./Maxim Integrated AD9250BCPZ-250	1	1	14 bits	2	1.7 V	1.9 V	2 count	Surface Mount	Differential	Pipelined	1.9 V	1.7 V	S/H-ADC	48-WFQFN Exposed Pad CSP	-40 °C	85 °C	JESD204B	Internal	250 MHz	7 mm	48-LFCSP	7 mm	Simultaneous Sampling
Analog Devices Inc./Maxim Integrated AD-FMCJESDADC1-EBZ			14 bits				2 count										Serial JESD204B SPI™		250 MHz					Board(s)	Board	1.75 Vpp	711 mW	AD9250
