ELVH-015G Series

Catalog

SENSOR 14.94PSIG 0.19"

Part	Voltage - Supply	Port Diameter	Port Gender	Port Feature	Termination Style	Output Type	Accuracy	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Pressure Type	Port Style	Operating Temperature (Max)	Operating Temperature (Min)	Package Length	Package Features	Package Name	Package Width	Mounting Type	Maximum Pressure	Features	Operating Pressure	Package / Case

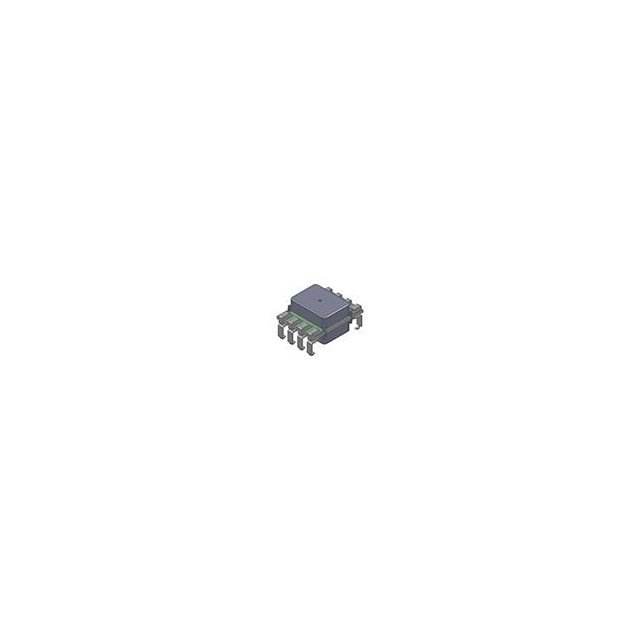

McGill Microwave Systems ELVH-015G-HAND-I-NAA5	5 VDC	0.19 "	Male	Tube	PC Pin	Analog Voltage	0.25 %	5.5 V	2.7 V	Gauge	Barbed	85 °C	-20 °C	0.524 in	Side Port	8-DIP	13.3 mm	Through Hole	30.02 PSI	Temperature Compensated	15 PSI
McGill Microwave Systems ELVH-015G-HRRD-I-NAB5	5 VDC	0.06 in	Male	Dual Tube	PC Pin	Analog Voltage	0.25 %	5.5 V	2.7 V	Gauge	Barbed	85 °C	-20 °C	0.504 in	Dual Ports Same Side	8-DIP	12.8 mm	Through Hole	30.02 PSI	Temperature Compensated	15 PSI
McGill Microwave Systems ELVH-015G-HANH-C-NAA4	3.3 V	0.19 "	Male	Tube	PC Pin	Analog Voltage	0.25 %	5.5 V	2.7 V	Gauge	Barbed	50 °C	0 °C					Through Hole	30.02 PSI	Temperature Compensated	15 PSI	4-SIP Side Port
McGill Microwave Systems ELVH-015G-HRRD-I-NAA5	5 VDC	0.06 in	Male	Dual Tube	PC Pin	Analog Voltage	0.25 %	5.5 V	2.7 V	Gauge	Barbed	85 °C	-20 °C	0.504 in	Dual Ports Same Side	8-DIP	12.8 mm	Through Hole	30.02 PSI	Temperature Compensated	15 PSI
McGill Microwave Systems ELVH-015G-HAND-C-NAA5	5 VDC	0.19 "	Male	Tube	PC Pin	Analog Voltage	0.25 %	5.5 V	2.7 V	Gauge	Barbed	50 °C	0 °C	0.524 in	Top Port	8-DIP	13.3 mm	Through Hole	30.02 PSI	Temperature Compensated	15 PSI
