A Series

Catalog

SENSOR CABLES / ACTUATOR CABLES CERES, MINI SIZE, PLASTIC, 2A, 06 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT, 2 POINTS LOCK, OVERMOLDED, LENGTH 5000MM, IP66

Part	Color	Usage	1st Connector Gender	1st Connector Orientation	1st Connector Mounting Type	Shielding	Cable Type	Length	1st Connector Shell Size - Insert	1st Connector Type	Assembly Configuration	2nd Connector Type	1st Connector Number of Positions	1st Connector Number of Positions Loaded	Ingress Protection Description	Ingress Protection IP Rating	Cable Material	Number of Positions	Shell Size - Insert	Termination	Mounting Type	Insert Material	Contact Material	Contact Finish - Mating	Shell Material	Primary Material	Connector Type	Orientation	Voltage Rating	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Shell Finish	Mounting Feature	Fastening Type	Features	Contact Type	Contact Termination	Insulation Material	Number of Rows	Material Flammability Rating
McGill Microwave Systems AU-06AMMM-LL6A05	Black	Industrial Environments	Male Pins	Keyed	Free Hanging (In-Line)	Shielded	Round	16.4 ft	A	Plug	Standard	Wire Leads	6 positions	All	Dust Tight Water Resistant	IP66	Polyvinyl Chloride (PVC)

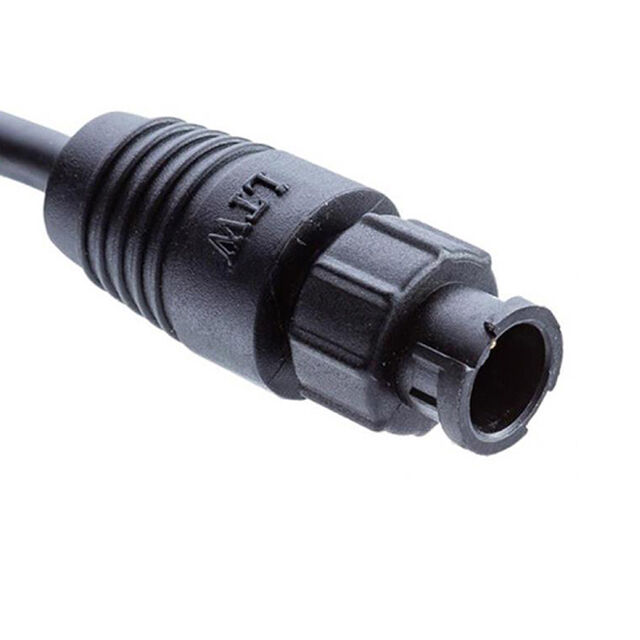

McGill Microwave Systems AU-05BMMM-LL7A02	Black	Industrial Environments	Male Pins	Keyed	Free Hanging (In-Line)	Shielded	Round	6.56 ft	A	Plug	Standard	Wire Leads	5 positions	All	Dust Tight Waterproof	IP67	Polyvinyl Chloride (PVC)
McGill Microwave Systems ASU-06PMMS-LS7002	Silver					Shielded									Dust Tight Waterproof	IP67		6	A	Solder	Panel Mount Through Hole	Glass Filled Nylon PA Polyamide	Copper Alloy	Gold	Zinc Alloy	Metal	Male Pins Receptacle	Keyed	250 V	2 A	-40 °C	105 °C	Nickel	Flange	Bayonet Lock
McGill Microwave Systems AD-03BMMM-LL7A02	Black	Industrial Environments	Male Pins	Keyed	Free Hanging (In-Line)	Shielded	Round	6.56 ft	A	Plug	Standard	Wire Leads	3 positions	All	Dust Tight Waterproof	IP67	Polyvinyl Chloride (PVC)
McGill Microwave Systems AT16-18SC-SR02	Black																	18			Free Hanging (In-Line)						Plug				-55 °C	125 °C			Latch Lock	Sealed Strain Relief	Female Socket	Crimp	Thermoplastic	3
McGill Microwave Systems ASD-03PMMS-LS7001	Silver					Shielded									Dust Tight Waterproof	IP67		2	A	Solder	Panel Mount Through Hole	Glass Filled Nylon PA Polyamide	Copper Alloy	Gold	Zinc Alloy	Metal	Male Pins Receptacle	Keyed	250 V	5 A	-40 °C	105 °C	Nickel	Flange	Bayonet Lock						UL94 V-0
McGill Microwave Systems AU-04BFFM-SR6A05	Black	Industrial Environments	Female Sockets	Keyed	Free Hanging (In-Line)	Shielded	Round	16.4 ft	A	Receptacle Right Angle	Standard	Wire Leads	4 positions	All	Dust Tight Water Resistant	IP66	Polyvinyl Chloride (PVC)
McGill Microwave Systems AU-04BFFM-LL7A02	Black	Industrial Environments	Female Sockets	Keyed	Free Hanging (In-Line)	Unshielded	Round	6.56 ft	A	Receptacle	Standard	Wire Leads	4 positions	All	Dust Tight Waterproof	IP67	Polyvinyl Chloride (PVC)
McGill Microwave Systems AU-06PMMM-LL7A02	Black	Industrial Environments	Male Pins	Keyed	Free Hanging (In-Line)	Shielded	Round	6.56 ft	A	Plug	Standard	Wire Leads	6 positions	All	Dust Tight Waterproof	IP67	Polyvinyl Chloride (PVC)
McGill Microwave Systems AT16-18PD-SR02	Black																	18			Free Hanging (In-Line)						Receptacle				-55 °C	125 °C			Latch Holder	Sealed Strain Relief	Male Pin	Crimp	Thermoplastic	3
