V716 Series

Catalog

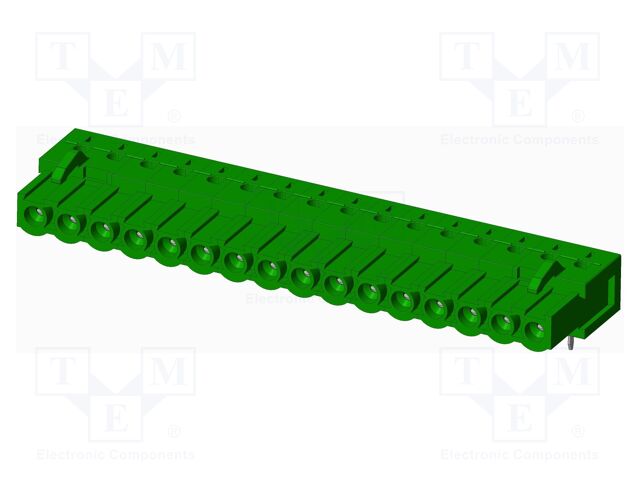

TERM BLOCK HDR 16POS VERT 3.81MM

Part	Current - UL	Voltage - UL	Number of Levels	Contact Mating Finish	Header Orientation	Operating Temperature (Min)	Operating Temperature (Max)	Features	Pitch	Positions Per Level	Termination Style	Mounting Type	Type	Number of Positions	Color	Material Flammability Rating	Housing Material	Contact Tail Length	Insulation Height	Contact Material	Header Orientation Angle
McGill Microwave Systems V71632500000G	8 A	300 V	1	Tin	Vertical	-40 °C	115 °C	Mating Flange	0.15 in	16	Solder	Through Hole	Female Sockets Header	16	Green	UL94 V-0	Thermoplastic	0.134 in	0.571 in	Phosphor Bronze
McGill Microwave Systems V71651510000G	20 A	300 V	1	Tin	Right Angle	-40 °C	115 °C	Retention Latches	5.08 mm	16	Solder	Through Hole	Female Sockets Header	16	Green	UL94 V-0	Thermoplastic	0.138 in		Copper	90 °
McGill Microwave Systems V71601510000G	20 A	300 V	1	Tin	Right Angle	-40 °C	115 °C	Retention Latches	0.3 in	16	Solder	Through Hole	Female Sockets Header	16	Green	UL94 V-0	Thermoplastic	0.138 in		Copper	90 °
McGill Microwave Systems V71601500000G	20 A	300 V	1	Tin	Vertical	-40 °C	115 °C	Retention Latches	0.3 in	16	Solder	Through Hole	Female Sockets Header	16	Green	UL94 V-0	Thermoplastic	0.138 in	0.748 in	Copper
McGill Microwave Systems V71652510000G	20 A	300 V	1	Tin	Right Angle	-40 °C	115 °C	Mating Flange Retention Latches	5.08 mm	16	Solder	Through Hole	Female Sockets Header	16	Green	UL94 V-0	Thermoplastic	0.138 in		Copper	90 °
McGill Microwave Systems V71671510000G	10 A	300 V	1	Tin	Right Angle	-40 °C	115 °C	Retention Latches	0.197 in	16	Solder	Through Hole	Female Sockets Header	16	Green	UL94 V-0	Thermoplastic	0.138 in		Phosphor Bronze	90 °
McGill Microwave Systems V71671500000G	10 A	300 V	1	Tin	Vertical	-40 °C	115 °C	Retention Latches	0.197 in	16	Solder	Through Hole	Female Sockets Header	16	Green	UL94 V-0	Thermoplastic	0.138 in	0.748 in	Phosphor Bronze
