647479 Series

Catalog

08P MTA156 CONN ASSY 18AWG ORA

Part	Features	Contact Finish	Mounting Type	Number of Positions	Connector Type	Pitch	Wire Gauge	Cable Termination	Wire Type	Contact Finish Thickness	Contact Type	Number of Rows	Fastening Type	Color

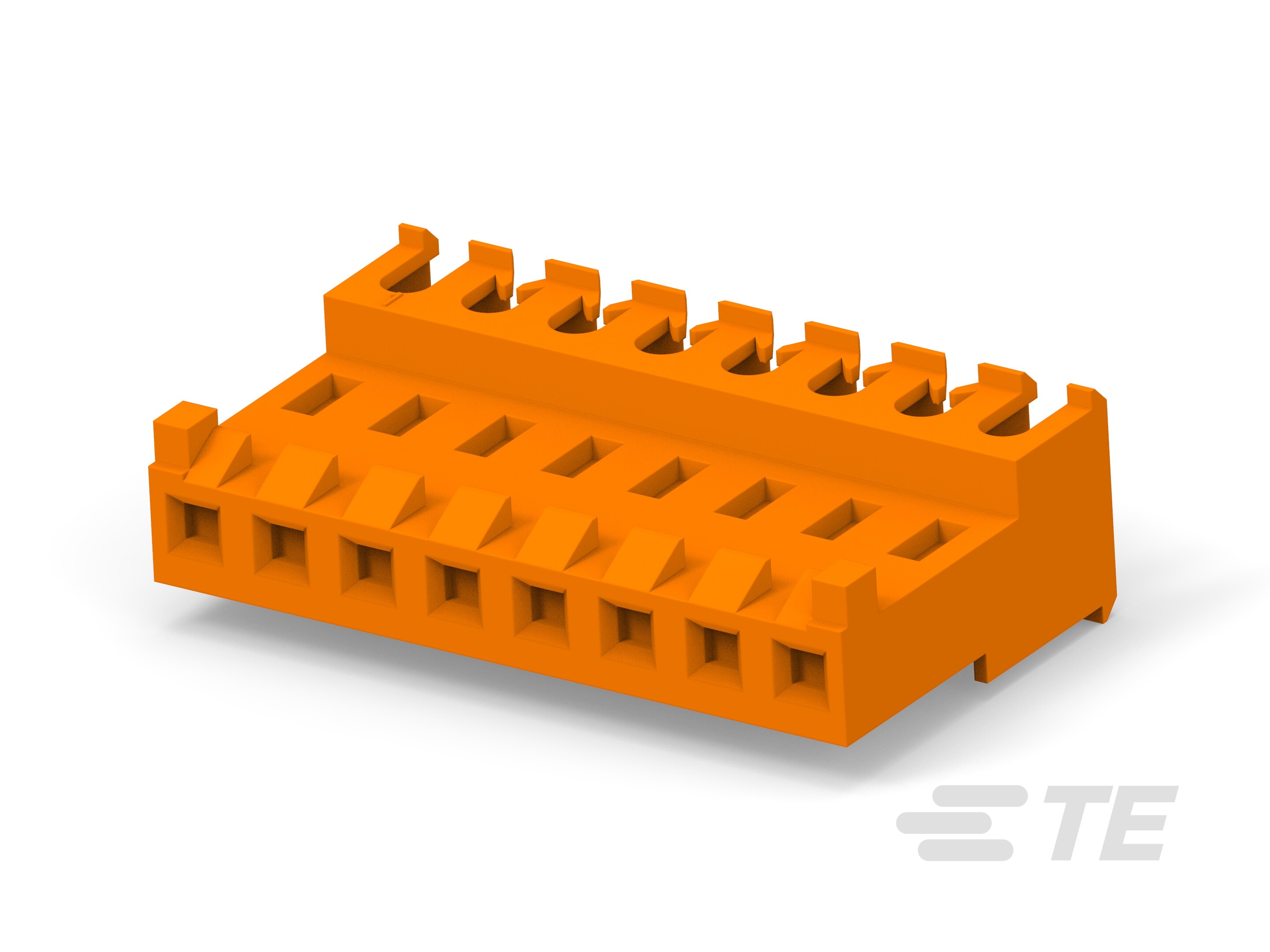

TE Connectivity AMP Connectors 3-647479-8	Feed Through Polarizing Key	Gold	Free Hanging (In-Line)	8	Receptacle	0.156 in	18 AWG	IDC	Discrete Ribbon Cable	15 µin	Female Socket	1	Locking Ramp	Orange
TE Connectivity AMP Connectors 3-647479-3	Feed Through Polarizing Key	Gold	Free Hanging (In-Line)	3	Receptacle	0.156 in	18 AWG	IDC	Discrete Ribbon Cable	15 µin	Female Socket	1	Locking Ramp	Orange
TE Connectivity AMP Connectors 647479-2	Feed Through Polarizing Key	Gold	Free Hanging (In-Line) Right Angle	2	Receptacle	0.156 in	18 AWG	IDC	Discrete Ribbon Cable	30 µin	Female Socket	1	Locking Ramp	Orange

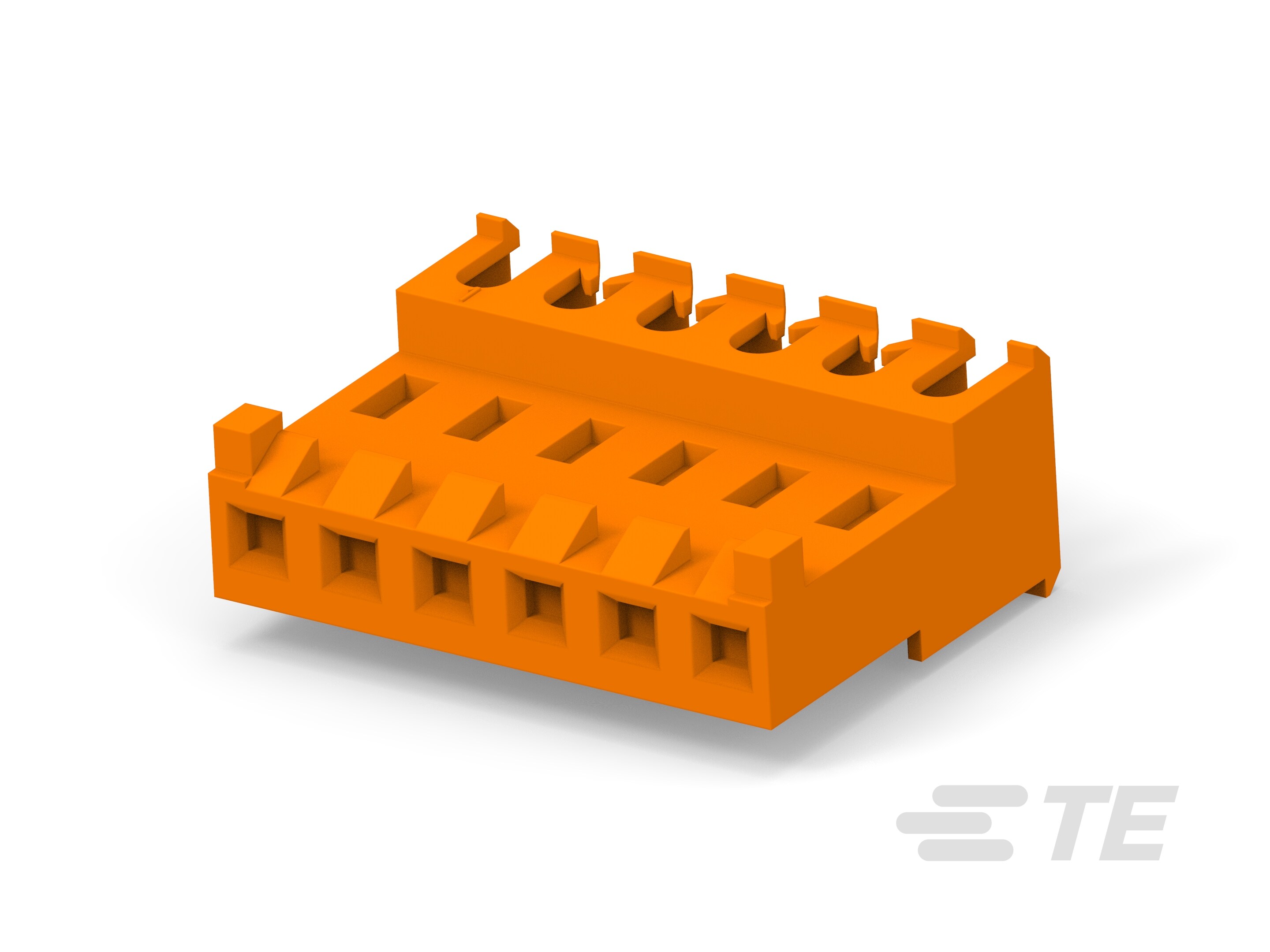

TE Connectivity AMP Connectors 3-647479-6	Feed Through Polarizing Key	Gold	Free Hanging (In-Line)	6	Receptacle	0.156 in	18 AWG	IDC	Discrete Ribbon Cable	15 µin	Female Socket	1	Locking Ramp	Orange
TE Connectivity AMP Connectors 3-647479-7	Feed Through Polarizing Key	Gold	Free Hanging (In-Line)	7	Receptacle	0.156 in	18 AWG	IDC	Discrete Ribbon Cable	15 µin	Female Socket	1	Locking Ramp	Orange
TE Connectivity AMP Connectors 3-647479-9	Feed Through Polarizing Key	Gold	Free Hanging (In-Line)	9	Receptacle	0.156 in	18 AWG	IDC	Discrete Ribbon Cable	15 µin	Female Socket	1	Locking Ramp	Orange
