42168 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

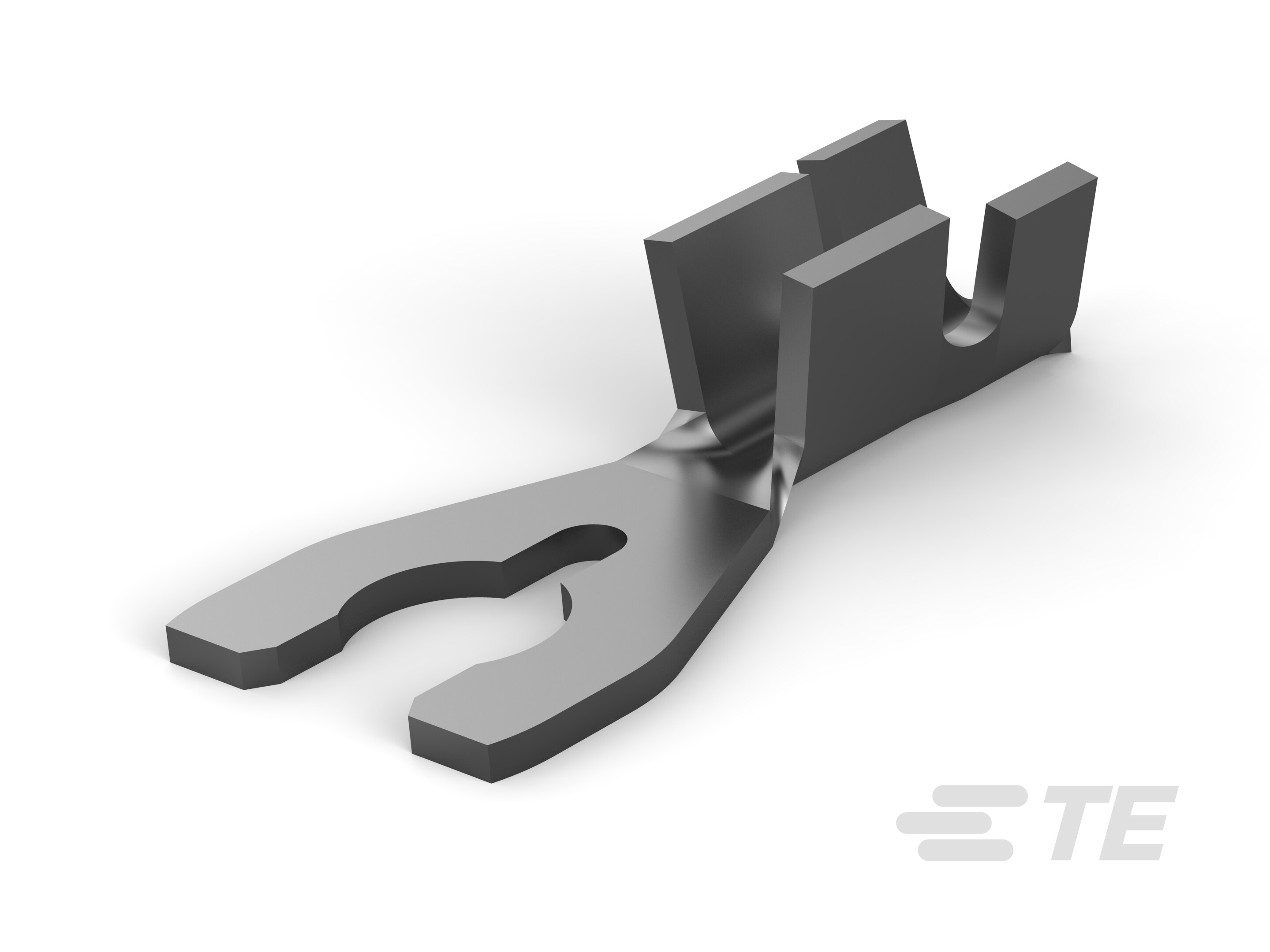

SPRING SPADE TERMINAL 18-14 AWG TPBR
| Part | Terminal Type | Length - Overall | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Mounting Type | Termination | Insulation | Stud/Tab Size | Contact Material | Width - Outer Edges | Contact Finish | Tongue Inside Opening | Insulation Diameter (Min) | Insulation Diameter (Max) | Length - Ring Center to Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Snap Spring | 0.745 in | 18 AWG | 14 AWG | Free Hanging (In-Line) | Crimp | Non-Insulated | 8 Stud | Brass | 0.343 in | Tin | 0.171 in | 0.1 in | 0.14 in | 0.312 in |
