XCVU095 Series

Catalog

IC FPGA 832 I/O 2104FCBGA

Part	Mounting Type	Number of Logic Elements/Cells	Package / Case	Number of I/O	Number of LABs/CLBs	Operating Temperature (Max)	Operating Temperature (Min)	Total RAM Bits	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Package Width	Package Name	Package Length	For Use With/Related Products	Suggested Programming Environment	Interconnect System	Type	Contents	Platform	Utilized IC / Part	P/N Breakdown
AMD / Xilinx XCVU095-2FFVA2104E	Surface Mount	1176000	2104-BBGA FCBGA	832	67200	100 °C	0 °C	62259200 bits	0.922 V	0.979 V	47.5 mm	2104-FCBGA	47.5 mm
AMD / Xilinx XCVU095-2FFVD1517E	Surface Mount	1176000	1517-BBGA FCBGA	338	67200	100 °C	0 °C	62259200 bits	0.922 V	0.979 V	40 mm	1517-FCBGA	40 mm
AMD / Xilinx EK-U1-VCU108-ES-G														XCVU095	Vivado	FMC Pmod	FPGA	Board Cable Power Supply	Virtex UltraScale FPGA VCU108 ES PCIe Card	XCVU095
AMD / Xilinx XCVU095-2FFVC2104I	Surface Mount	1176000	2104-BBGA FCBGA	416	67200	100 °C	-40 °C	62259200 bits	0.922 V	0.979 V	47.5 mm	2104-FCBGA	47.5 mm
AMD / Xilinx XCVU095-2FFVB1760I	Surface Mount	1176000	1760-BBGA FCBGA	702	67200	100 °C	-40 °C	62259200 bits	0.922 V	0.979 V	42.5 mm	1760-FCBGA	42.5 mm

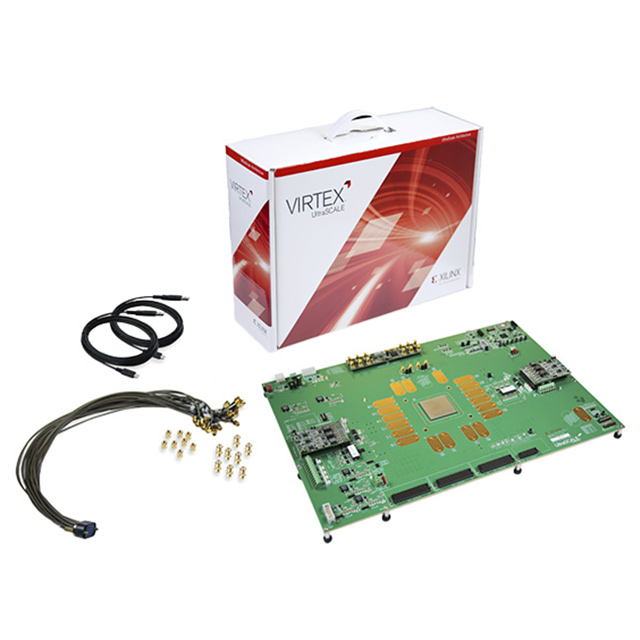

AMD / Xilinx CK-U1-VCU1287-G-J														XCVU095	Vivado	FMC	FPGA	Board Cable(s) - Power Supply Not Included -	Virtex UltraScale FPGA VCU1287 Japan	XCVU095	J = Japan version does not ship with a power supply

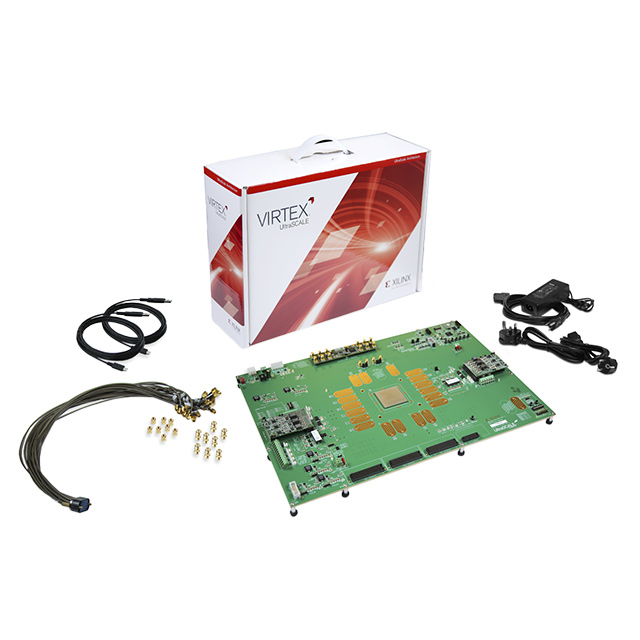

AMD / Xilinx CK-U1-VCU1287-G														XCVU095	Vivado	FMC	FPGA	Board Cable Power Supply	Virtex UltraScale FPGA VCU1287	XCVU095
AMD / Xilinx XCVU095-2FFVC2104E	Surface Mount	1176000	2104-BBGA FCBGA	416	67200	100 °C	0 °C	62259200 bits	0.922 V	0.979 V	47.5 mm	2104-FCBGA	47.5 mm
AMD / Xilinx XCVU095-H1FFVC1517E	Surface Mount	1176000	1517-BBGA FCBGA	520	67200	100 °C	0 °C	62259200 bits	0.922 V	1.03 V	40 mm	1517-FCBGA	40 mm
